C13510.0

C13510.0

SKU DOR5984587
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals Possible Use: M - Stainless Steel K - Cast Iron S - High Temperature Alloys

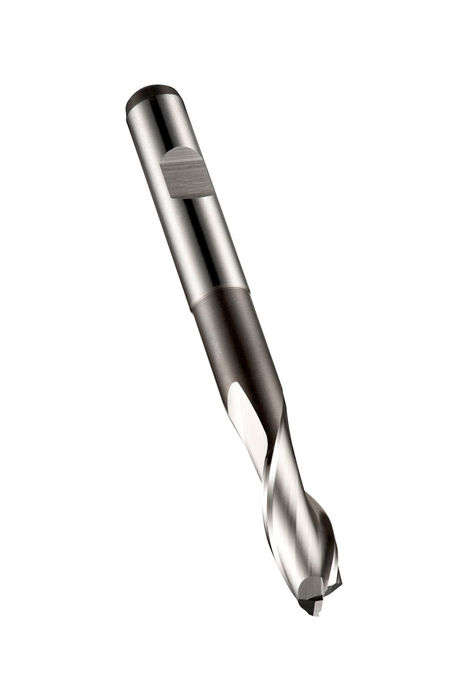

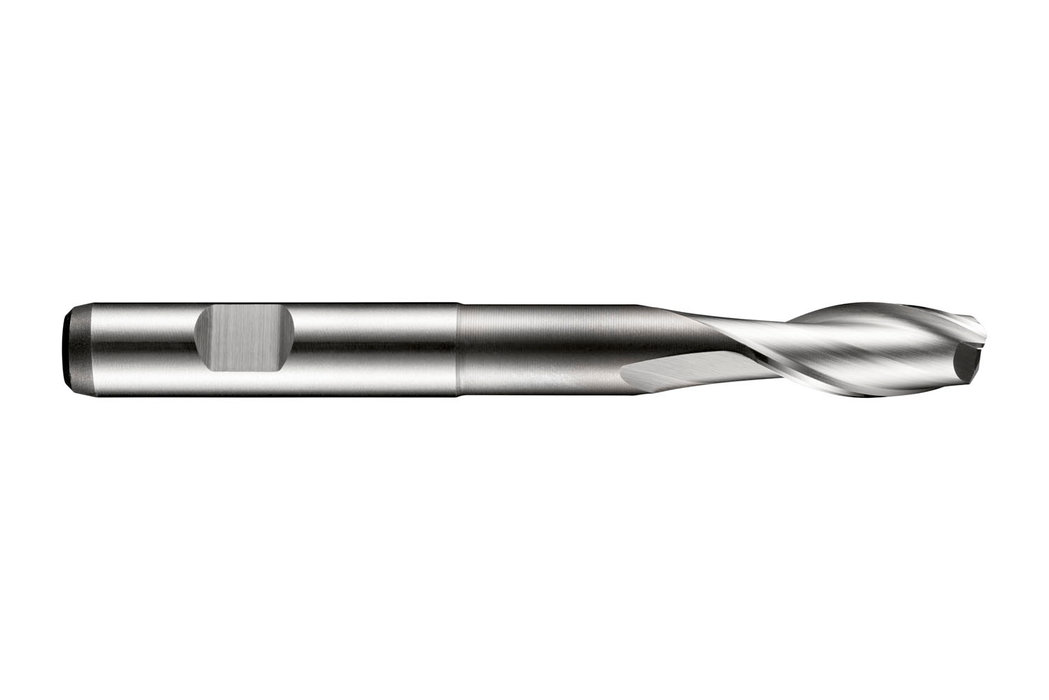

Short series slot drill with 2 flutes, diameter 10mm with 22mm length of cut, 95mm overall length and 54.5mm reach with neck relief, according to DORMER standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for slot milling in free machining steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$52.86 - $52.86
$52.86
$52.86 - $52.86
$52.86
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 3.7402

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Shank: Weldon shank DIN 1835B

Grade: Bright

Cutting Edge Count: 2

EDP: 57490

EAN: 7320760057490

MFG Part Number: 5984587
