C92224.0

C92224.0

SKU DOR5985128
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys

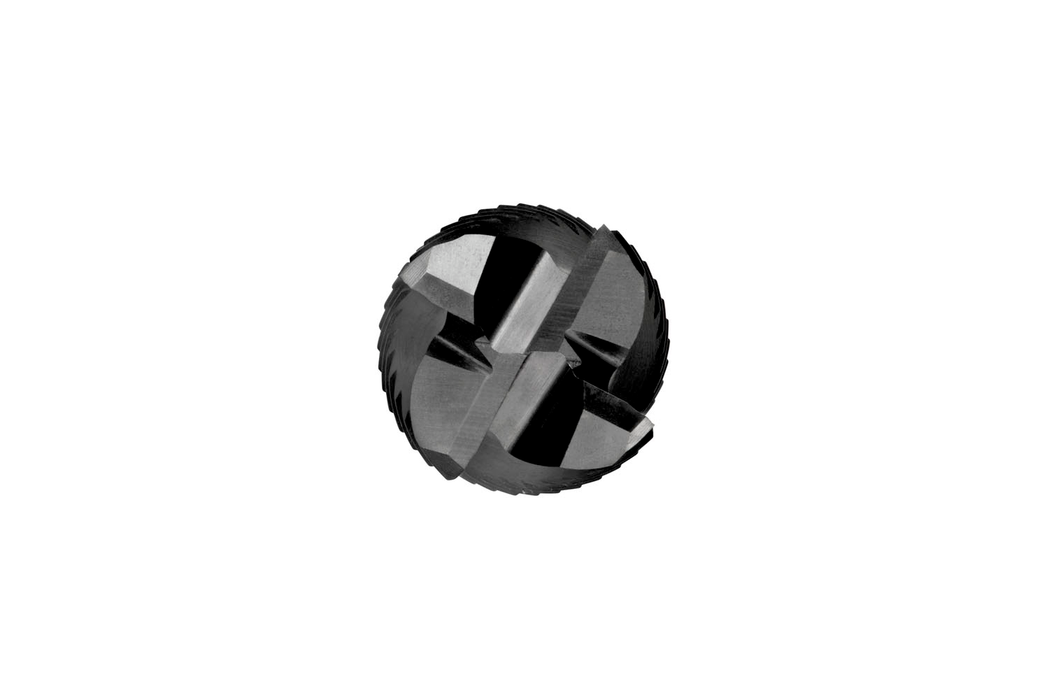

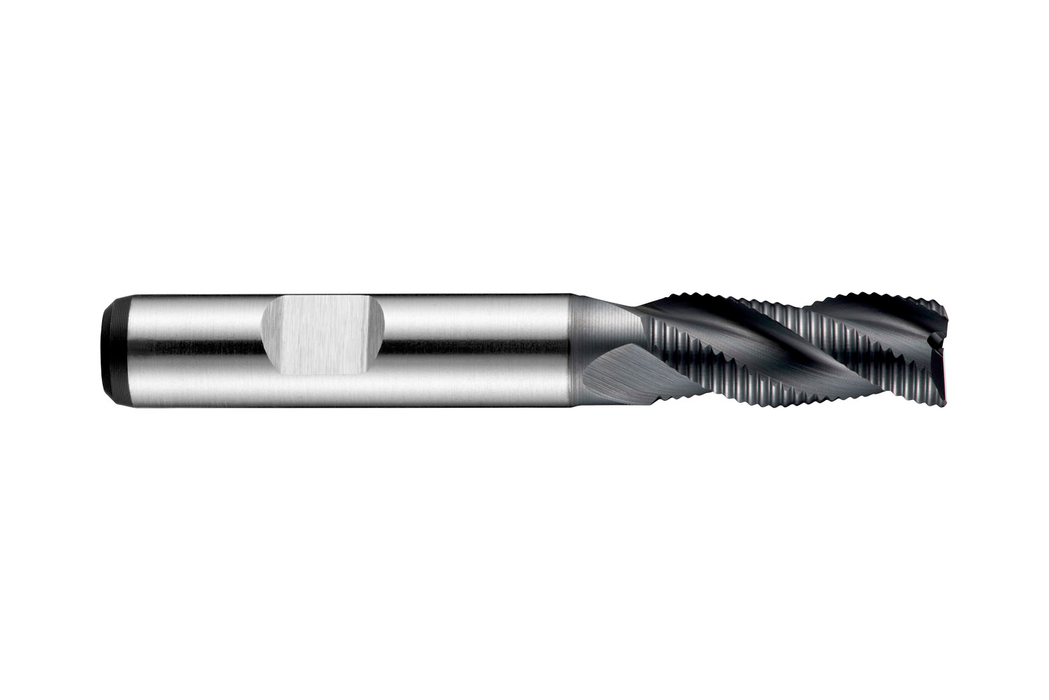

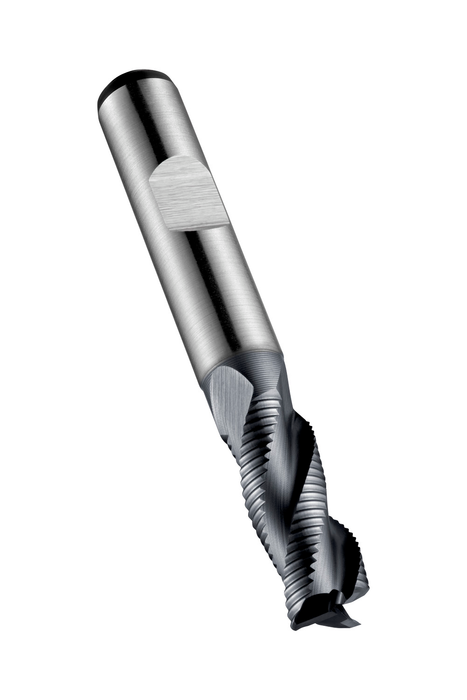

Short series roughing end mill with HRA asymetrical fine pitch profile and 4 flutes, diameter 24mm with 45mm length of cut, 121mm overall length and 64.5mm reach with neck relief, according to DIN 844 K standard with a 25mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$357.00 - $357.00
$357.00
$357.00 - $357.00
$357.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

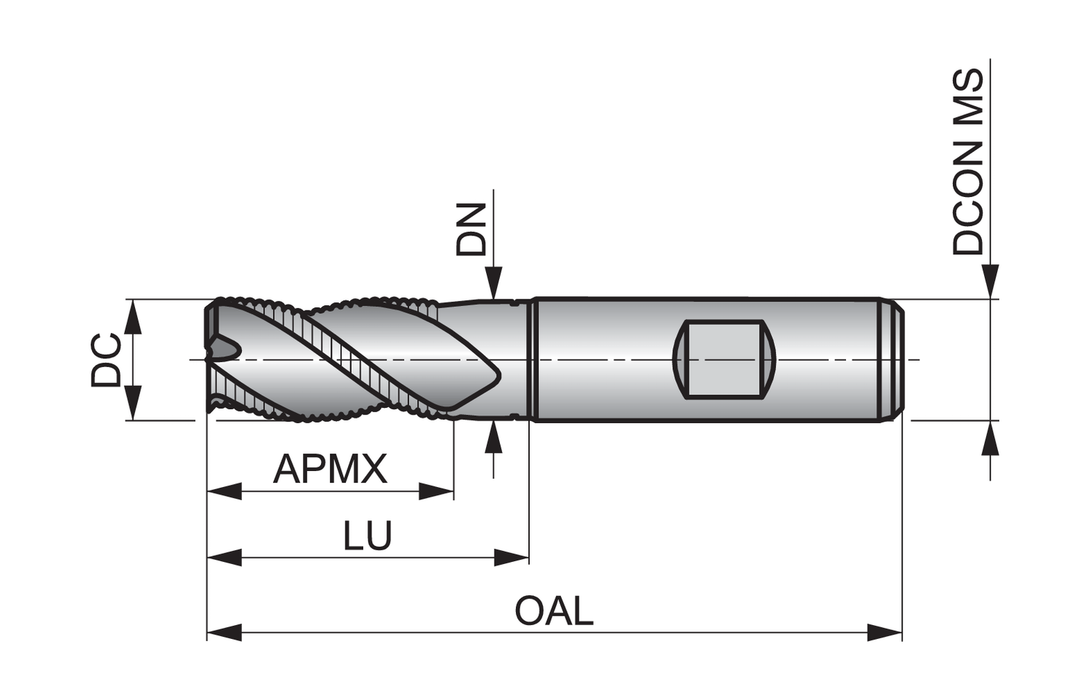

Material: HSS-E-PM

Cutting Diameter - in (DC): 0.9449

Cutting Diameter - mm (DC): 24.0

Overall Length (OAL): 4.7638

Connetion Diameter: 0.9843

Max. Depth of Cut: 1.7717

Shank: Weldon shank DIN 1835B

Grade: ALCRONA

Cutting Edge Count: 4

EDP: 76446

EAN: 7320760076446

MFG Part Number: 5985128
