C70015.0

C70015.0

SKU DOR5985395
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys

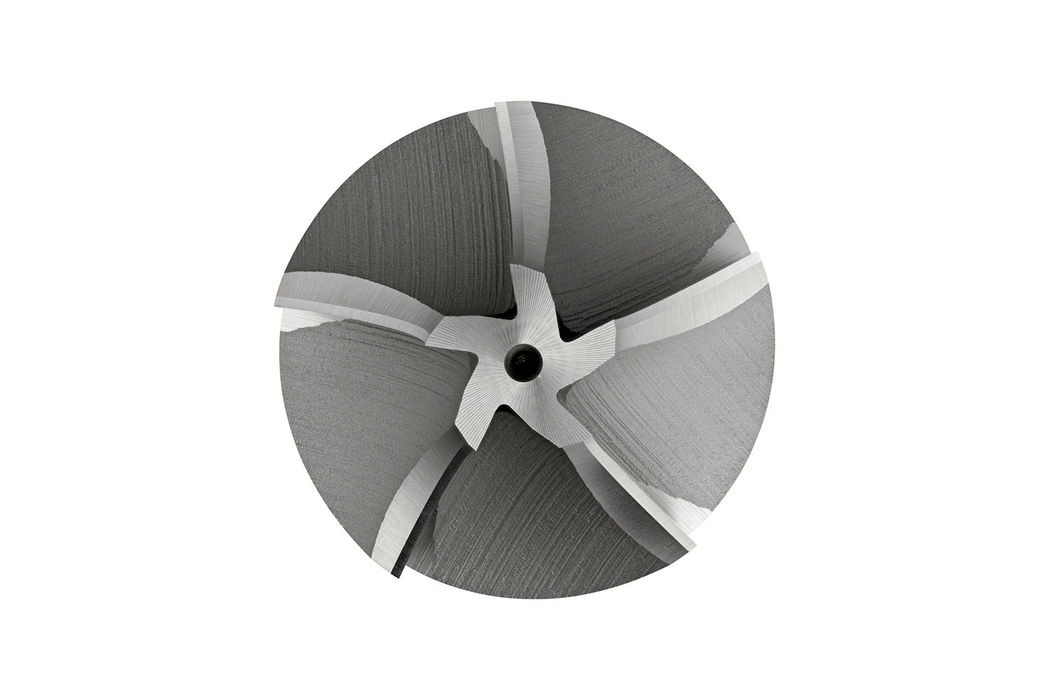

Extra short series corner rounding cutter with 5 flutes, diameter 48mm with 105mm overall length and 15mm profile radii, according to DORMER standard with a 25mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$592.53 - $592.53
$592.53
$592.53 - $592.53
$592.53
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Max Cut Diameter: 1.89

Overall Length (OAL): 4.1339

Connetion Diameter: 0.9843

Shank: Weldon shank DIN 1835B

Grade: Bright

Corner Radius - in: 0.5906

Corner Radius - mm: 15

Cutting Edge Count: 5

EDP: 127049

EAN: 7320760127049

MFG Part Number: 5985395
