C9087.0

C9087.0

SKU DOR5985701
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys

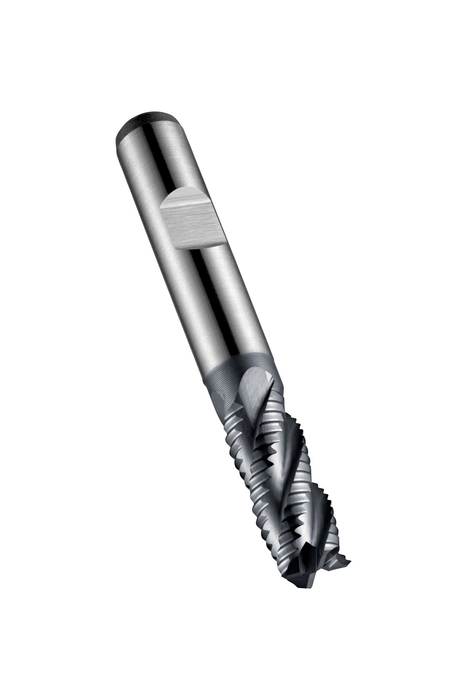

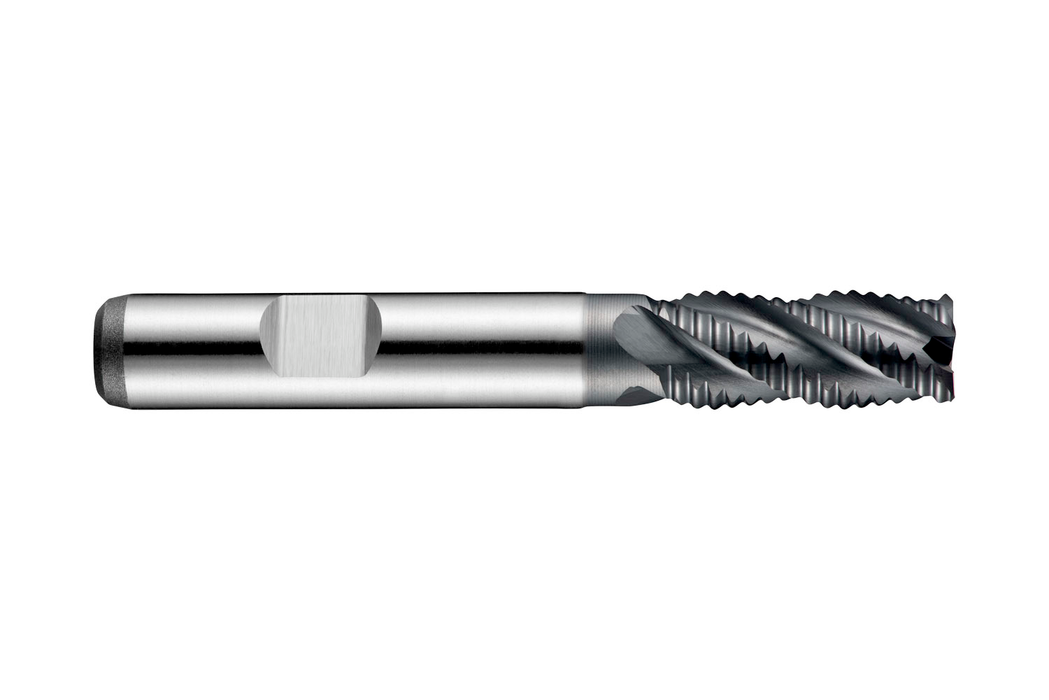

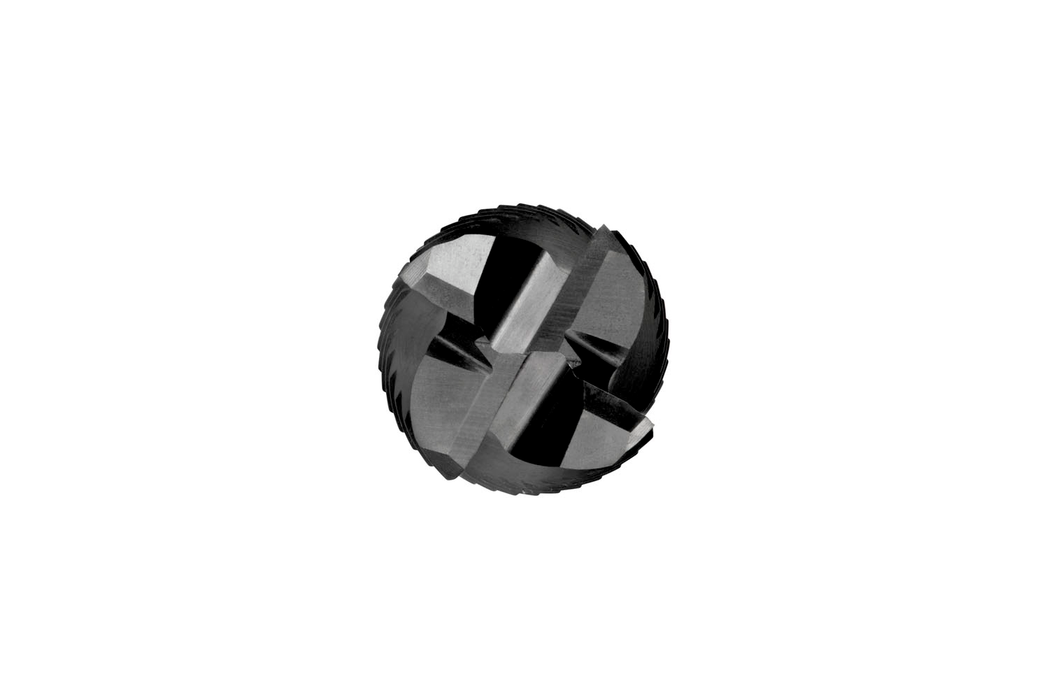

Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7mm with 16mm length of cut and 66mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$94.80 - $94.80
$94.80
$94.80 - $94.80
$94.80
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

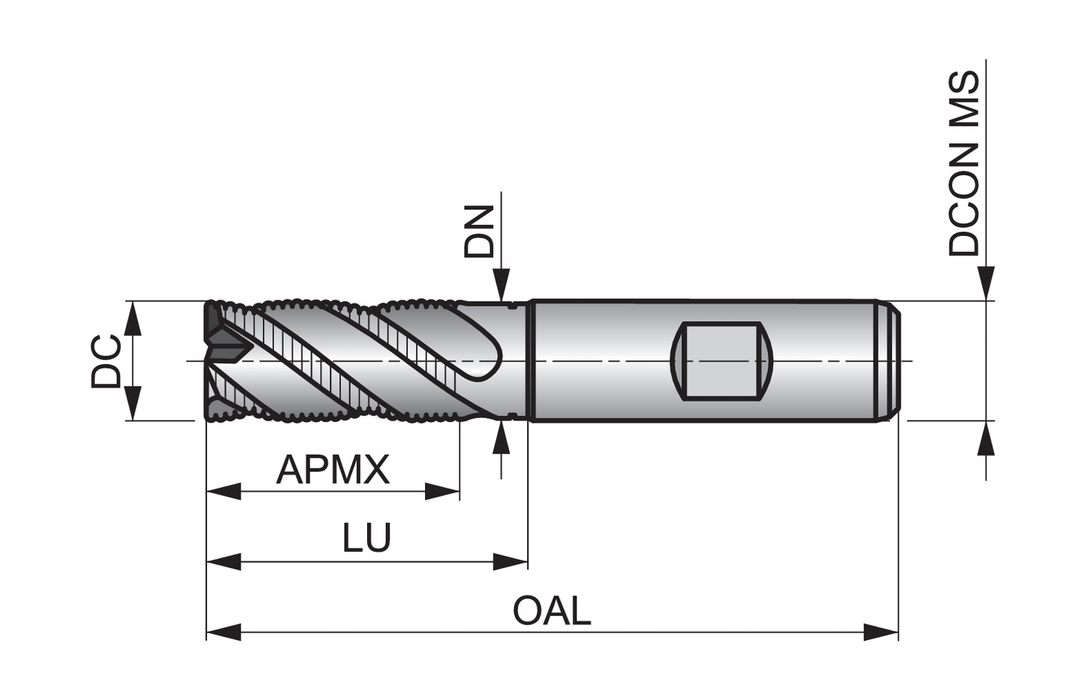

Cutting Diameter - in (DC): 0.2756

Cutting Diameter - mm (DC): 7.0

Overall Length (OAL): 2.5984

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.6299

Shank: Weldon shank DIN 1835B

Grade: ALCRONA

Cutting Edge Count: 4

EDP: 346181

EAN: 7320760346181

MFG Part Number: 5985701
