C92025.0

C92025.0

SKU DOR5985744
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys

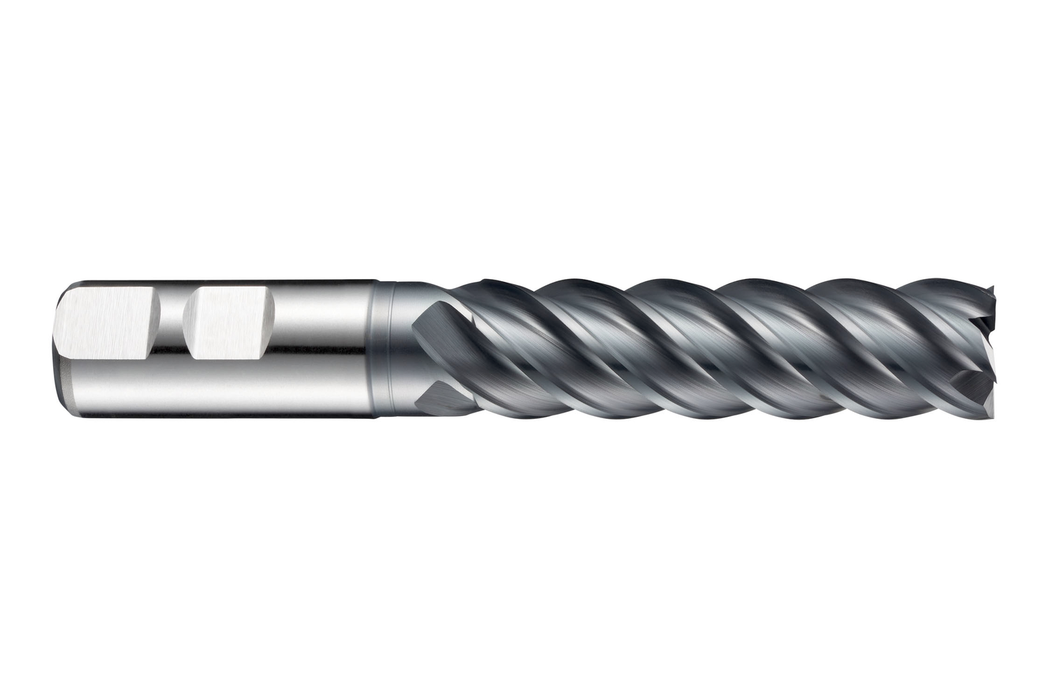

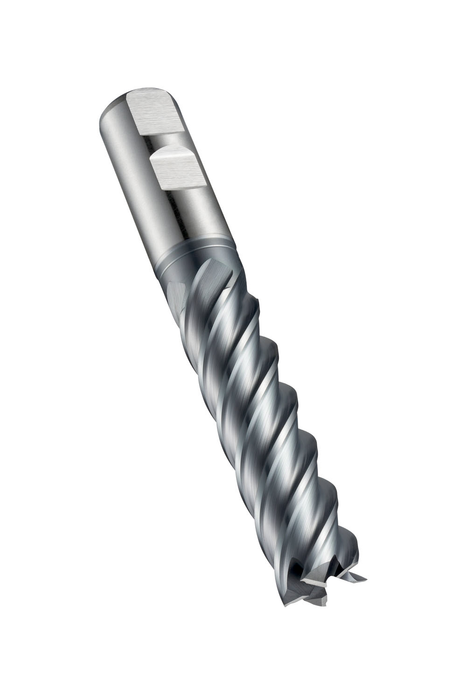

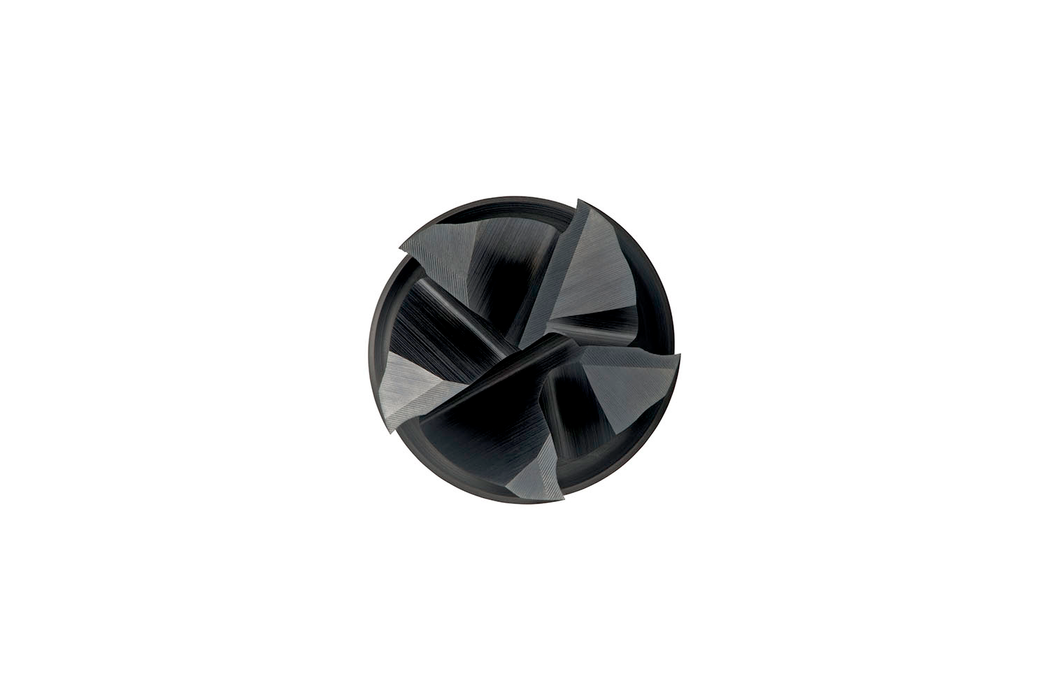

Long series end mill with 5 flutes, diameter 25mm with 90mm length of cut, 166mm overall length and 109.5mm reach with neck relief, according to DIN 844 L standard with a 25mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$342.00 - $342.00
$342.00
$342.00 - $342.00
$342.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

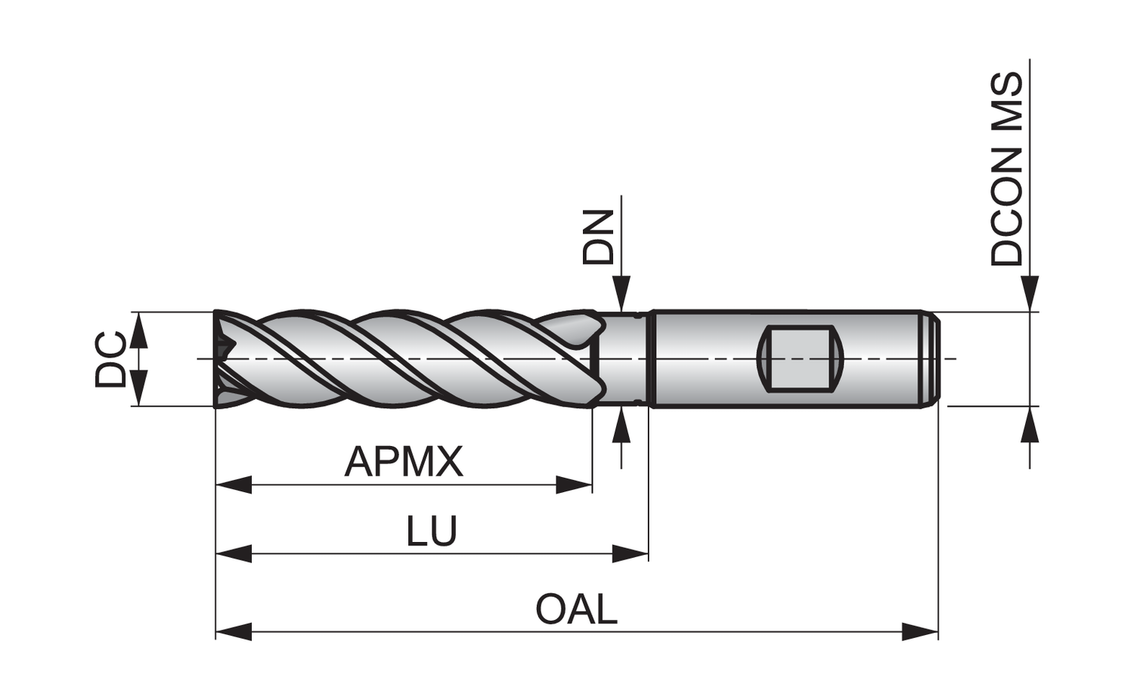

Material: HSS-E-PM

Cutting Diameter - in (DC): 0.9843

Cutting Diameter - mm (DC): 25.0

Overall Length (OAL): 6.5354

Connetion Diameter: 0.9843

Max. Depth of Cut: 3.5433

Shank: Weldon shank DIN 1835B

Grade: ALCRONA

Cutting Edge Count: 5

EDP: 76200

EAN: 7320760076200

MFG Part Number: 5985744
