C90811.0

C90811.0

SKU DOR5985834
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys

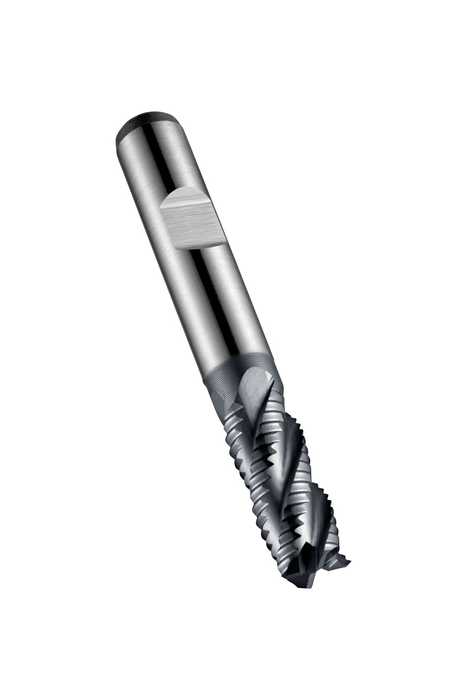

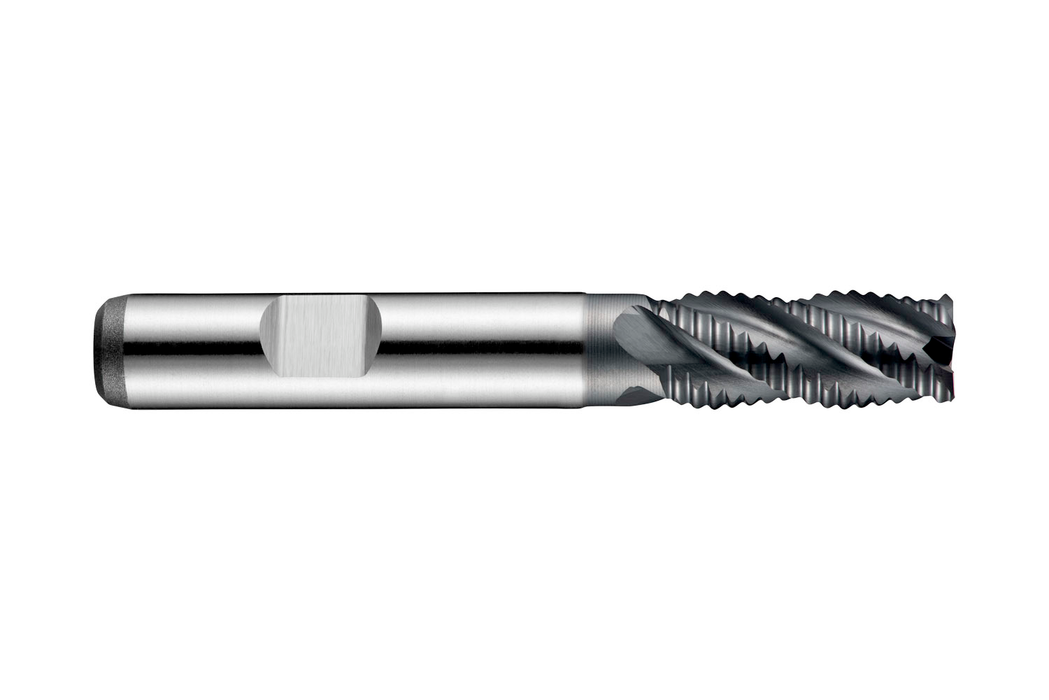

Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11mm with 22mm length of cut and 79mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$123.00 - $123.00
$123.00
$123.00 - $123.00
$123.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

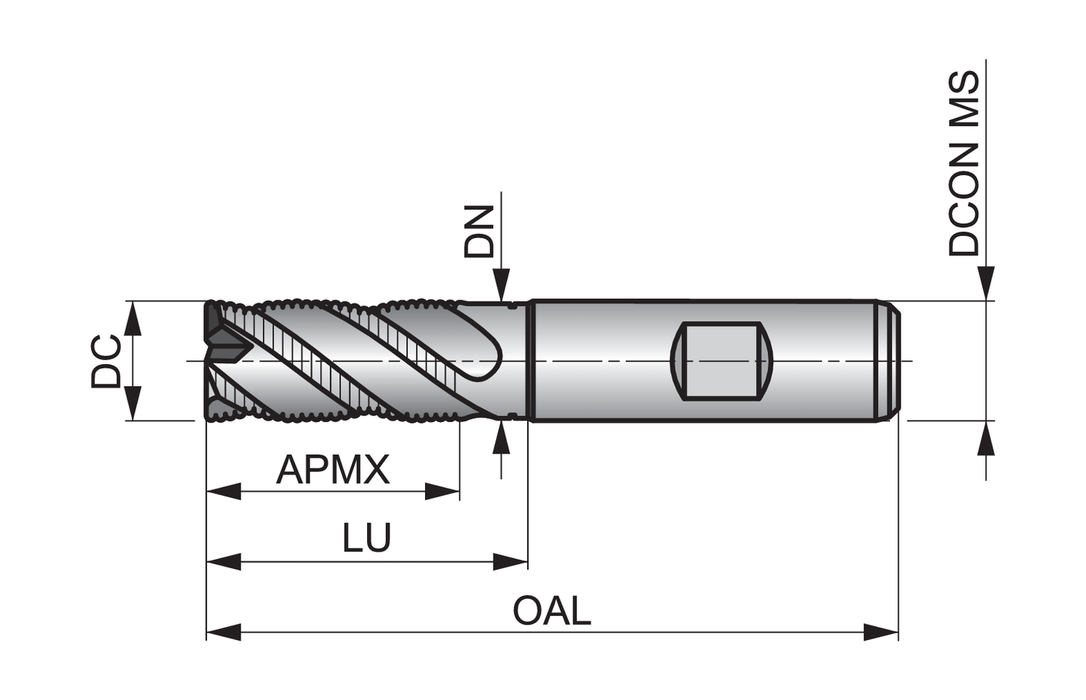

Cutting Diameter - in (DC): 0.4331

Cutting Diameter - mm (DC): 11.0

Overall Length (OAL): 3.1102

Connetion Diameter: 0.4724

Max. Depth of Cut: 0.8661

Shank: Weldon shank DIN 1835B

Grade: ALCRONA

Cutting Edge Count: 4

EDP: 346204

EAN: 7320760346204

MFG Part Number: 5985834
