CCGT 2.521F-AL:T0315

CCGT 2.521F-AL:T0315

SKU DOR6756213
by Dormer Pramet
Primary Use: N - Non-Ferrous Metals

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05 - N20, for fine to heavy machining of non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$0
$15.61 - $15.61
$15.61
$15.61 - $15.61
$15.61
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

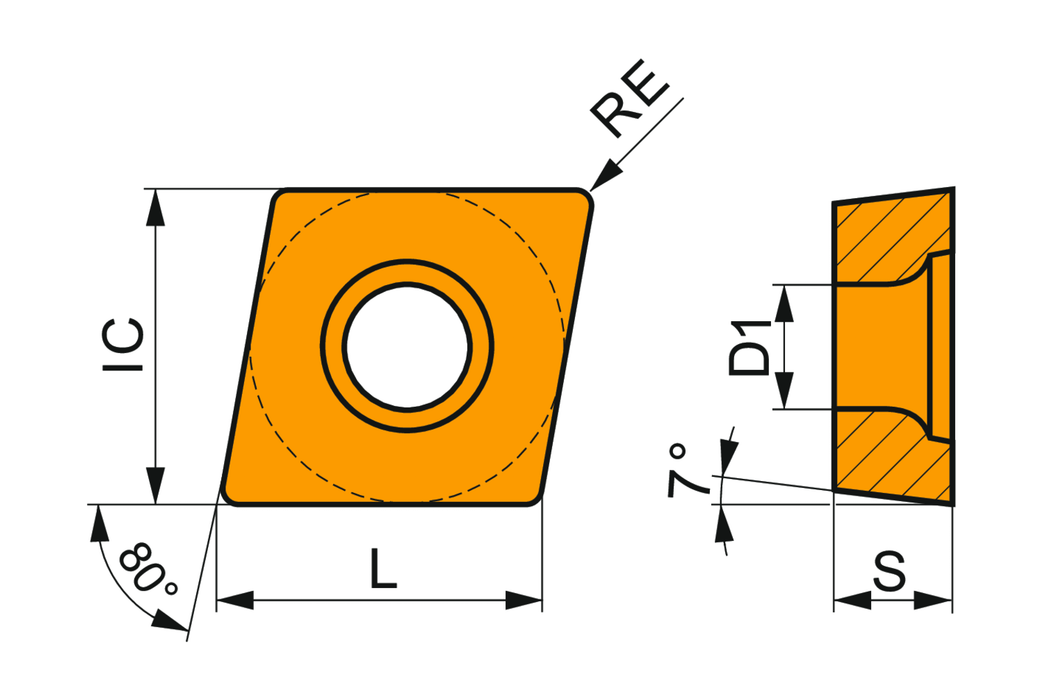

Max. Depth of Cut: 0.098

Insert Design: CCGT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.135

Inscribed Circle Diameter: 0.313

Chip Breaker: AL

Grade: T0315

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6756213

EAN: 3603602915795

MFG Part Number: 6756213
