CCGT 21.50.5L-SI:T8430

CCGT 21.50.5L-SI:T8430

SKU DOR7977179
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel Possible Use: K - Cast Iron S - High Temperature Alloys

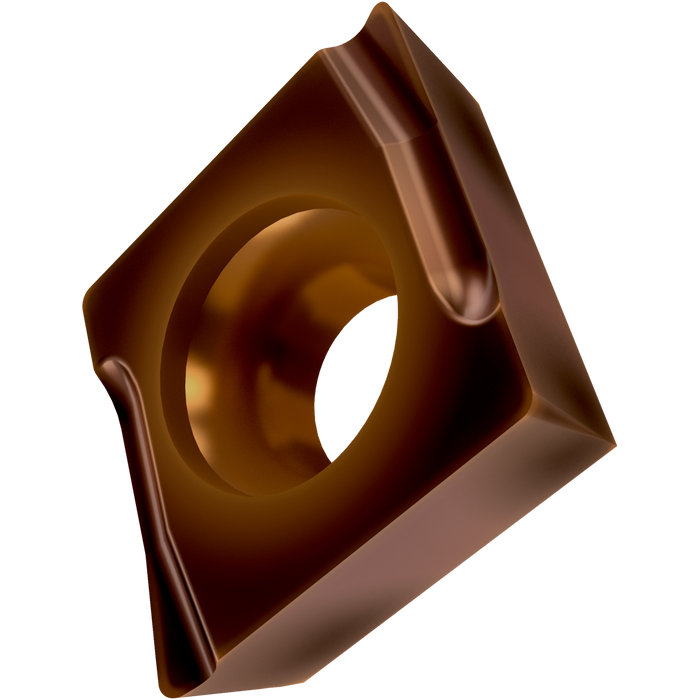

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SI with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$0
$14.71 - $14.71
$14.71
$14.71 - $14.71
$14.71
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CCGT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.094

Inscribed Circle Diameter: 0.25

Chip Breaker: SI

Grade: T8430

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7977179

EAN: 3603603817906

MFG Part Number: 7977179
