32E3R040M16-SZD12-C

32E3R040M16-SZD12-C

SKU DOR6759673
by Dormer Pramet
Primary Use: K - Cast Iron H - Hardened Materials Possible Use: P - Steel and Cast Steel

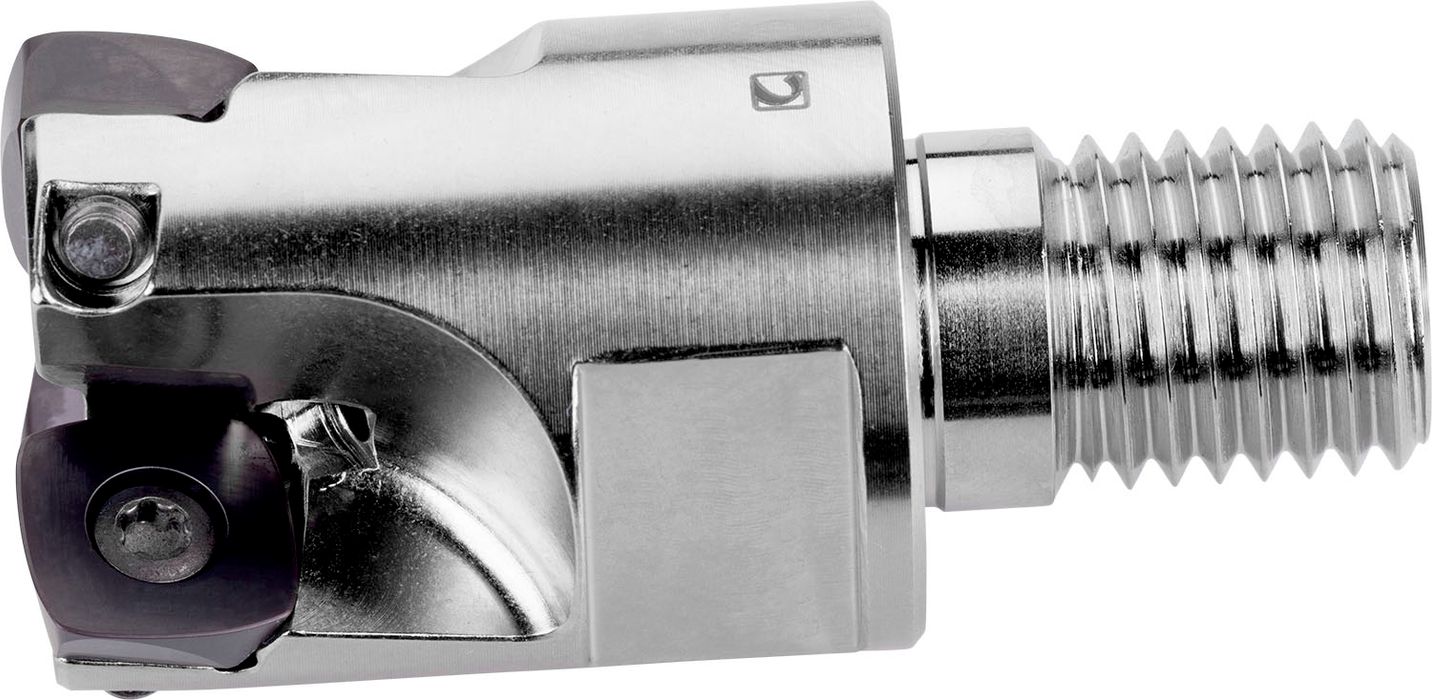

High feed cutter with positve/negative geometry which utilises 3 off ZDEW 1204.. single-sided inserts, cutting diameter 32mm with M16 threaded shank for standard modular tool-holders, 40mm protrusion length, through coolant for face milling

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$540.00 - $540.00
$540.00
$540.00 - $540.00
$540.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

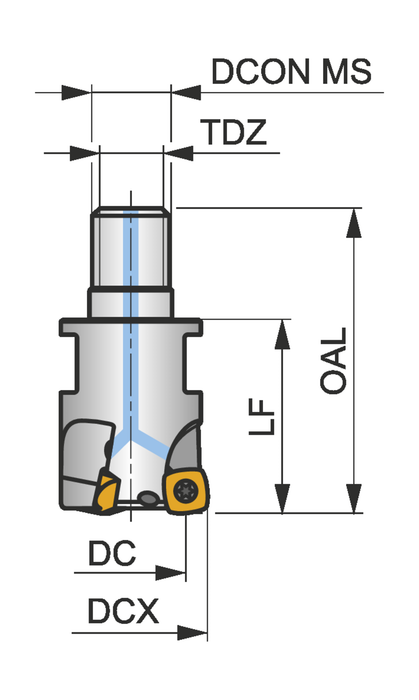

Cutting Diameter - in (DC): 0.571

Cutting Diameter - mm (DC): 14.5

Max Cut Diameter: 1.26

Through Coolant: 1

Overall Length (OAL): 2.48

Connetion Diameter: 0.669

Tool Direction: Right

Diameter Size: M16

Shank: Threaded coupling

Cutter Design: SZD12

Cutting Edge Count: 3

EDP: 6759673

EAN: 3603602950192

MFG Part Number: 6759673
