DCLNR 2020 K 09
SKU DOR6757918
Primary Use:
Possible Use:

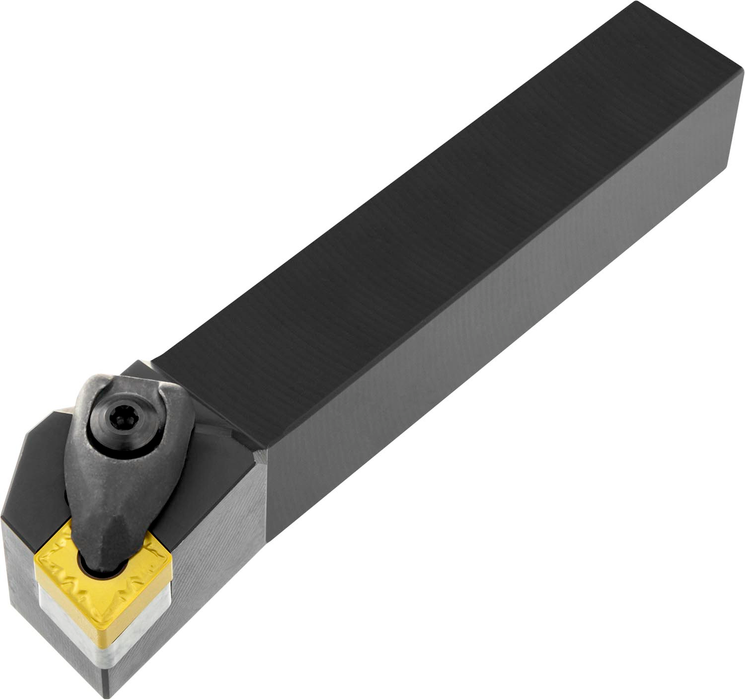

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525mm, 3.18mm thick (ISO designation CN.. 0903.. ), right hand 95° side and end cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$145.00
-
Original price
$145.00
Original price
$145.00
$145.00
-
$145.00
Current price
$145.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.787
Tool Direction: Right
Insert Designation: ["CN.. 0903.."]
Functional Length: 4.921
EDP: 6757918
EAN: 3603602932747
MFG Part Number: 6757918
