B90320.0

B90320.0

SKU DOR5986868
by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals Possible Use: M - Stainless Steel

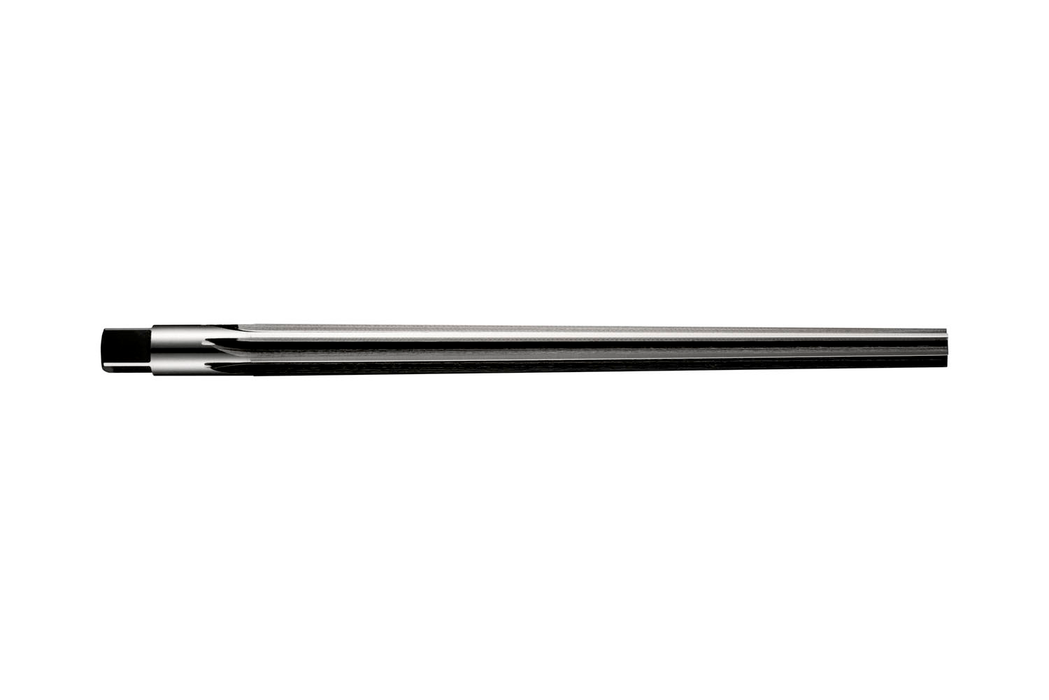

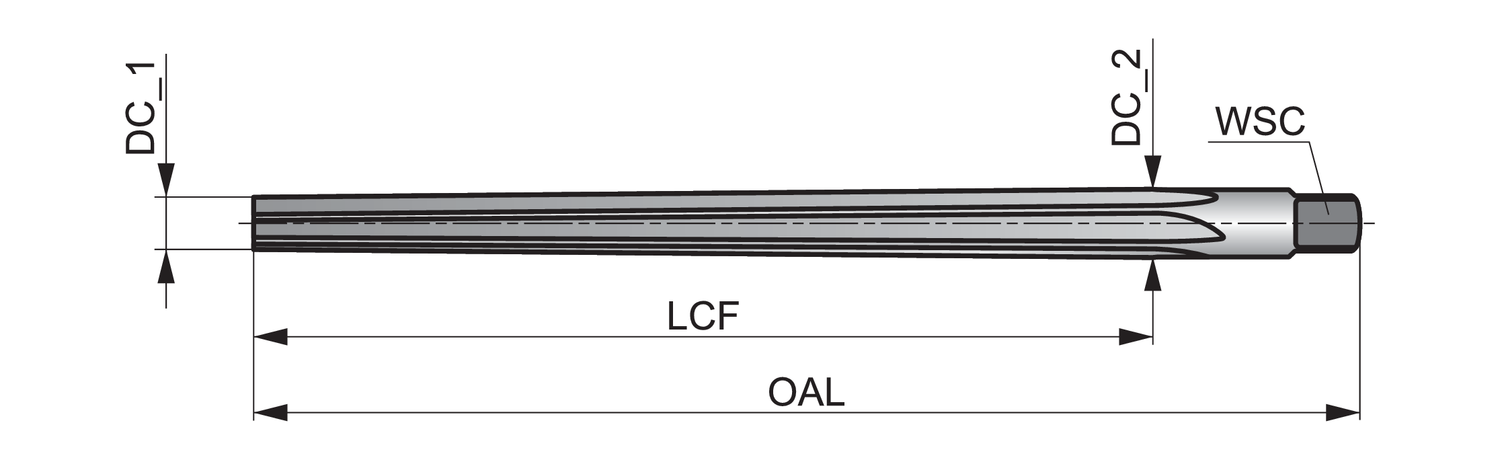

Taper pin hand reamer with straight flutes and a square drive, small end diameter 19.80mm with an overall length of 310mm, a flute length of 250mm and 24.80mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 20.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$982.64 - $982.64
$982.64
$982.64 - $982.64
$982.64
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Overall Length (OAL): 12.2047

Connetion Diameter: 0.9764

Tool Direction: Right

Shank: Cylindrical shank with Square

Grade: Bright/ST

EDP: 182628

EAN: 7320760182628

MFG Part Number: 5986868
