B4814.01

B4814.01

SKU DOR5987560
by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals Possible Use: M - Stainless Steel

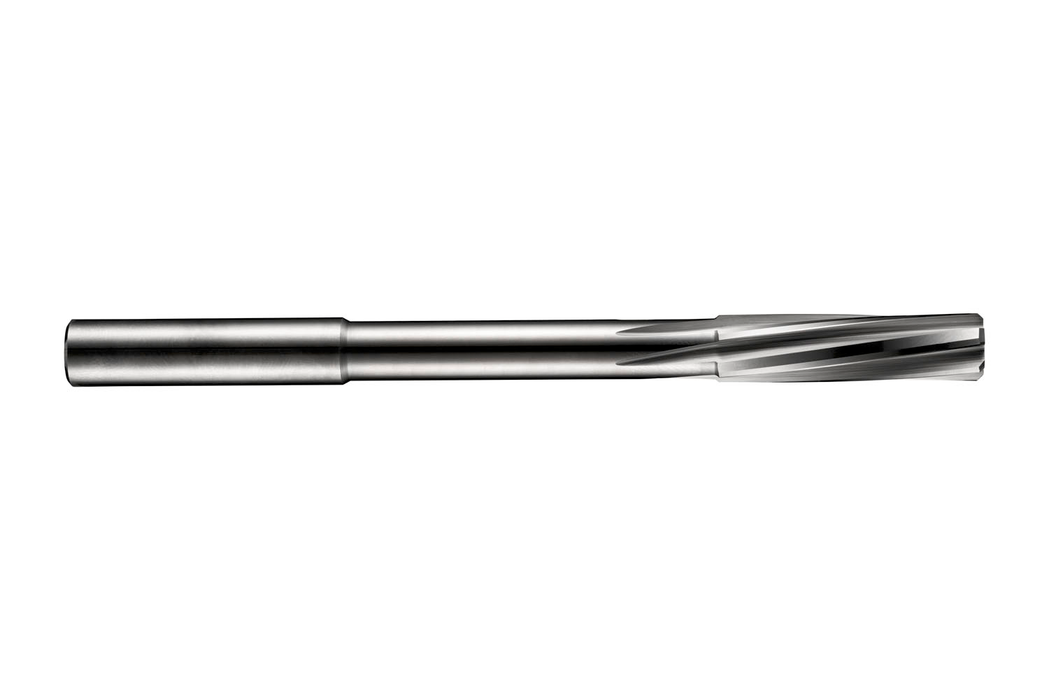

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 4.01mm with an overall length of 75mm, a flute length of 19mm and 47mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 4G7 or 4H8, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$188.17 - $188.17
$188.17
$188.17 - $188.17
$188.17
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

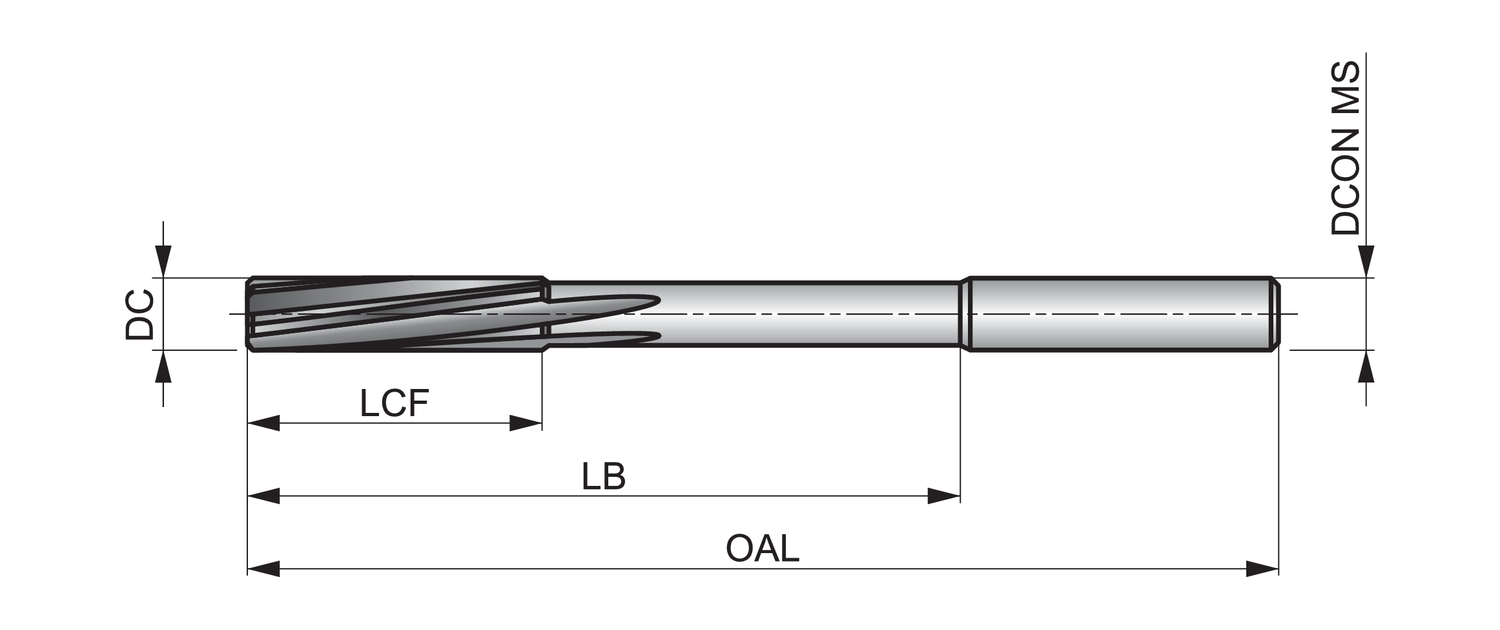

Material: HM

Cutting Diameter - in (DC): 0.1579

Cutting Diameter - mm (DC): 4.01

Overall Length (OAL): 2.9528

Connetion Diameter: 0.1575

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

EDP: 422069

EAN: 7320760422069

MFG Part Number: 5987560
