ADMX 160620SR-M:M8330

ADMX 160620SR-M:M8330

SKU DOR7447821
by Dormer Pramet
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron Possible Use: S - High Temperature Alloys

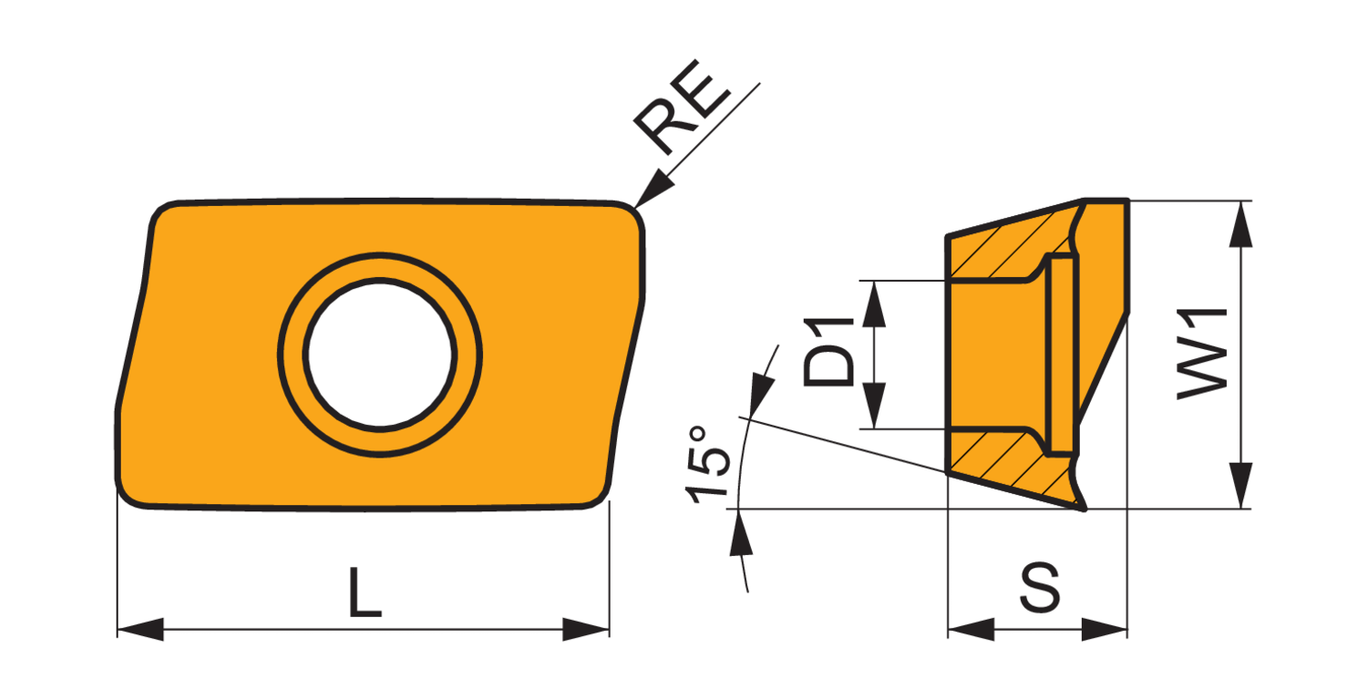

Single-sided milling insert ADMX 1606, 85° parallelogram for a maximum depth of cut of .5118", with .0787" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$0
$15.04 - $15.04
$15.04
$15.04 - $15.04
$15.04
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.512

Insert Design: ADMX

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.246

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

High Temp Alloys: Possible use

Chip Breaker: M

Grade: M8330

Corner Radius - in: 0.079

Corner Radius - mm: 2

EDP: 7447821

EAN: 3603603385351

MFG Part Number: 7447821
