A5106.5

A5106.5

SKU DOR5970321
by Dormer Pramet
Primary Use: Possible Use:

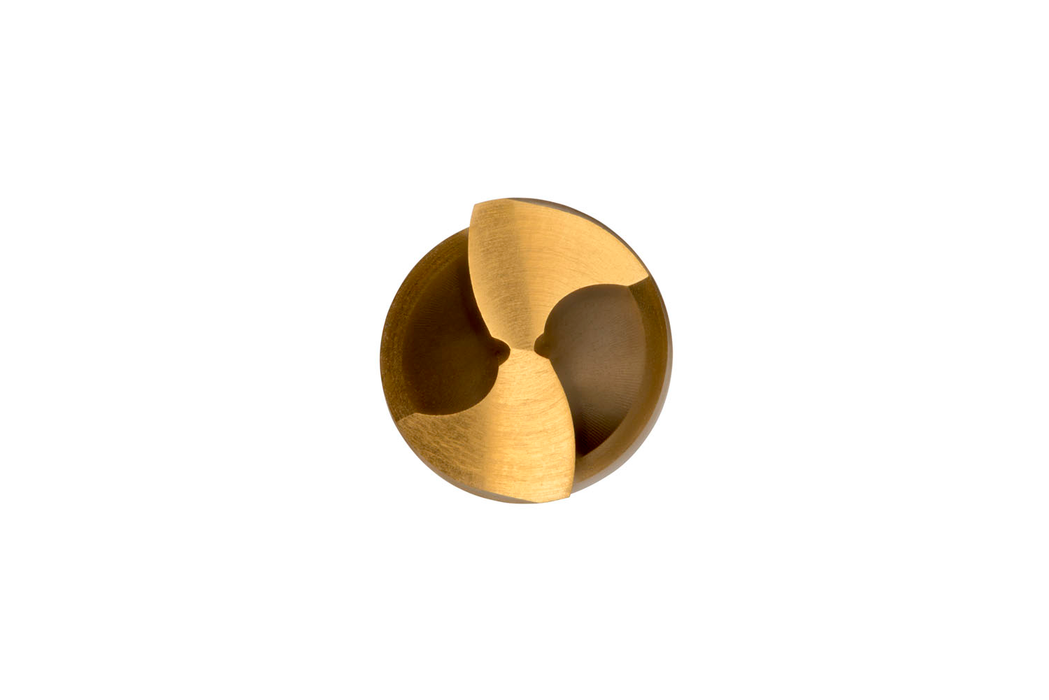

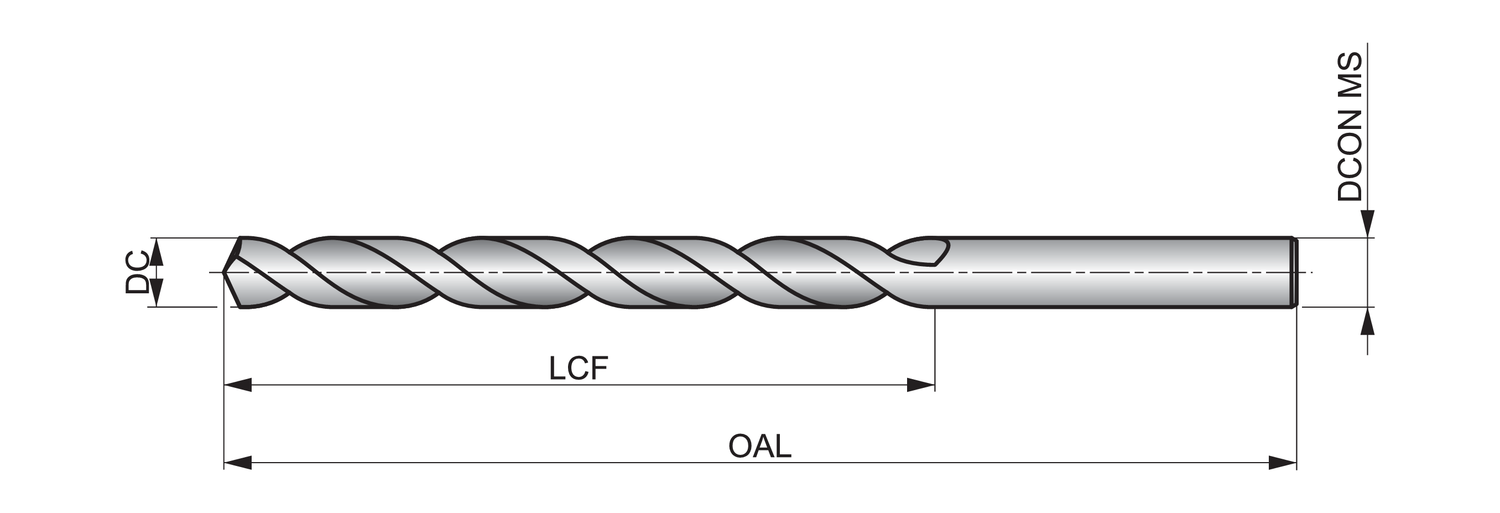

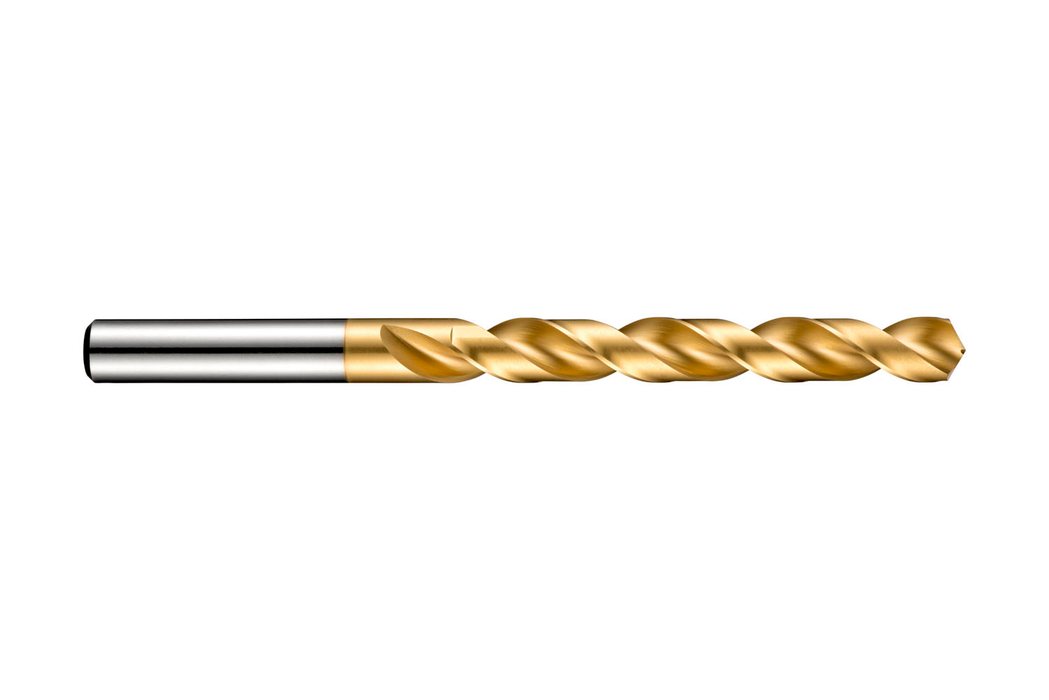

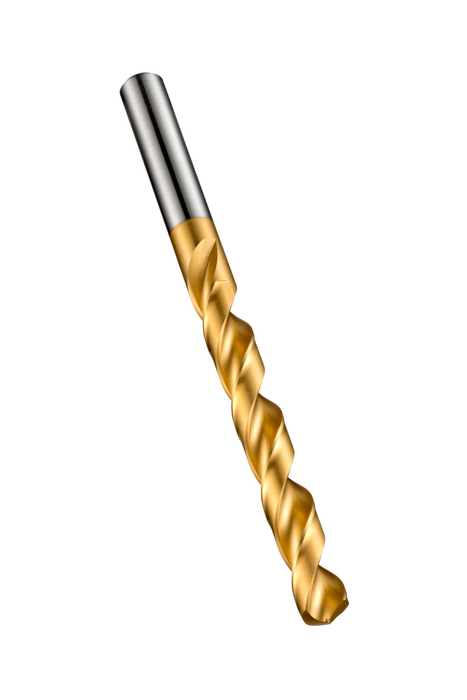

Jobber length ADX drill with straight shank, diameter 6.5mm with an overall length of 101mm and flute length of 63mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$32.27 - $32.27
$32.27
$32.27 - $32.27
$32.27
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2559

Cutting Diameter - mm (DC): 6.5

Drill Point Angle - deg: 130

Flute Length: 2.4803

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.9764

Connetion Diameter: 0.2559

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 36846

EAN: 7320760036846

MFG Part Number: 5970321
