EP201

EP201

SKU DOR5973714
by Dormer Pramet
Primary Use:

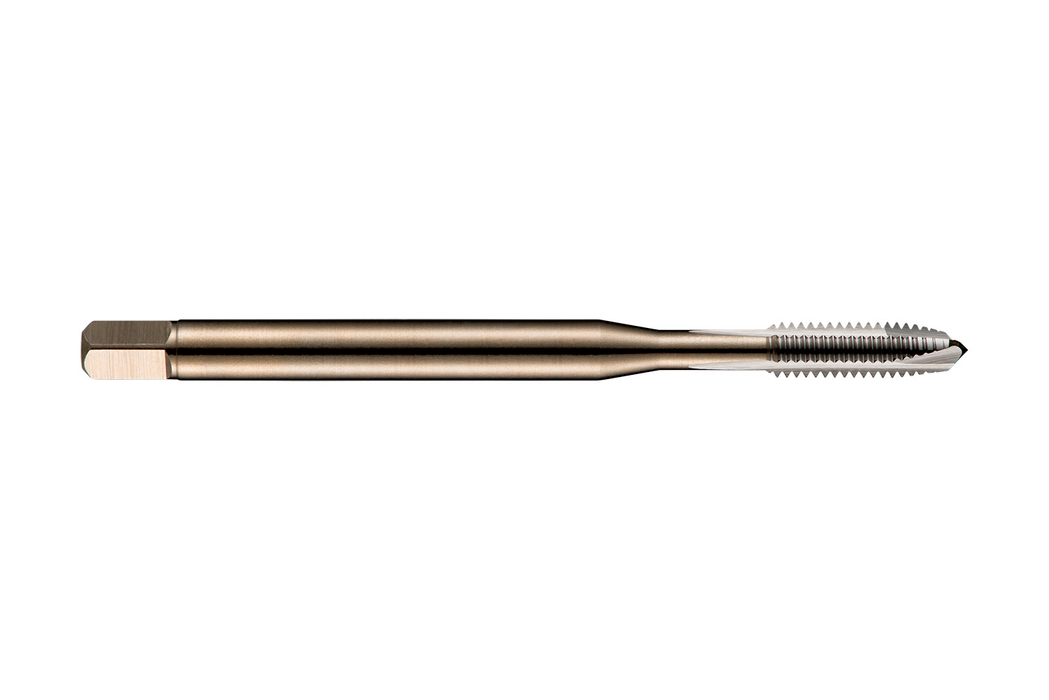

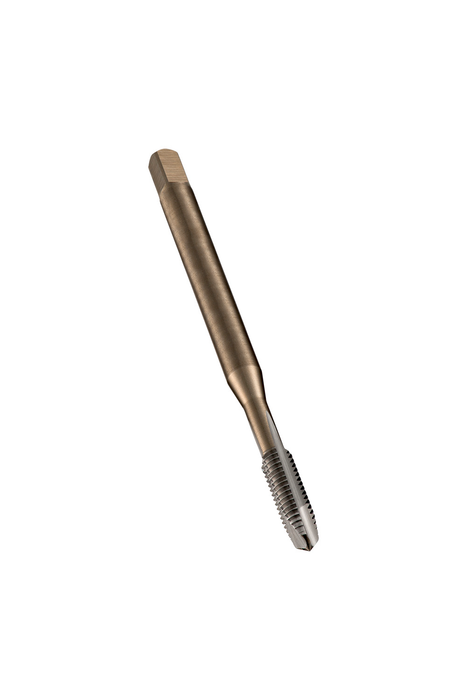

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1" with 8 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$263.33 - $263.33
$263.33
$263.33 - $263.33
$263.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 6.2992

Connetion Diameter: 0.7087

Tool Direction: Right

Diameter Size: 1"

Thread Diameter - in: 1.0

Thread Diameter - mm: 25.4

TPI: 8.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 138168

EAN: 7320760138168

MFG Part Number: 5973714
