E105M12X1.25NO9

E105M12X1.25NO9

SKU DOR5974975
by Dormer Pramet
Primary Use: Possible Use:

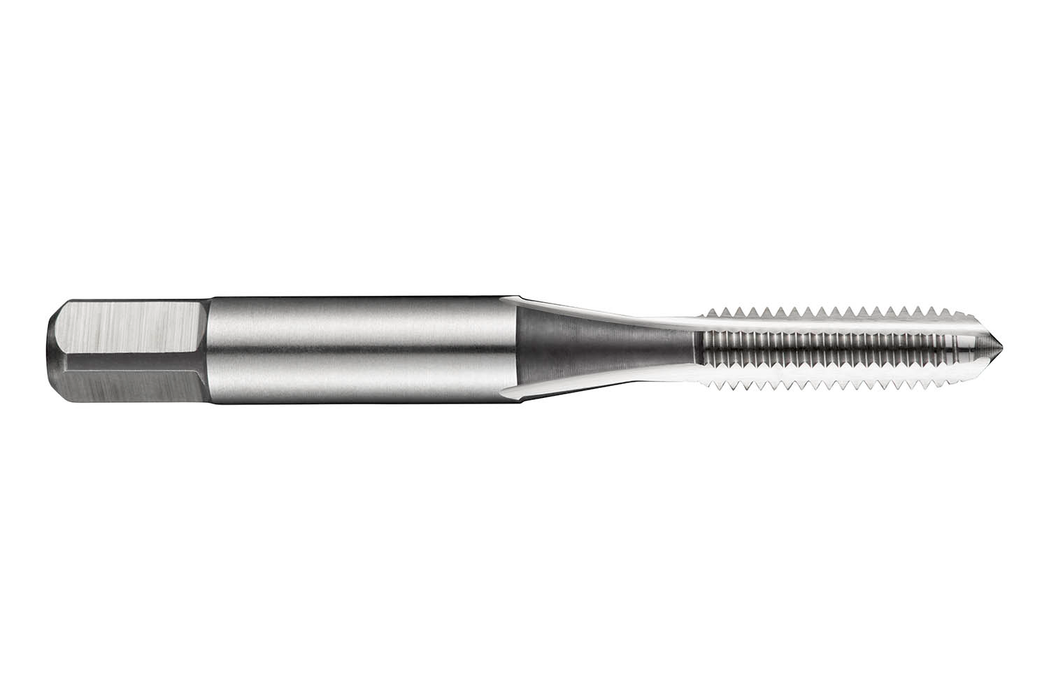

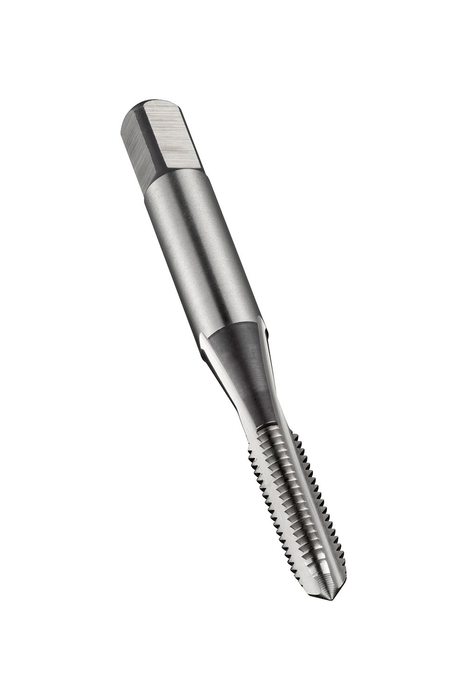

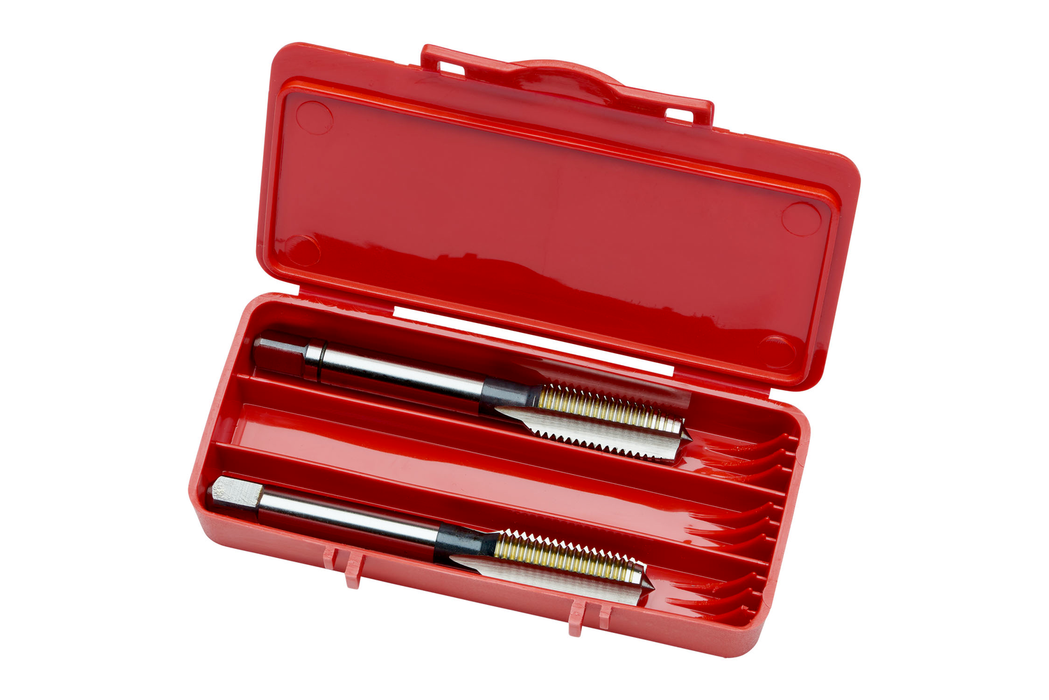

Set of straight flute serial taps NO9 for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 2181 standard with 9.0mm shank and 7.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$90.21 - $90.21
$90.21
$90.21 - $90.21
$90.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

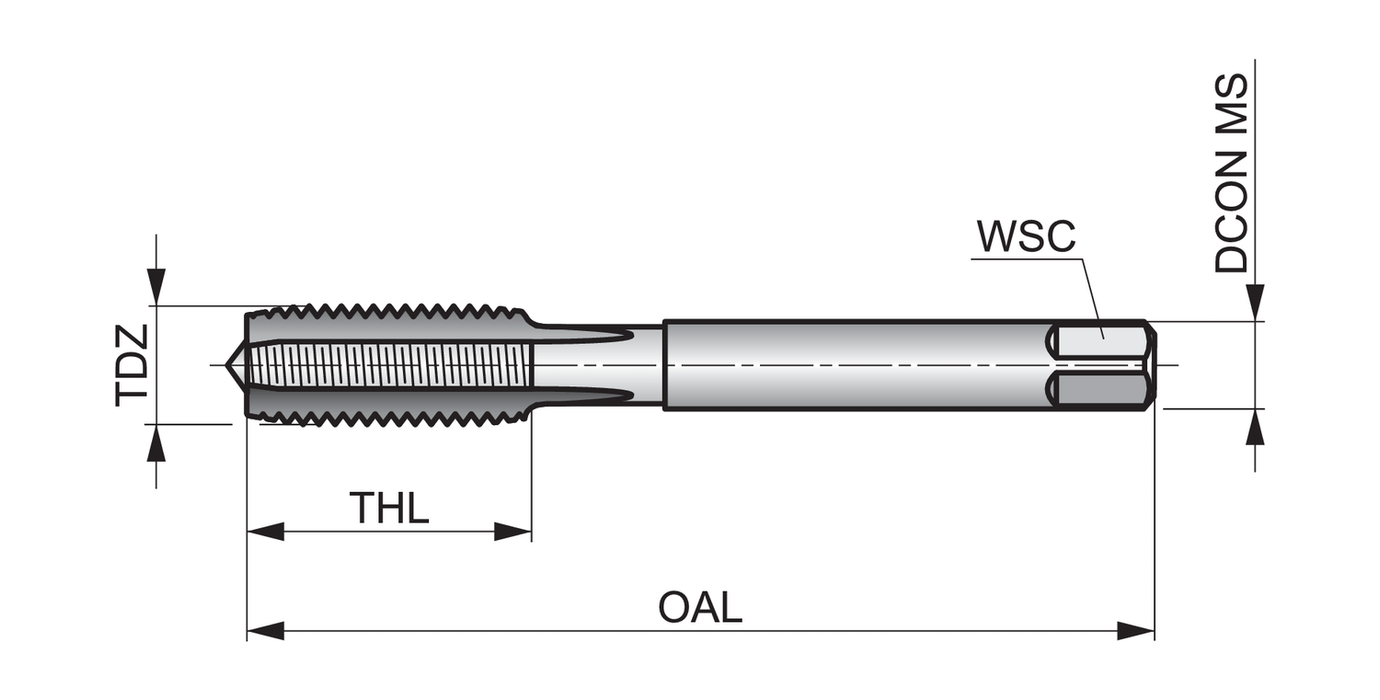

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.7559

Connetion Diameter: 0.3543

Tool Direction: Right

Diameter Size: 12

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 80382

EAN: 7320760080382

MFG Part Number: 5974975
