E500M3X.6NO1

E500M3X.6NO1

SKU DOR5975715
by Dormer Pramet
Primary Use: Possible Use:

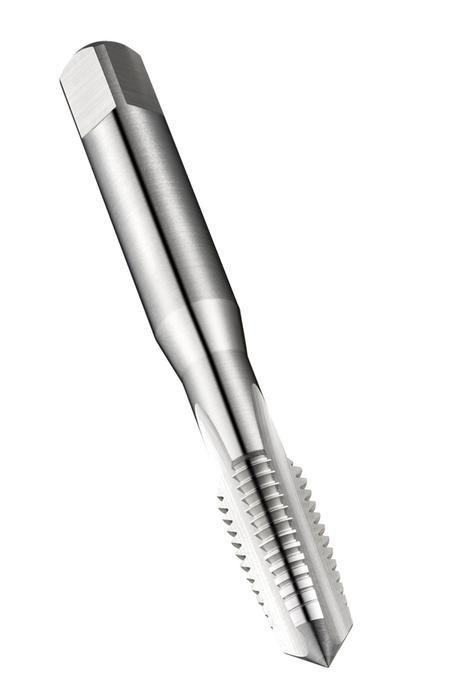

Straight flute hand tap NO1 with a 6-8xP taper lead, for ISO-Metric thread M3 with 0.60 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$26.49 - $26.49
$26.49
$26.49 - $26.49
$26.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.8898

Connetion Diameter: 0.124

Tool Direction: Right

Diameter Size: 3

Pitch - mm: 0.6

Pitch - in: 0.0236

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.4921

Grade: Bright

EDP: 159927

EAN: 7320760159927

MFG Part Number: 5975715
