E243PG21NO2

E243PG21NO2

SKU DOR5975811
by Dormer Pramet
Primary Use: Possible Use:

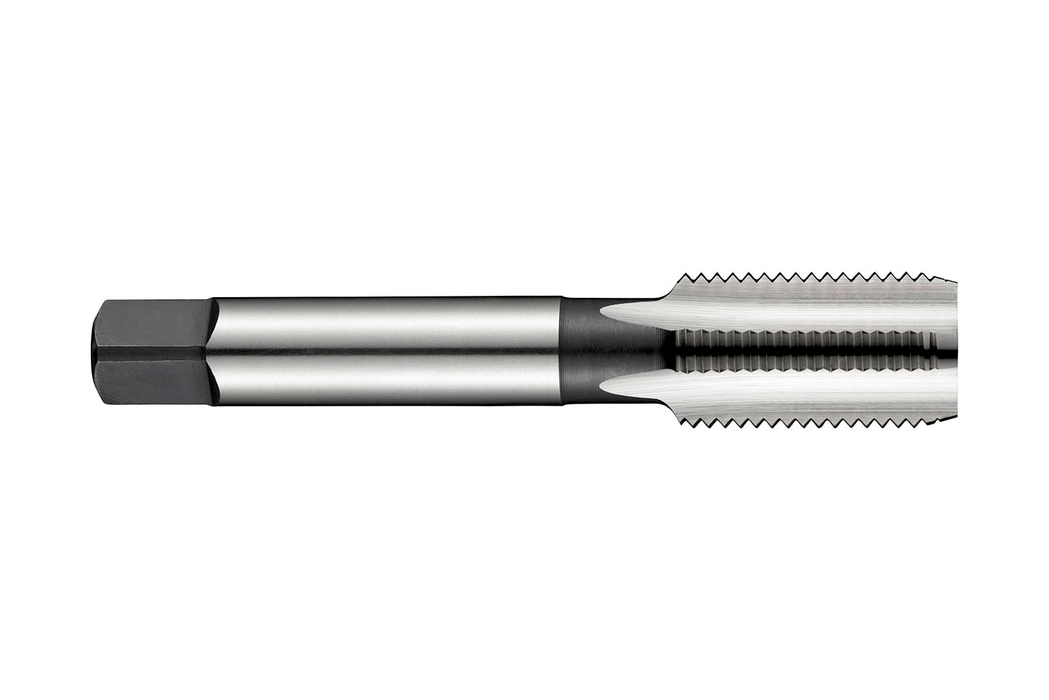

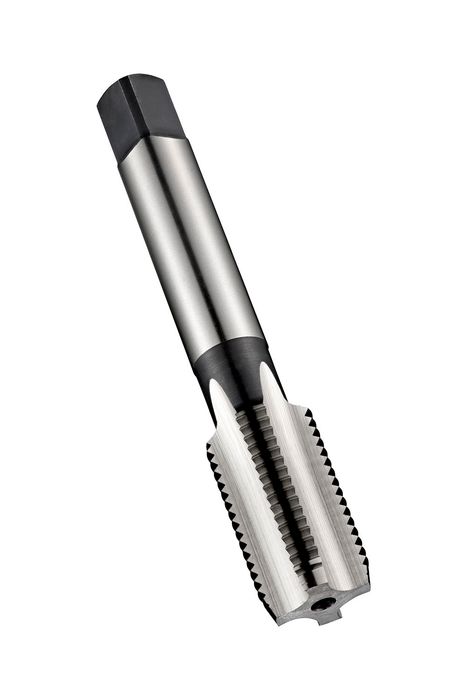

Straight flute tap NO2 with a 4-6xP second lead, for Panzergewinde (steel conduit thread) PG21 with 16 TPI and Normal class of fit, dimensions according to DIN 40432 standard with 22.0mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$196.06 - $196.06
$196.06
$196.06 - $196.06
$196.06
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

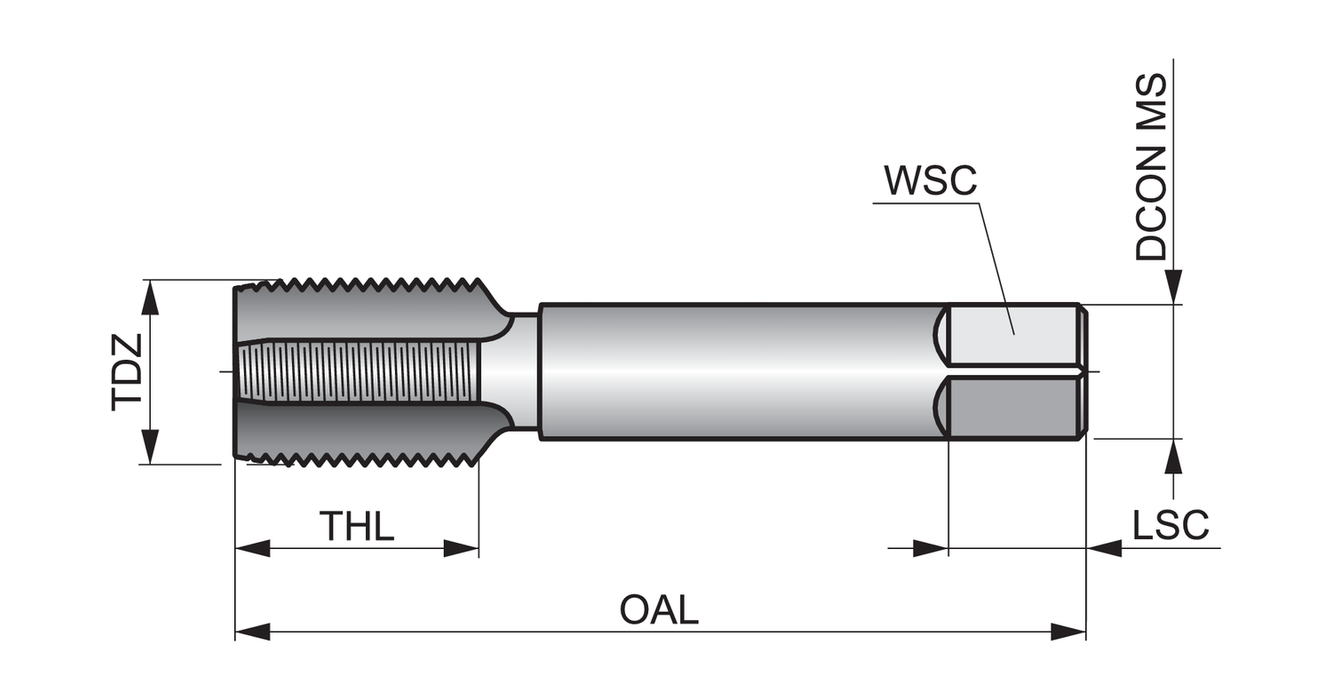

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.5433

Connetion Diameter: 0.8661

Tool Direction: Right

Diameter Size: 21

Thread Diameter - in: 1.1142

Thread Diameter - mm: 28.3

TPI: 16.0

Thread Form: PG

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 86629

EAN: 7320760086629

MFG Part Number: 5975811
