E5701.1/4X8NO3

Name: E5701.1/4X8NO3
Brand: Dormer Pramet
SKU: DOR5977454
Price: 515.44 CAD
Availability: InStock

SKU DOR5977454

by Dormer Pramet

Primary Use: Possible Use:

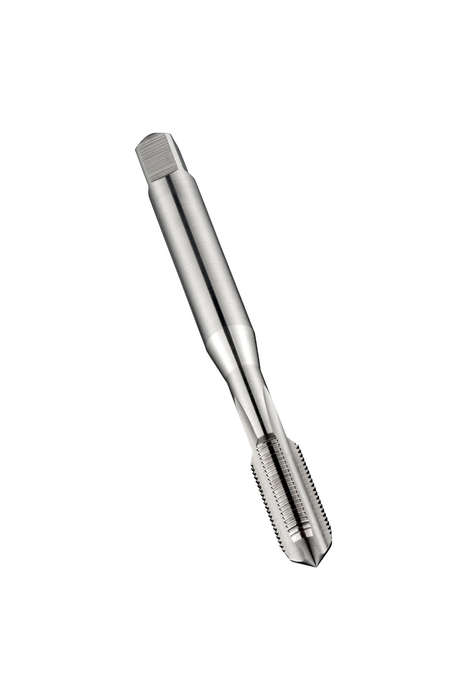

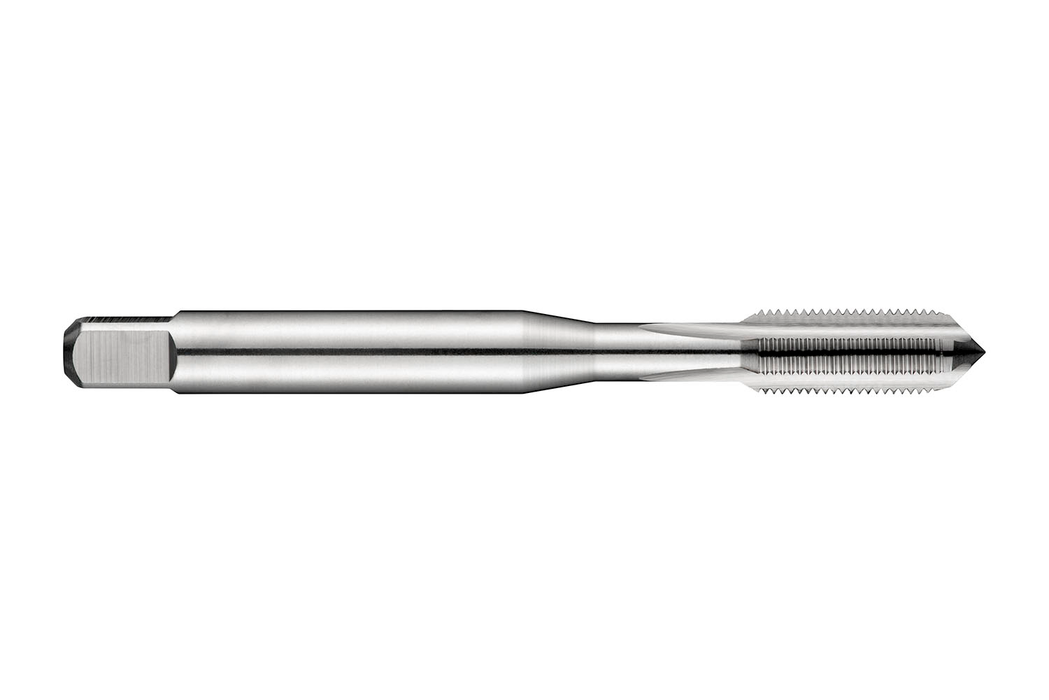

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National thread UN 1.1/4" with 8 TPI and 2B class of fit, dimensions according to ISO 529 standard with 22.4mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here

$515.44 - $515.44

$515.44

$515.44 - $515.44

$515.44

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.9449

Connetion Diameter: 0.8819

Tool Direction: Right

Diameter Size: 1.1/4

Thread Diameter - in: 1.25

Thread Diameter - mm: 31.75

TPI: 8.0

Thread Form: UN - Unified

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 200940

EAN: 7320760200940

MFG Part Number: 5977454
