F110M8X.75

F110M8X.75

SKU DOR5977793
by Dormer Pramet
Primary Use:

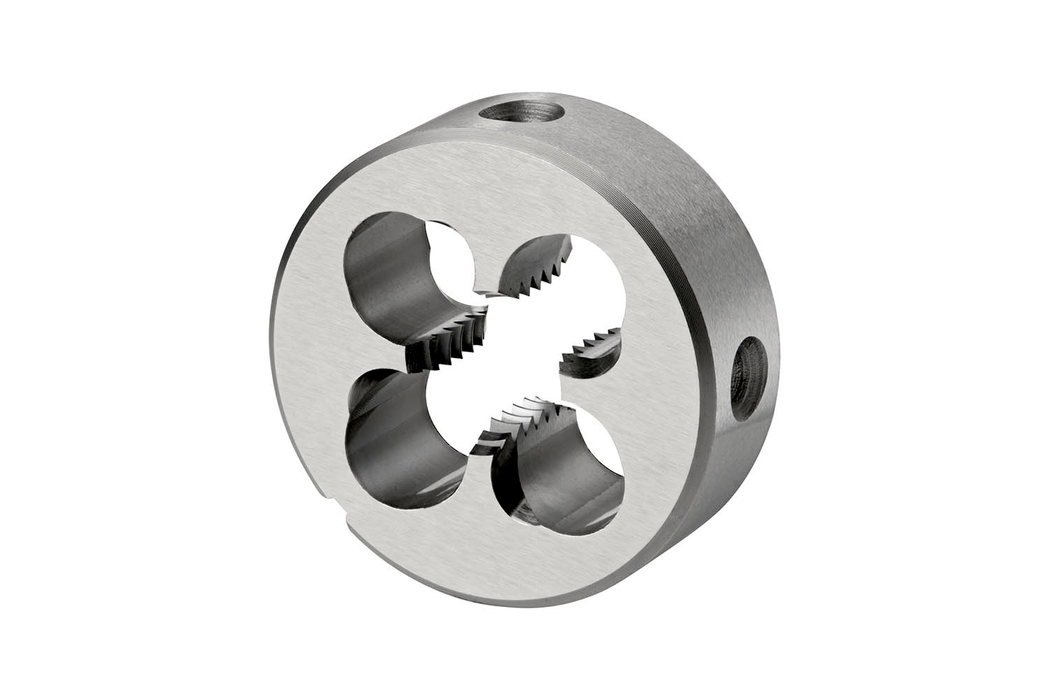

Solid round die with a gun nose, for ISO-Metric Fine thread M8 with 0.75 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 25mm outside diameter and 9mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$79.81 - $79.81
$79.81
$79.81 - $79.81
$79.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

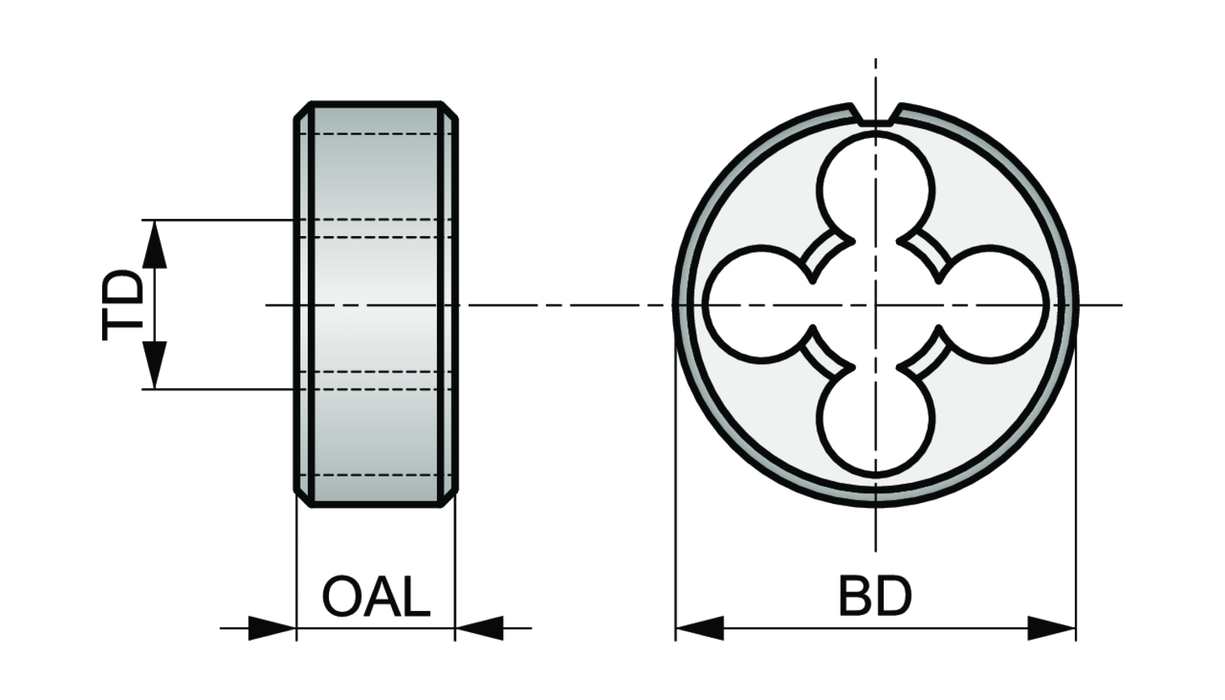

Overall Length (OAL): 0.3543

Tool Direction: Right

Diameter Size: 8

Thread Diameter - mm: 8.0

Pitch - mm: 0.75

Thread Form: MF - Metric fine

Grade: Bright

EDP: 104316

EAN: 7320760104316

MFG Part Number: 5977793
