F3201/4X1.5/16

F3201/4X1.5/16

SKU DOR5977993
by Dormer Pramet
Primary Use:

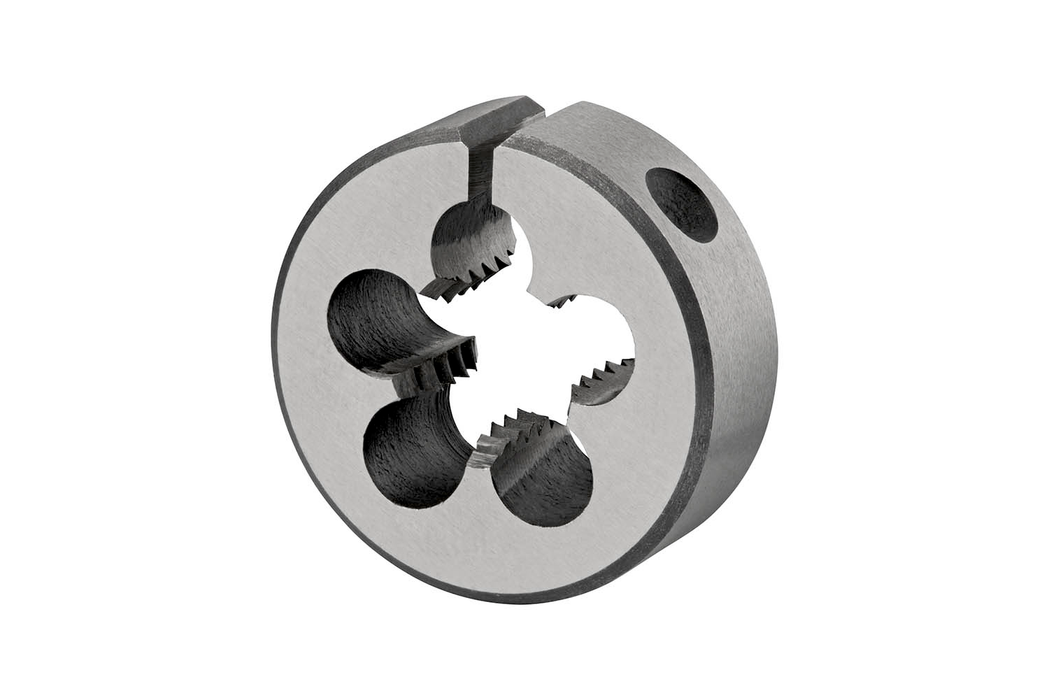

Adjustable circular split die, for Unified National Coarse thread UNC 1/4" with 20 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 1.5/16" outside diameter and 7/16" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$110.47 - $110.47
$110.47
$110.47 - $110.47
$110.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

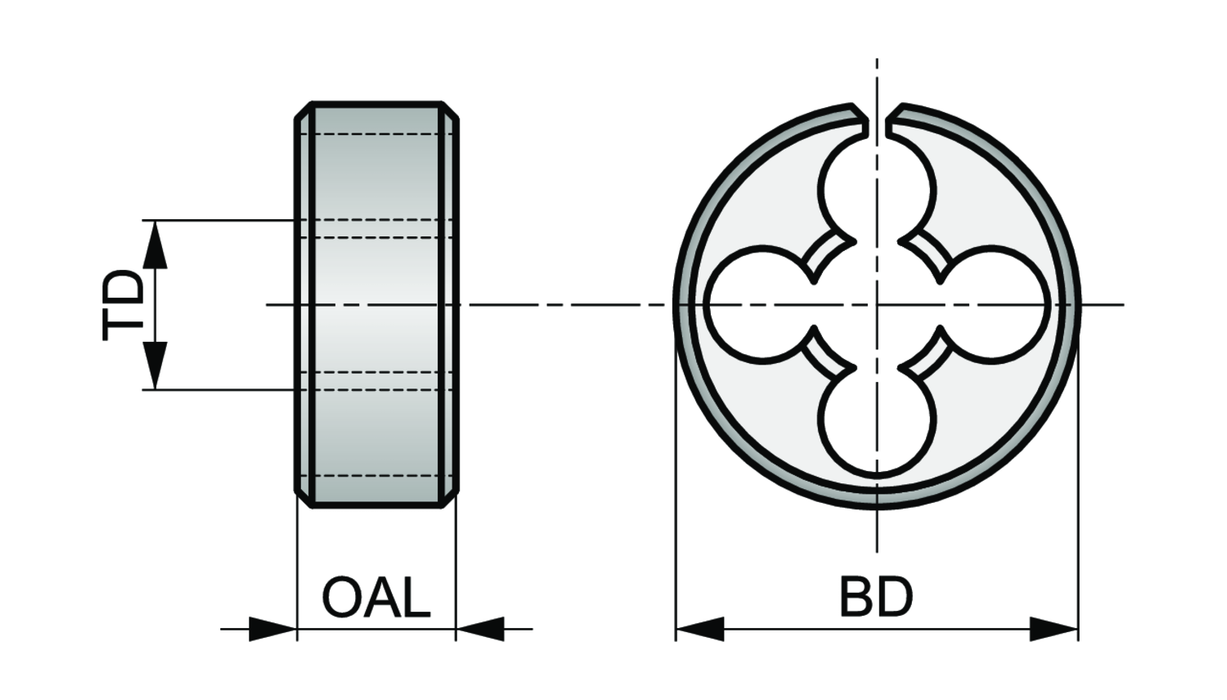

Material: HSS

Overall Length (OAL): 0.4375

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - mm: 6.35

TPI: 20.0

Thread Form: UNC - Unified Coarse

Grade: Bright

EDP: 206744

EAN: 7320760206744

MFG Part Number: 5977993
