E6545/8

E6545/8

SKU DOR5978420
by Dormer Pramet
Primary Use: Possible Use:

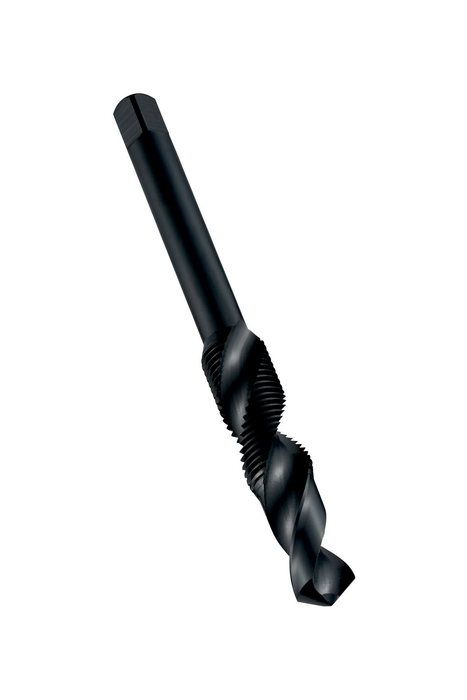

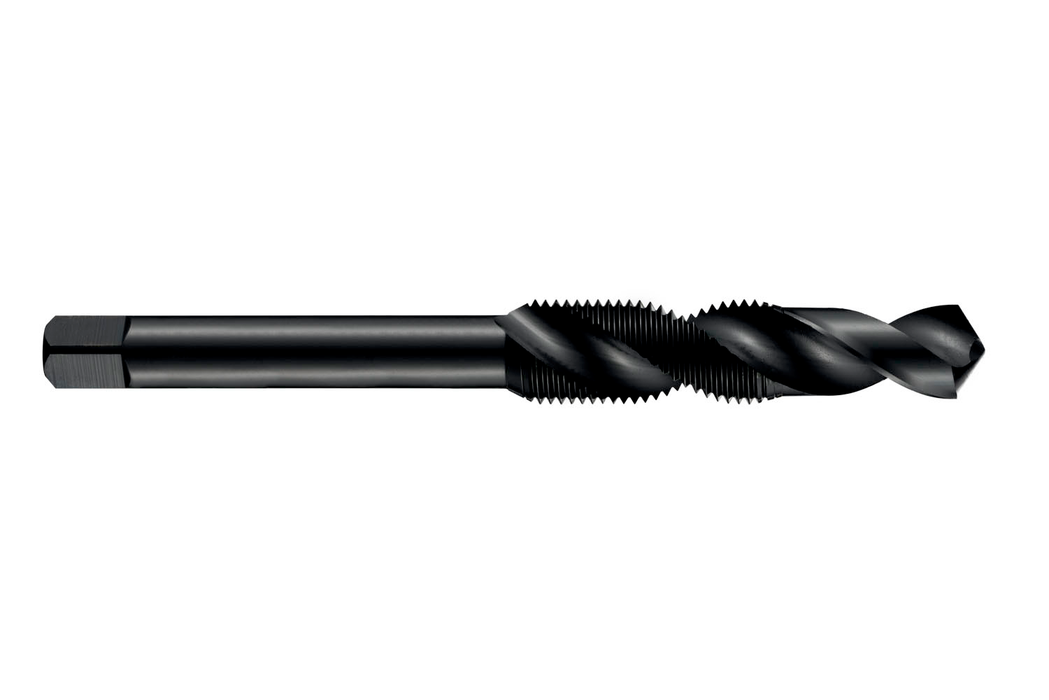

Combination drill-tap with a 30° spiral flute, for Unified National Fine thread UNF 5/8" with 18 TPI and Medium class of fit, dimensions according to DORMER-DIN standard with 12.5mm shank and 10.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$159.56 - $159.56
$159.56
$159.56 - $159.56
$159.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.2756

Connetion Diameter: 0.4921

Tool Direction: Right

Diameter Size: 5/8

Thread Diameter - in: 0.5709

Thread Diameter - mm: 14.5

TPI: 18.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 339039

EAN: 7320760339039

MFG Part Number: 5978420
