S51110.0

S51110.0

SKU DOR5982845
by Dormer Pramet
Primary Use: Possible Use:

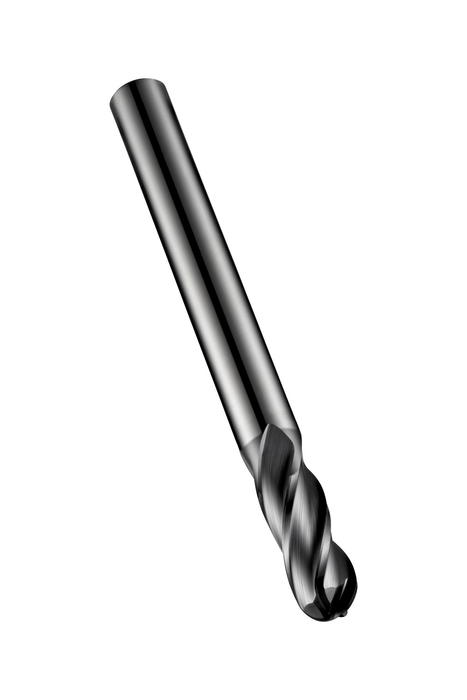

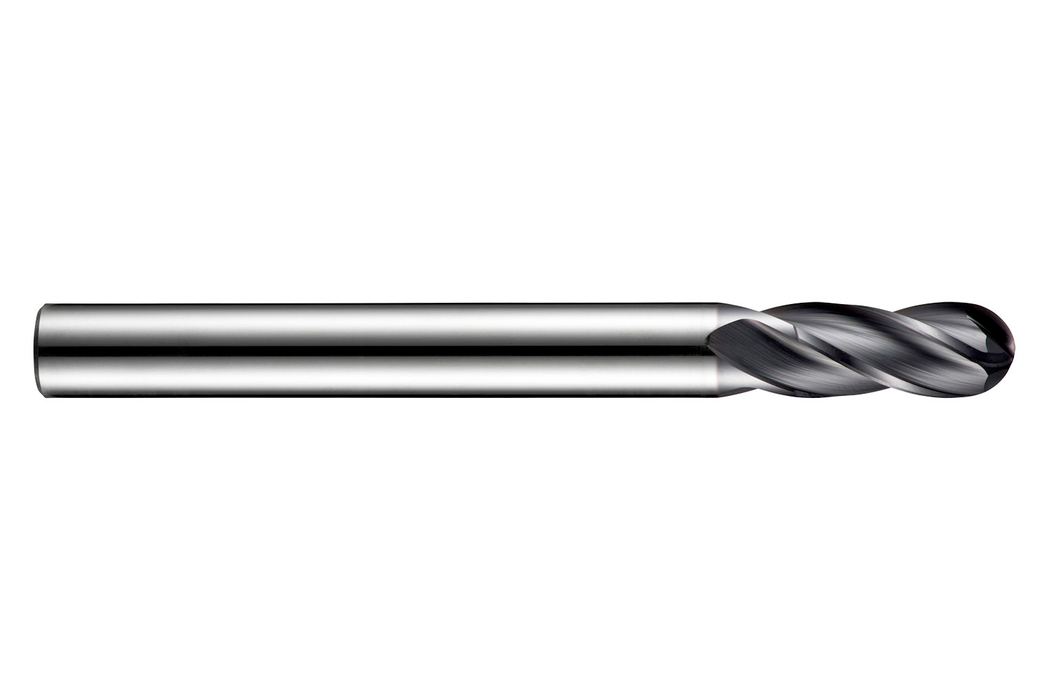

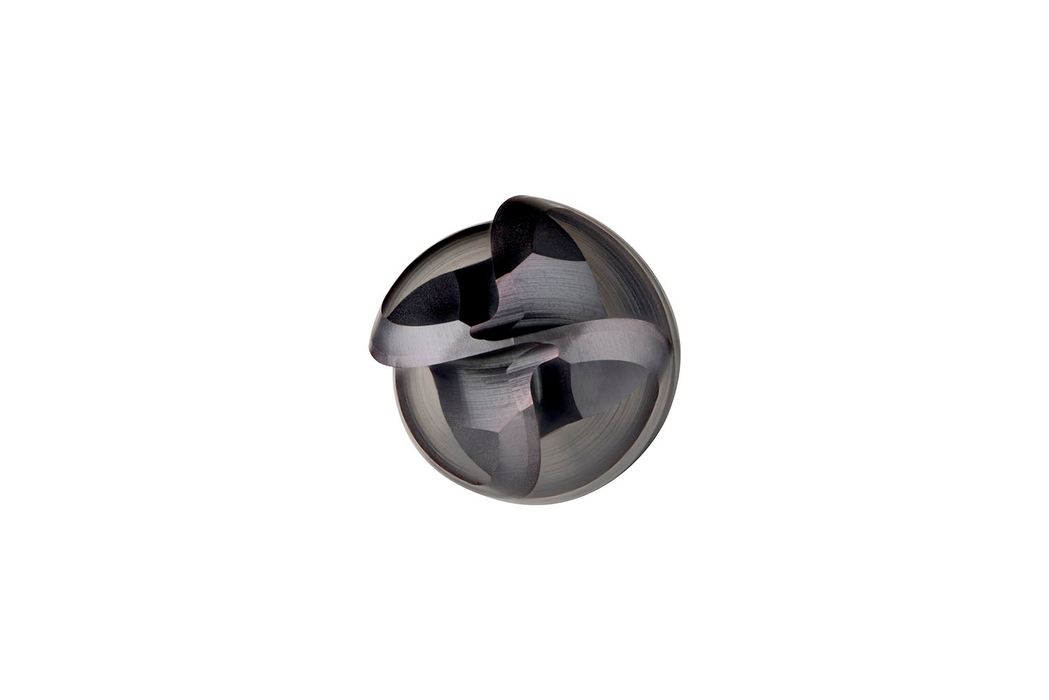

Short series ball-nose end mill with 4 flutes, diameter 10mm with 22mm length of cut, 100mm overall length and 5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$197.16 - $197.16
$197.16
$197.16 - $197.16
$197.16
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

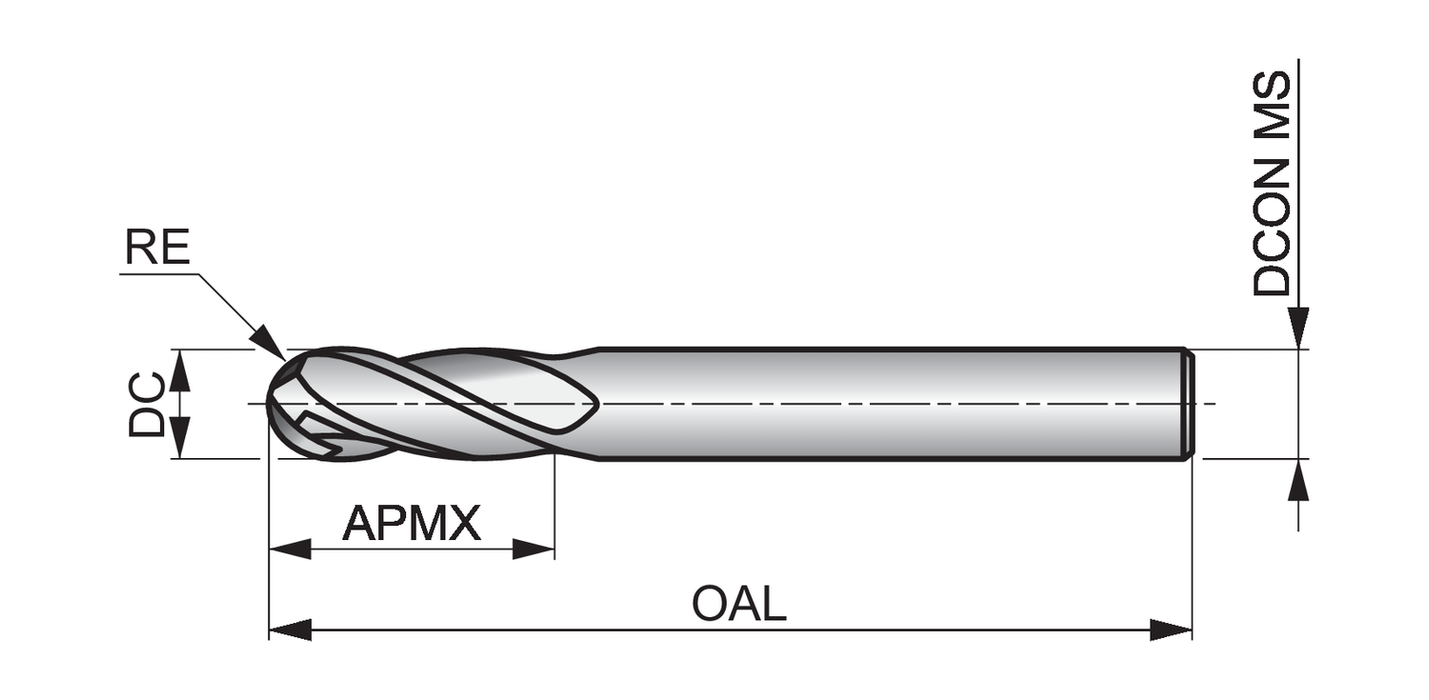

Material: HM

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 3.937

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Shank: Cylindrical shank DIN 6535 HA

Grade: X-CEED

Corner Radius - in: 0.1969

Corner Radius - mm: 5

Cutting Edge Count: 4

EDP: 120972

EAN: 7320760120972

MFG Part Number: 5982845
