S802HA1.0

S802HA1.0

SKU DOR5983331
by Dormer Pramet
Primary Use: Possible Use:

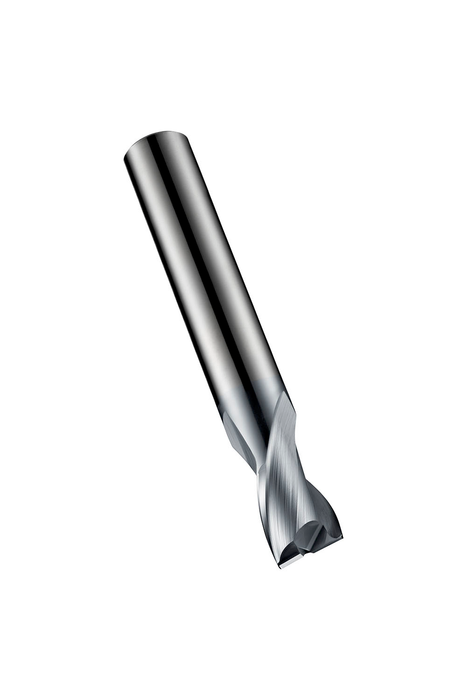

Extra short series slot drill with 2 flutes, diameter 1mm with 3mm length of cut and 38mm overall length, according to DIN 6527 K standard with a 3mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$48.73 - $48.73
$48.73
$48.73 - $48.73
$48.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

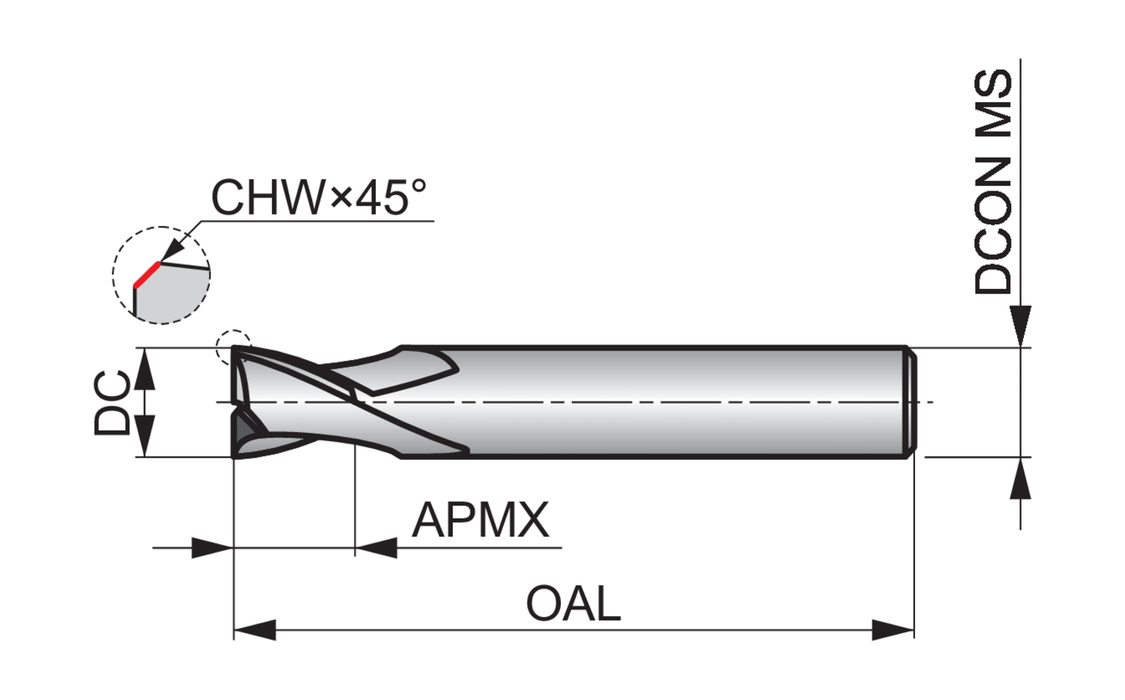

Cutting Diameter - in (DC): 0.0394

Cutting Diameter - mm (DC): 1.0

Overall Length (OAL): 1.4961

Connetion Diameter: 0.1181

Max. Depth of Cut: 0.1181

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 2

EDP: 640364

EAN: 7320760640364

MFG Part Number: 5983331
