S802HA20.0

S802HA20.0

SKU DOR5983424
by Dormer Pramet
Primary Use: Possible Use:

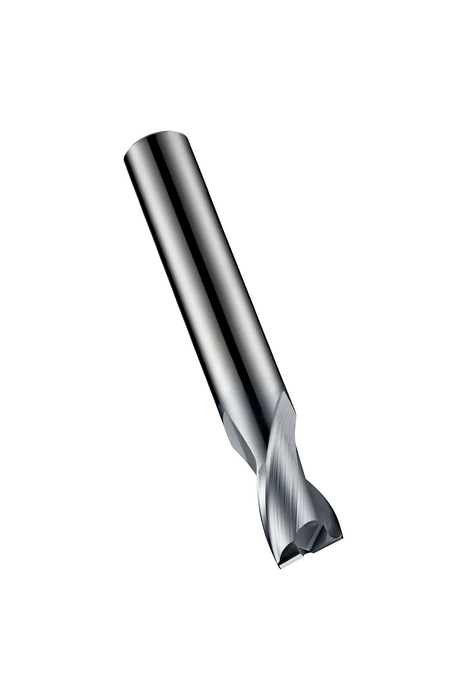

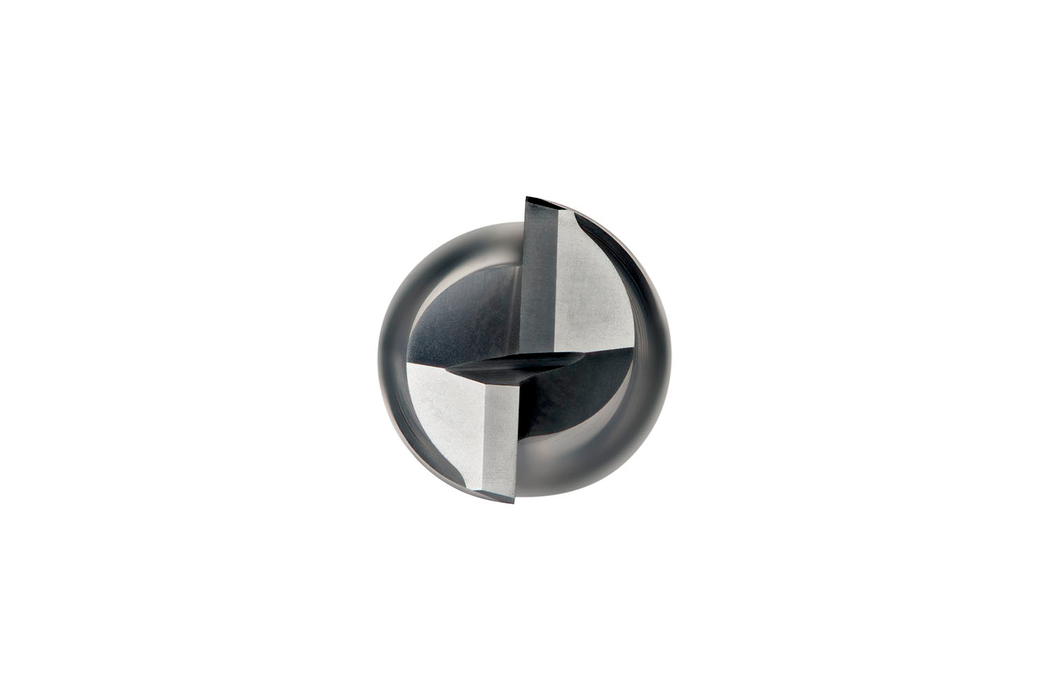

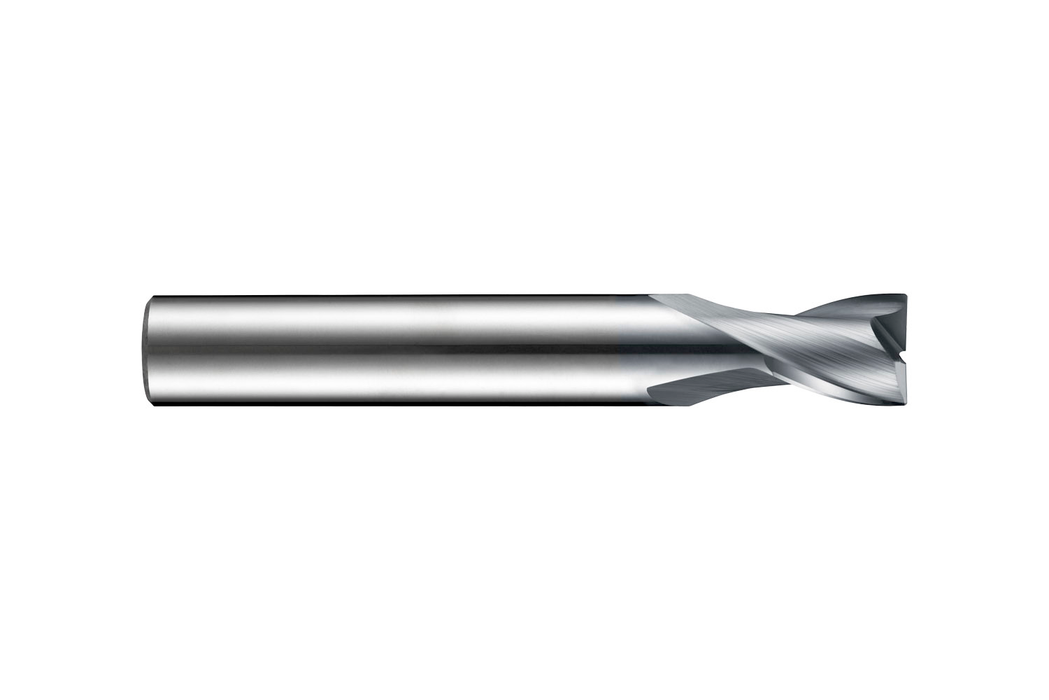

Extra short series slot drill with 2 flutes, diameter 20mm with 20mm length of cut, 92mm overall length and 0.3mm 45° chamfered corner edges, according to DIN 6527 K standard with a 20mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$341.46 - $341.46
$341.46
$341.46 - $341.46
$341.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

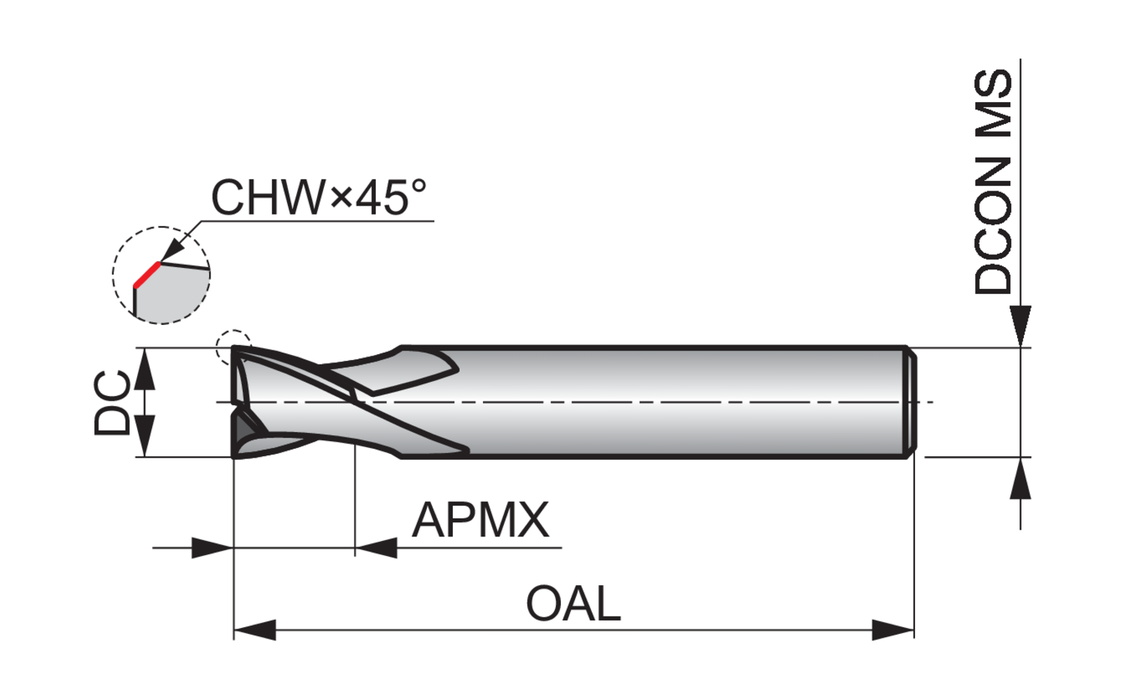

Material: HM

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 3.622

Connetion Diameter: 0.7874

Max. Depth of Cut: 0.7874

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 2

EDP: 640678

EAN: 7320760640678

MFG Part Number: 5983424
