B90313.0

B90313.0

SKU DOR5986995
by Dormer Pramet
Primary Use: Possible Use:

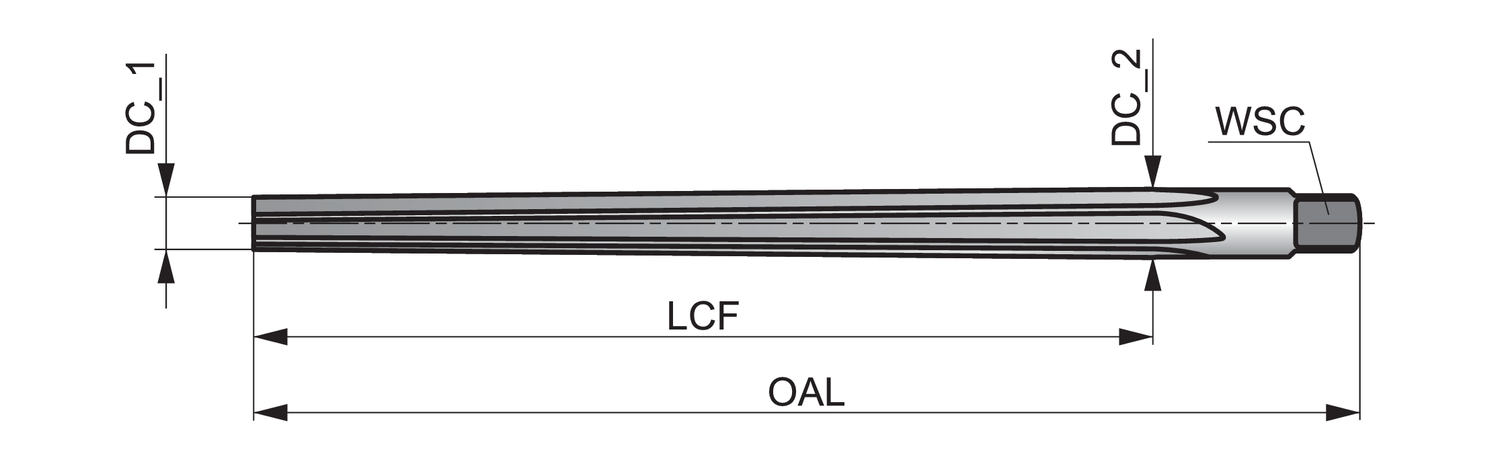

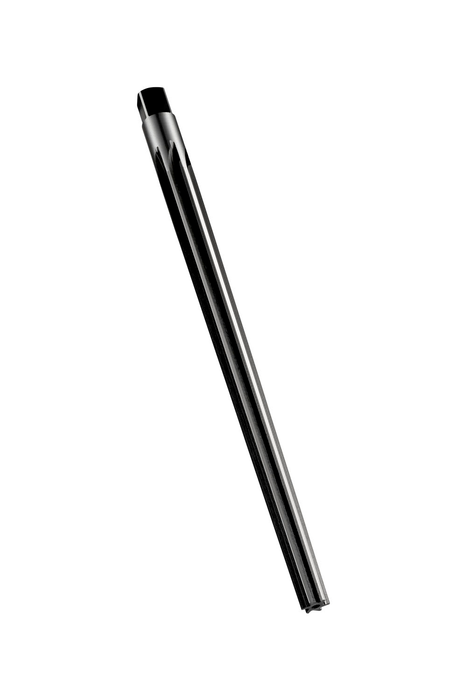

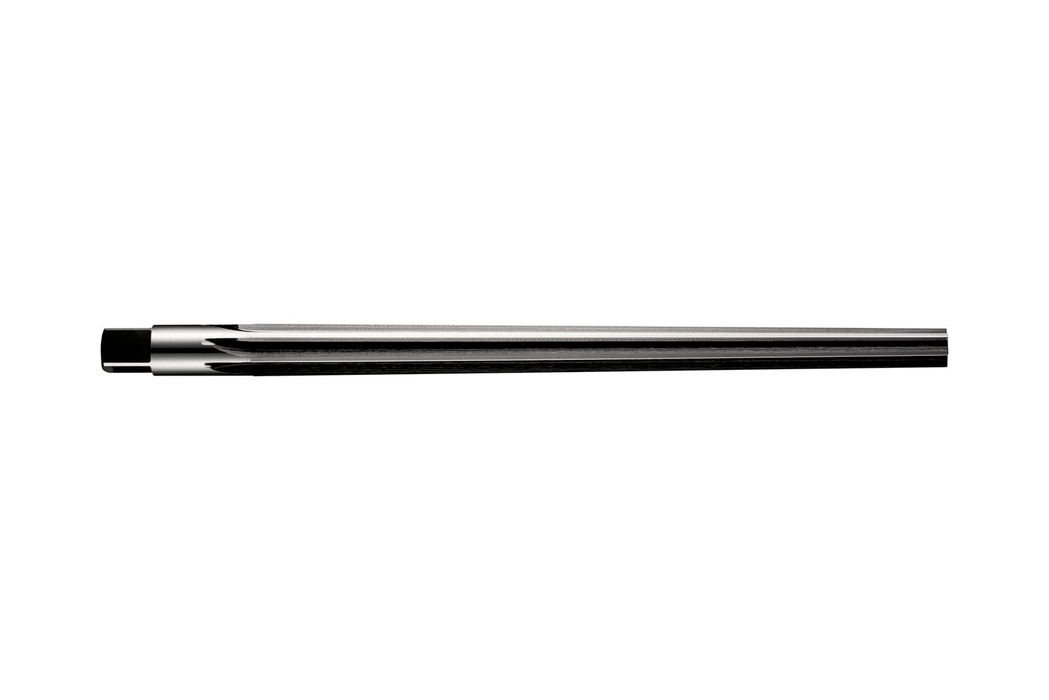

Taper pin hand reamer with straight flutes and a square drive, small end diameter 12.86mm with an overall length of 255mm, a flute length of 210mm and 16.74mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 13.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$242.70 - $242.70
$242.70
$242.70 - $242.70
$242.70
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Overall Length (OAL): 10.0394

Connetion Diameter: 0.6591

Tool Direction: Right

Shank: Cylindrical shank with Square

Grade: Bright/ST

EDP: 182598

EAN: 7320760182598

MFG Part Number: 5986995
