R18PN4

R18PN4

SKU PRE5999053
by Precision Twist Drill
Primary Use: Possible Use:

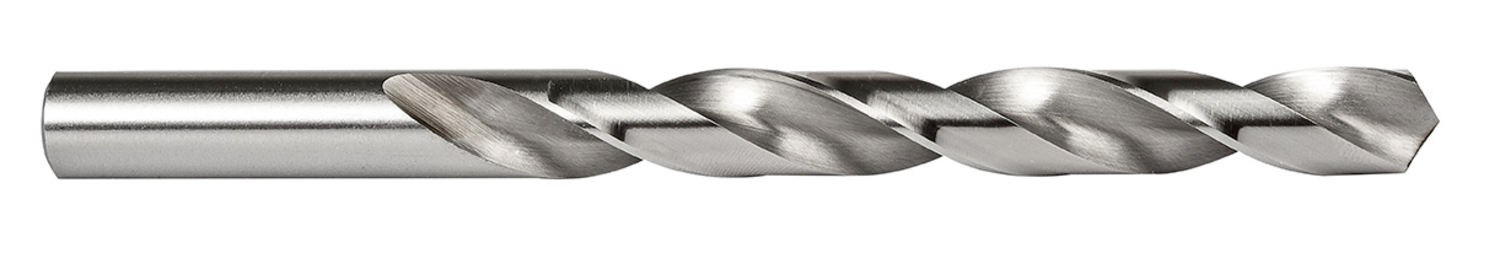

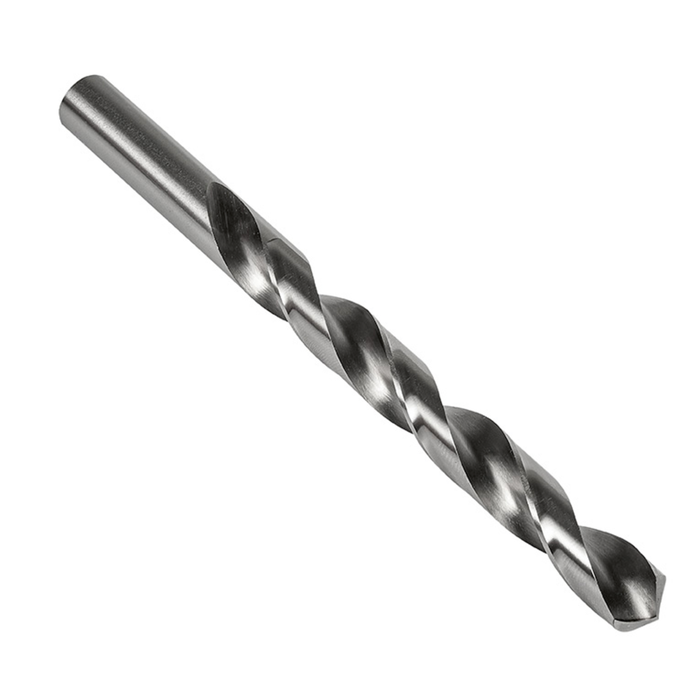

Jobber length drill with straight shank, diameter 0.2090" (N4) with an overall length of 3.3/4" and flute length of 2.1/2" according to ANSI standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.63 - $3.63
$3.63
$3.63 - $3.63
$3.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.209

Cutting Diameter - mm (DC): 5.31

Drill Point Angle - deg: 118

Flute Length: 2.5

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.75

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 18604

MFG Part Number: 5999053
