R5661/64

R5661/64

SKU PRE5999530
by Precision Twist Drill
Possible Use:

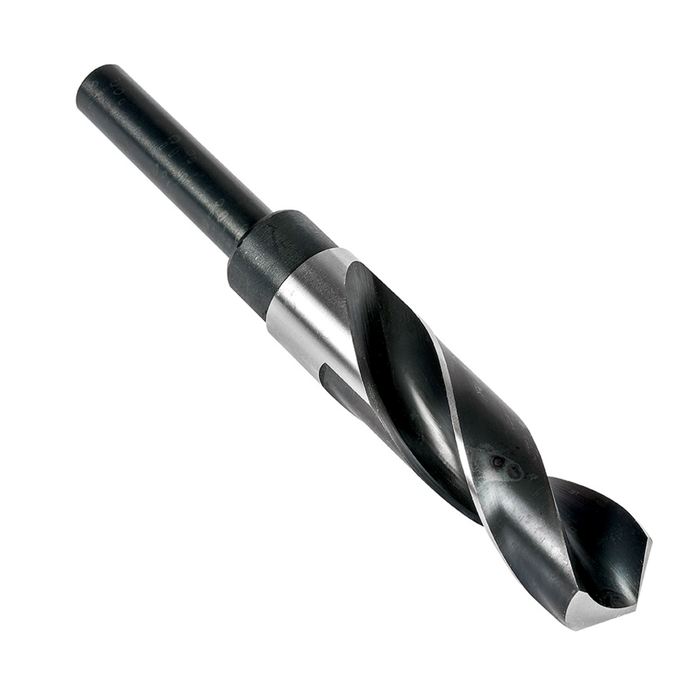

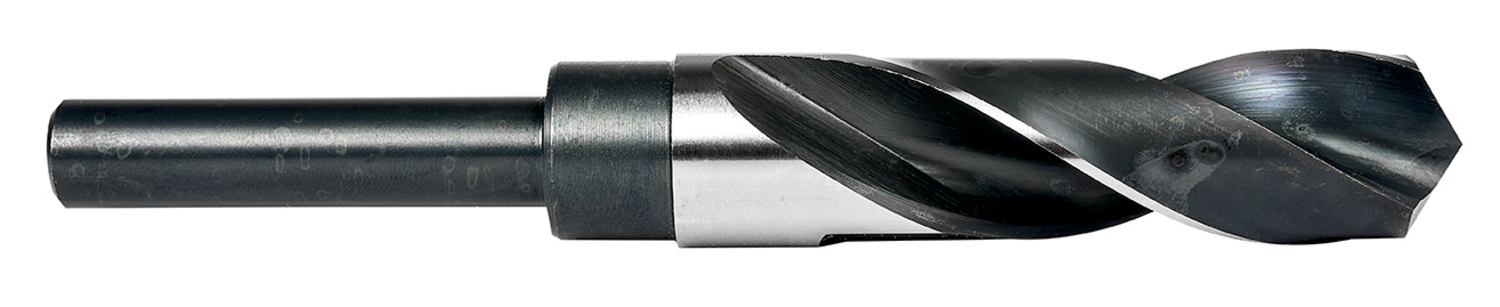

Jobber length drill with 1/2" reduced straight shank, diameter 0.9531" (61/64) with an overall length of 6" and flute length of 3" according to ANSI standard with 118° point angle, HSS with bright + steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$80.61 - $80.61
$80.61
$80.61 - $80.61
$80.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

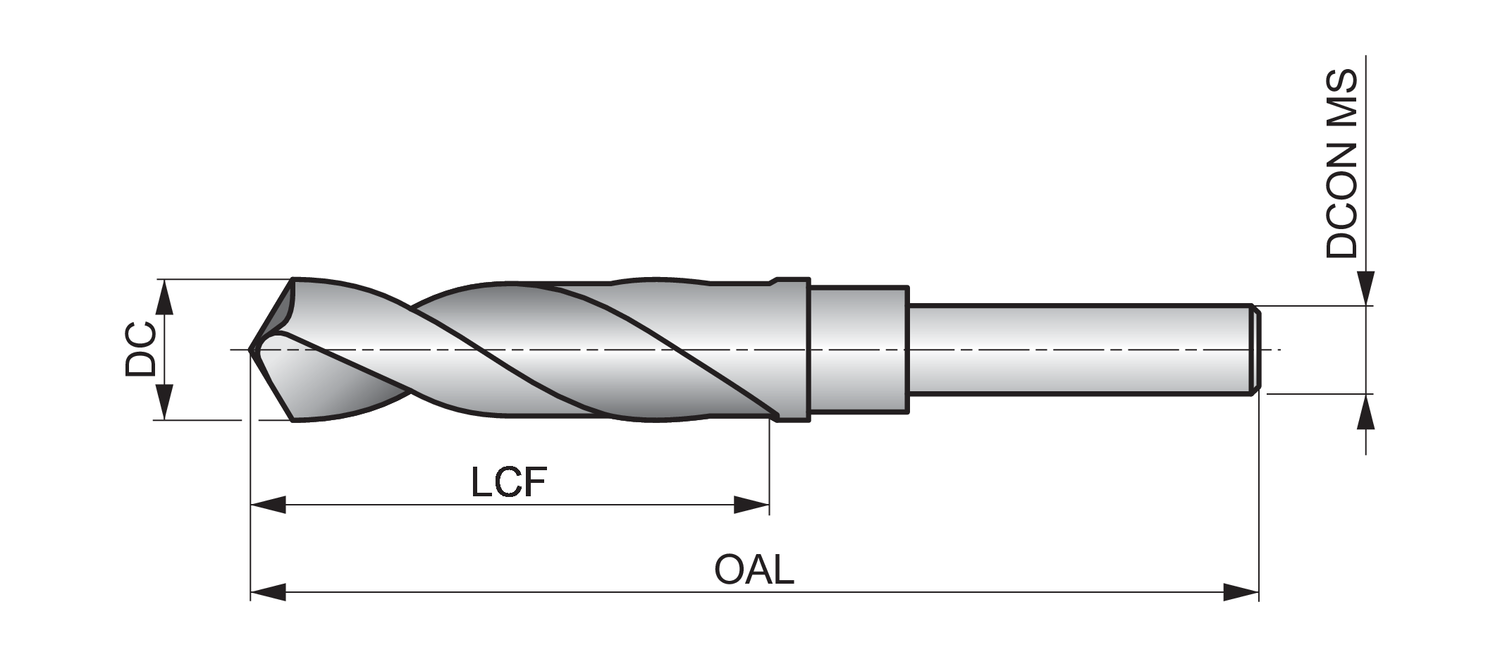

Material: HSS

Cutting Diameter - in (DC): 0.9531

Cutting Diameter - mm (DC): 24.21

Drill Point Angle - deg: 118

Flute Length: 3.0

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.0

Connetion Diameter: 0.5

Tool Direction: Right

Shank: Reduced Cylindrical shank

Fractional: 61/64

Grade: Bright/ST

EDP: 91461

MFG Part Number: 5999530
