E000TINM8

E000TINM8

SKU DOR6196639
by Dormer Pramet
Primary Use: Possible Use:

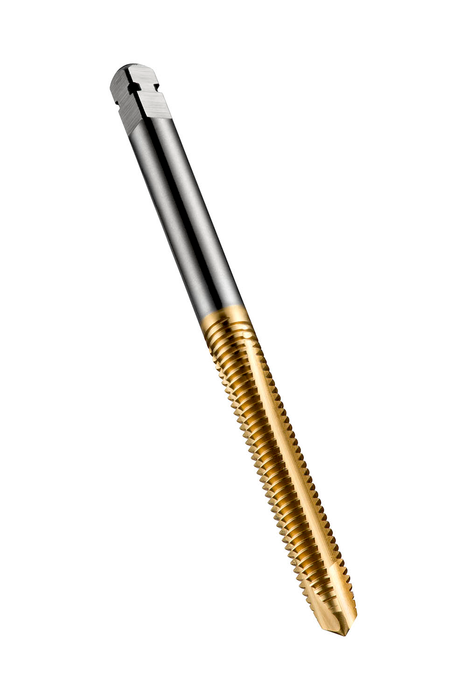

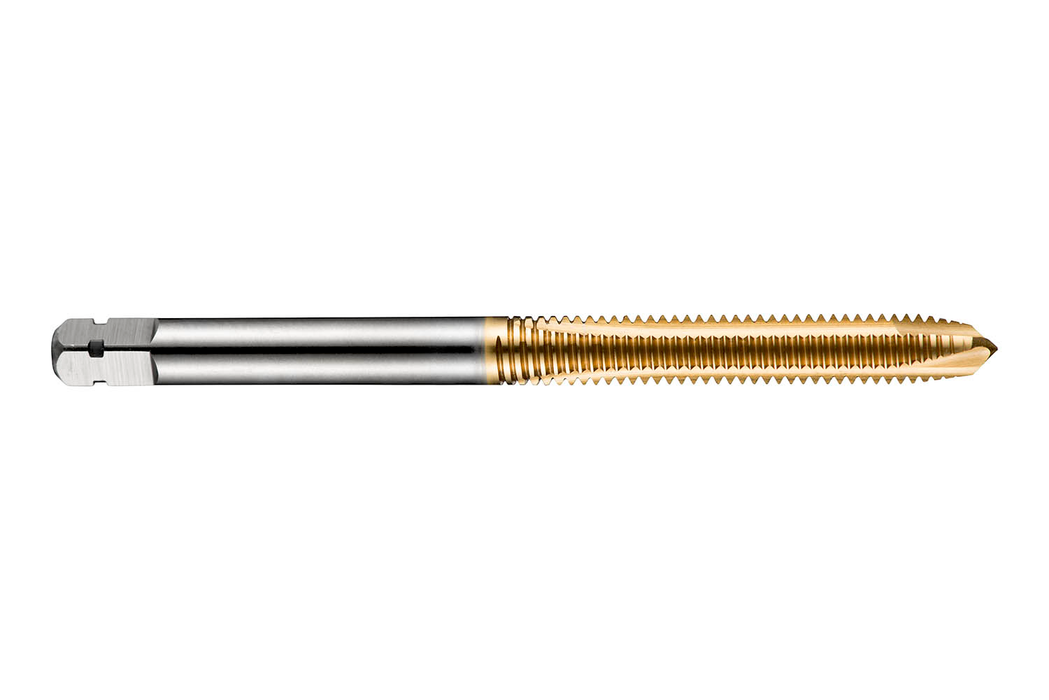

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$28.09 - $28.09
$28.09
$28.09 - $28.09
$28.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.8346

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: 8

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 1.1417

Grade: TiN

EDP: 46196639

EAN: 7320760661970

MFG Part Number: 6196639
