E297M22

E297M22

SKU DOR6290563
by Dormer Pramet
Primary Use:

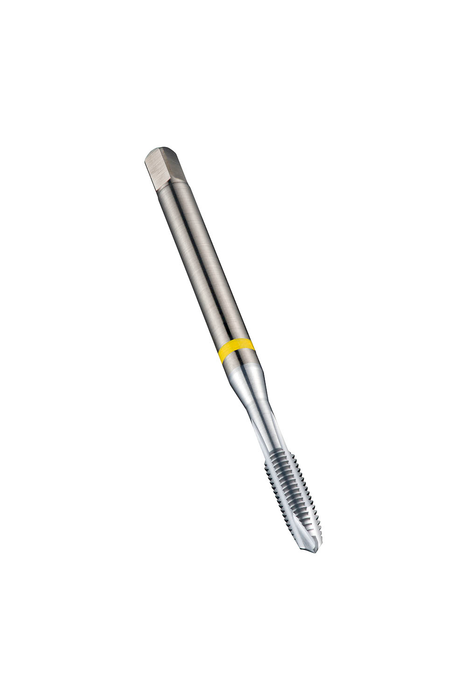

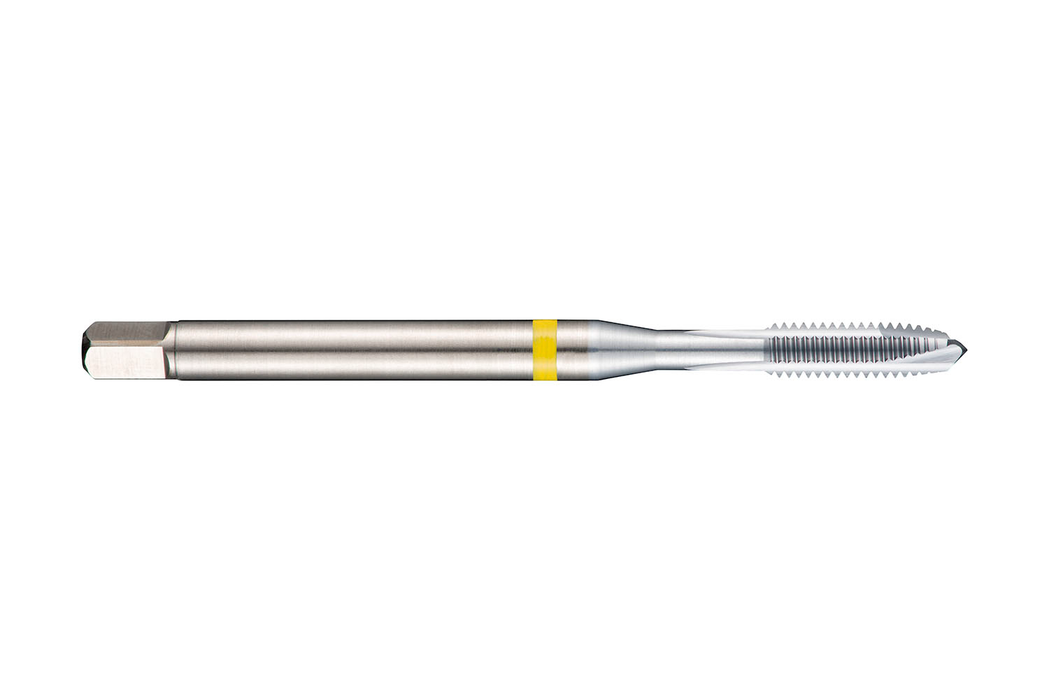

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$172.60 - $172.60
$172.60
$172.60 - $172.60
$172.60
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

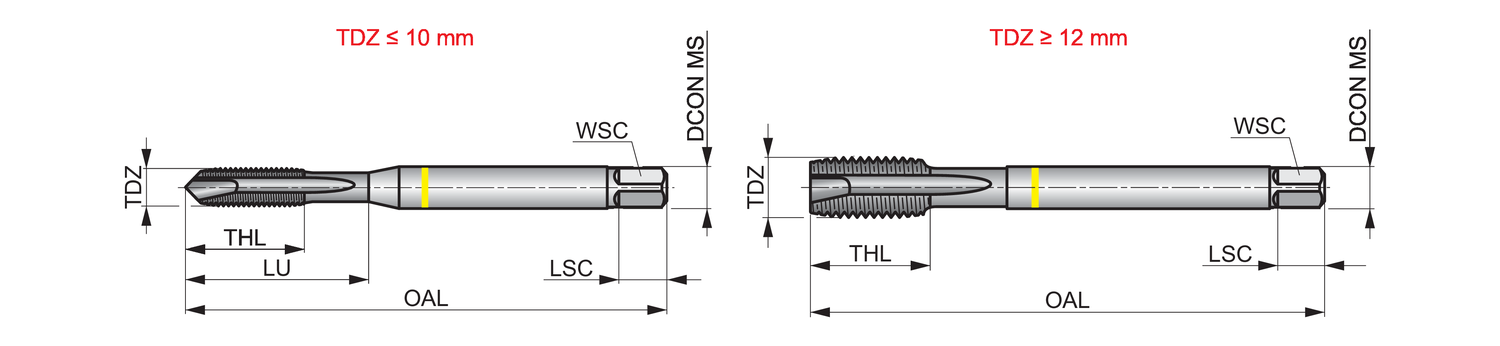

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.5118

Connetion Diameter: 0.7087

Tool Direction: Right

Diameter Size: 22

Pitch - mm: 2.5

Pitch - in: 0.0984

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Flash Crome

EDP: 46290563

EAN: 7320760662830

MFG Part Number: 6290563
