S2298.0

S2298.0

SKU DOR6706525
by Dormer Pramet
Primary Use:

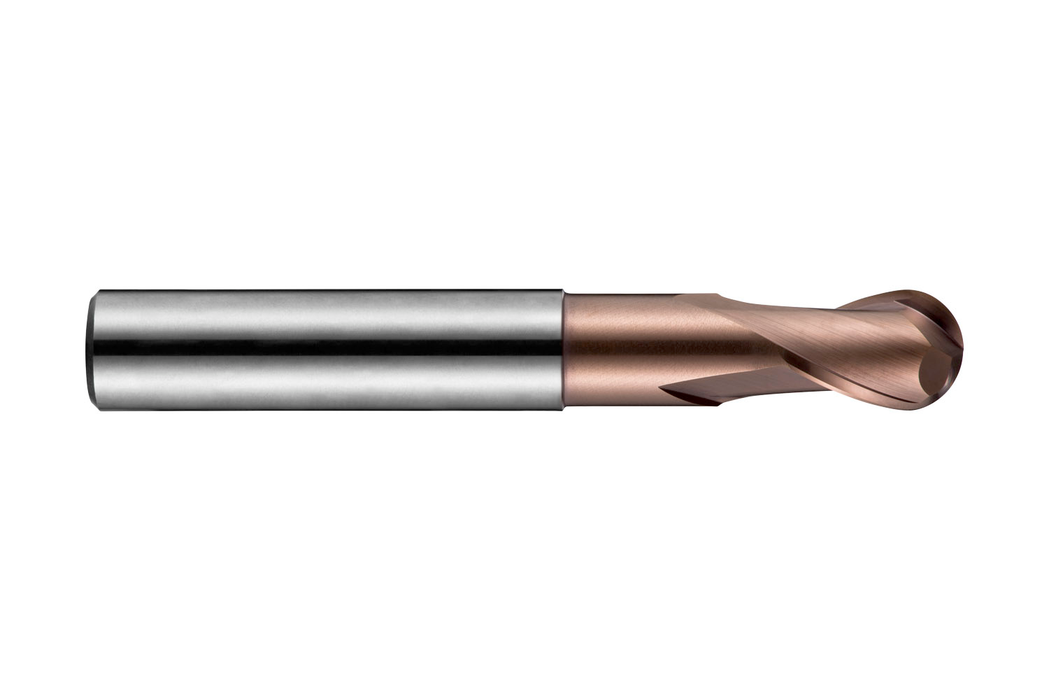

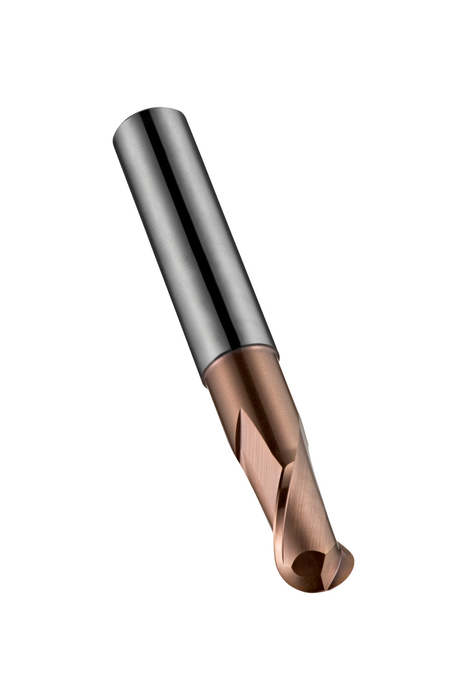

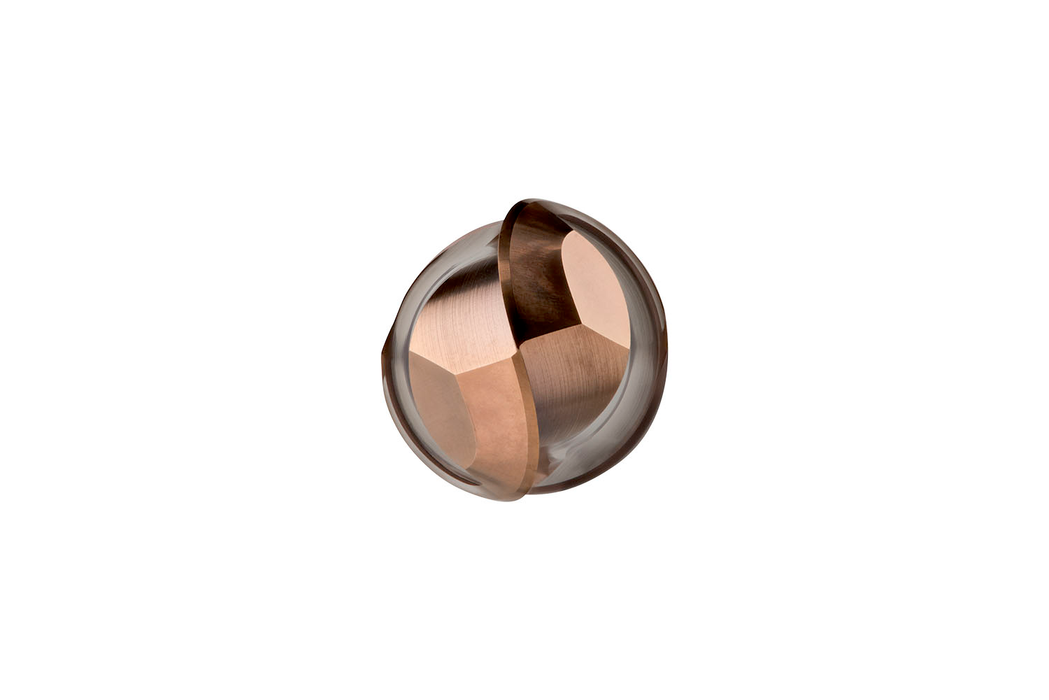

Extra short series ball-nose end mill with 2 flutes, diameter 8mm with 12mm length of cut, 64mm overall length, 30mm reach with neck relief and 4mm full profile radius, according to DORMER standard with a 8mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$107.83 - $107.83
$107.83
$107.83 - $107.83
$107.83
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

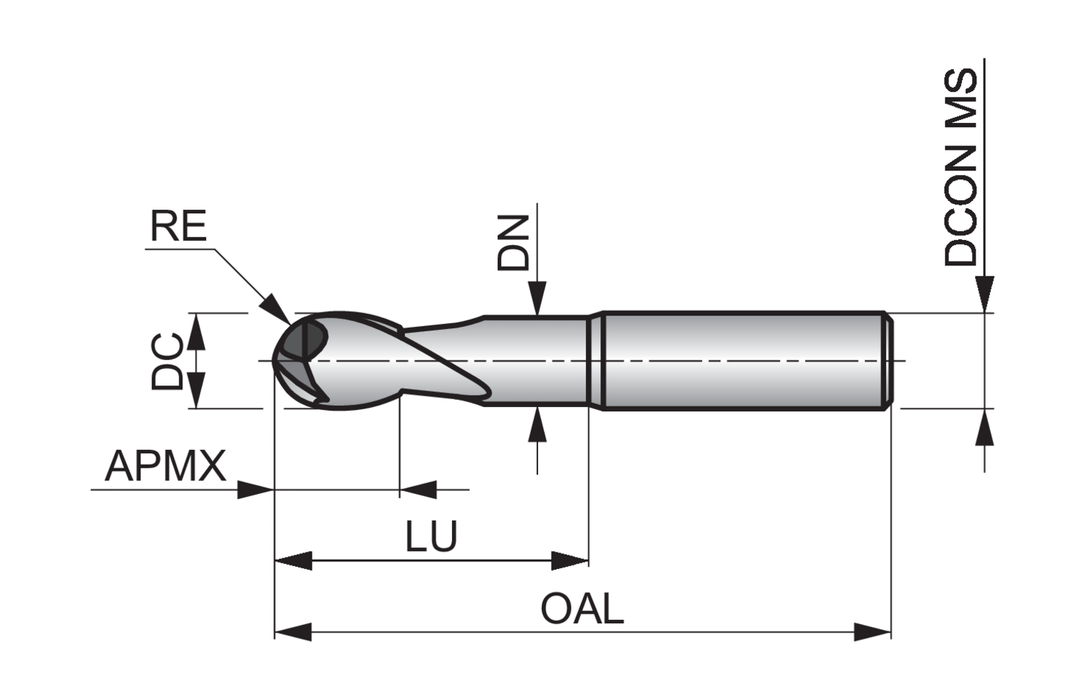

Material: HM

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Overall Length (OAL): 2.5197

Connetion Diameter: 0.315

Max. Depth of Cut: 0.4724

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Corner Radius - in: 0.1575

Corner Radius - mm: 4

Cutting Edge Count: 2

EDP: 46706525

EAN: 7320760680742

MFG Part Number: 6706525
