S53312.0

S53312.0

SKU DOR6706550
by Dormer Pramet
Primary Use:

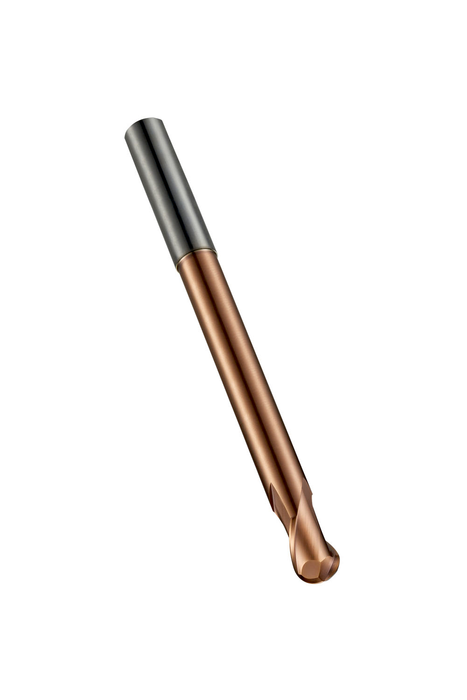

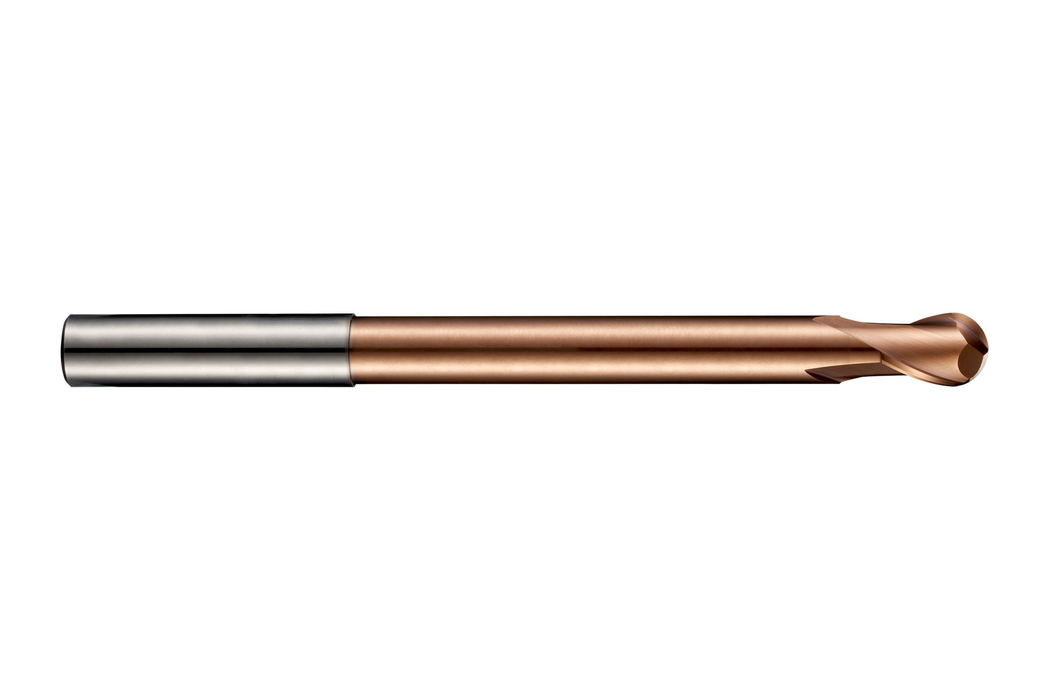

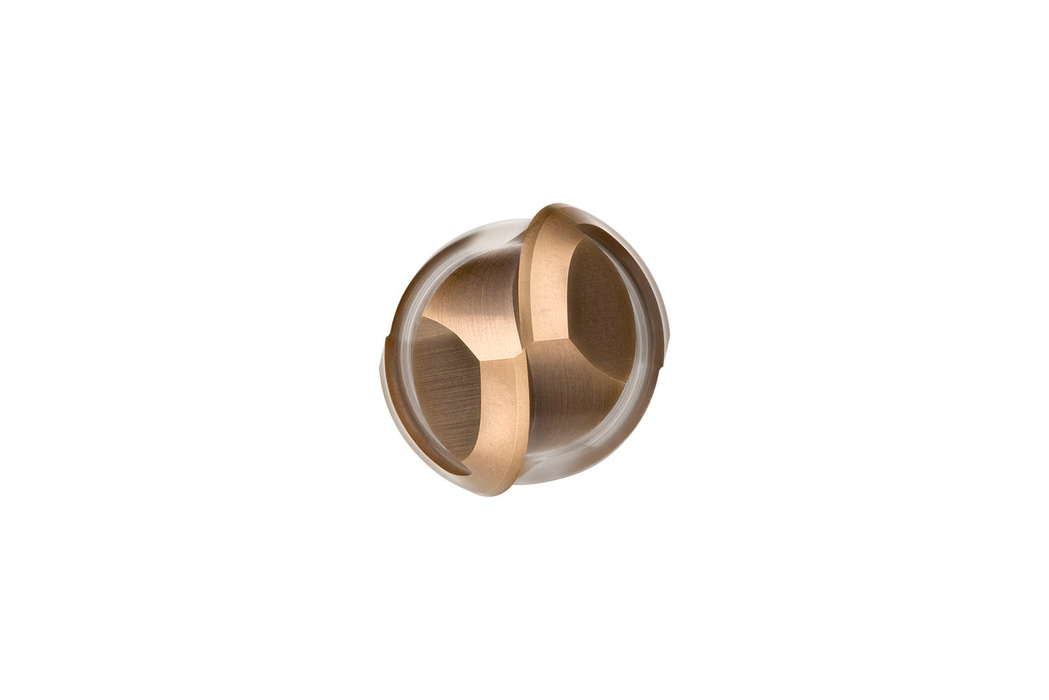

Extra short series ball-nose end mill with 2 flutes, diameter 12mm with 16mm length of cut, 125mm overall length, 85mm reach with neck relief and 6mm full profile radius, according to DORMER standard with a 12mm plain shank, solid carbide with TiSiN coating, 30° helix and -10° rake angle for copy milling in hardened materials

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$278.03 - $278.03
$278.03
$278.03 - $278.03
$278.03
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

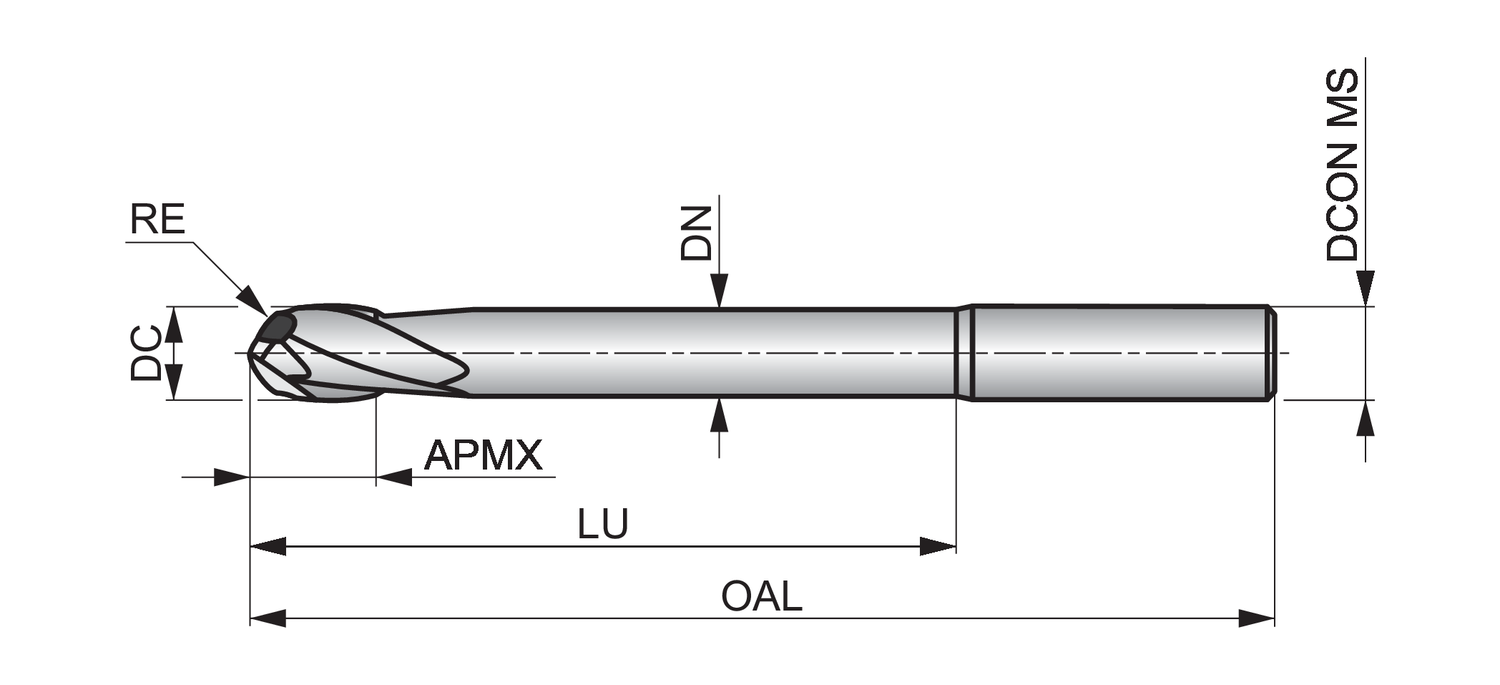

Material: HM

Cutting Diameter - in (DC): 0.4724

Cutting Diameter - mm (DC): 12.0

Overall Length (OAL): 4.9213

Connetion Diameter: 0.4724

Max. Depth of Cut: 0.6299

Shank: Cylindrical shank DIN 6535 HA

Grade: TiSiN

Corner Radius - in: 0.2362

Corner Radius - mm: 6

Cutting Edge Count: 2

EDP: 46706550

EAN: 7320760680995

MFG Part Number: 6706550
