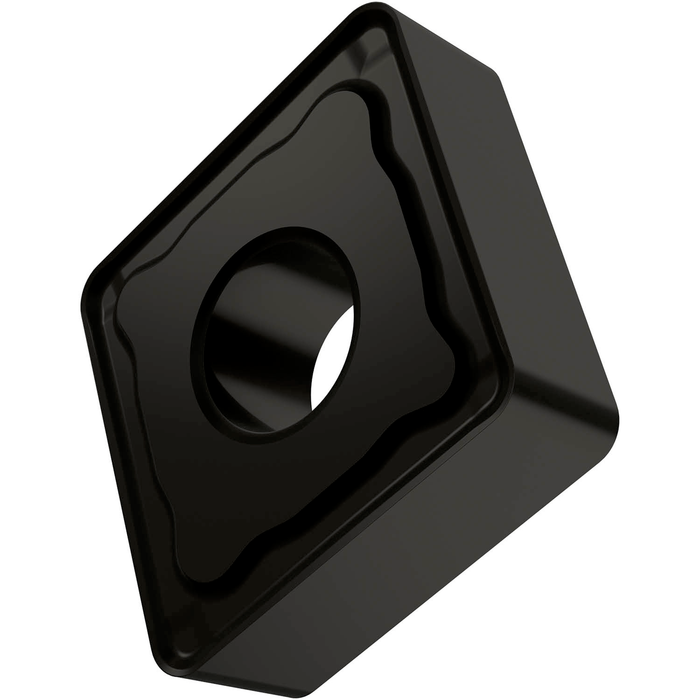

CNMG 542-NM:T7335

CNMG 542-NM:T7335

SKU PRA6754756
by Pramet

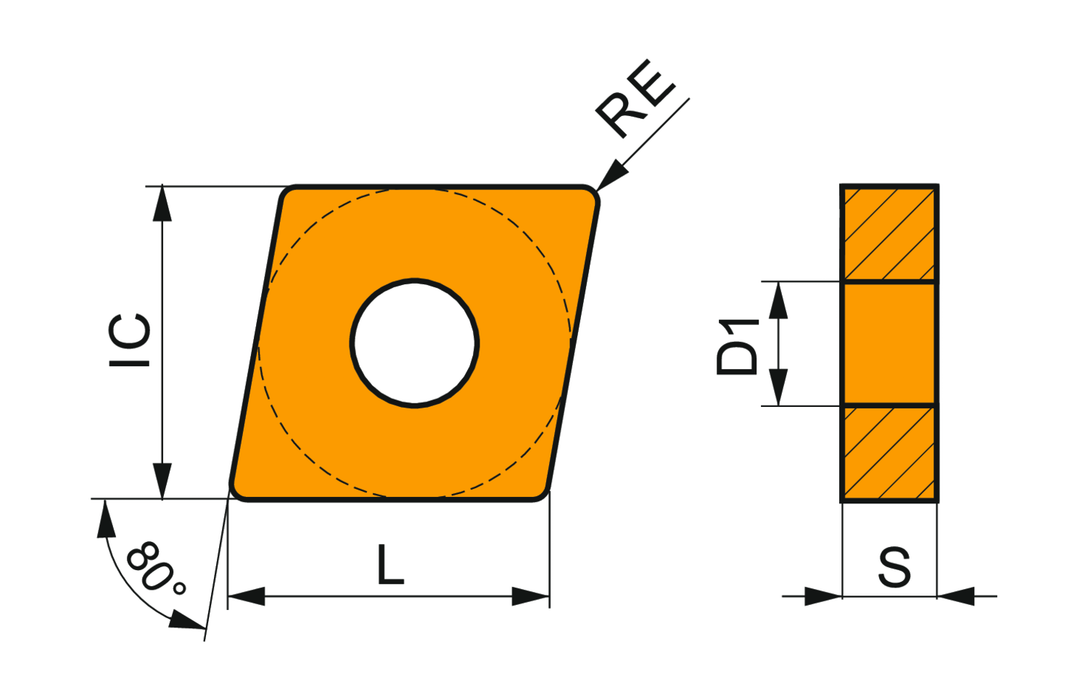

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 5/8", 1/4" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20 - M40 and S15 - S25, for fine to heavy machining of stainless-steels and super-alloys

Sold in packs of: 10

For more information about this product, click here
$18.67 - $18.67
$18.67
$18.67 - $18.67
$18.67
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed circle diameter - inch (IC): 0.625

Coating: T7335

Chip Breaker: NM

Insert Design: CNMG

Corner Radius (IN): 0.031
