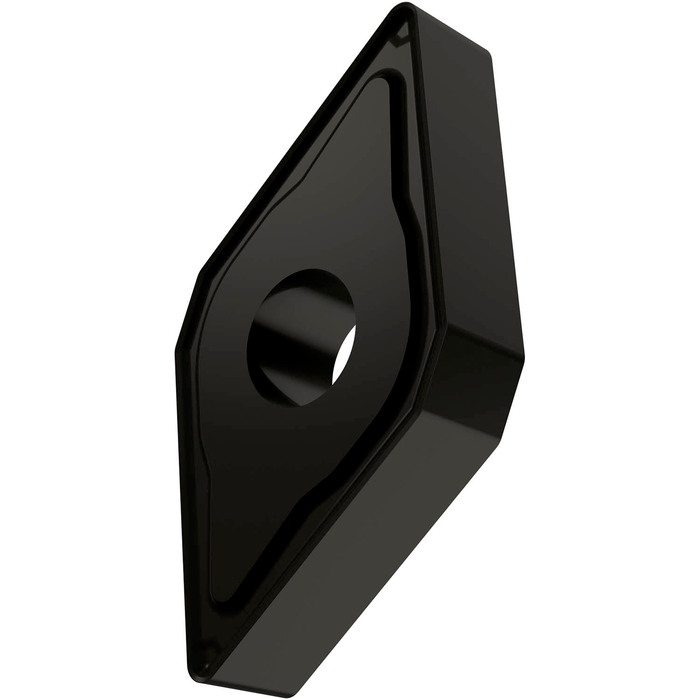

DNMG 443-NM:T7335

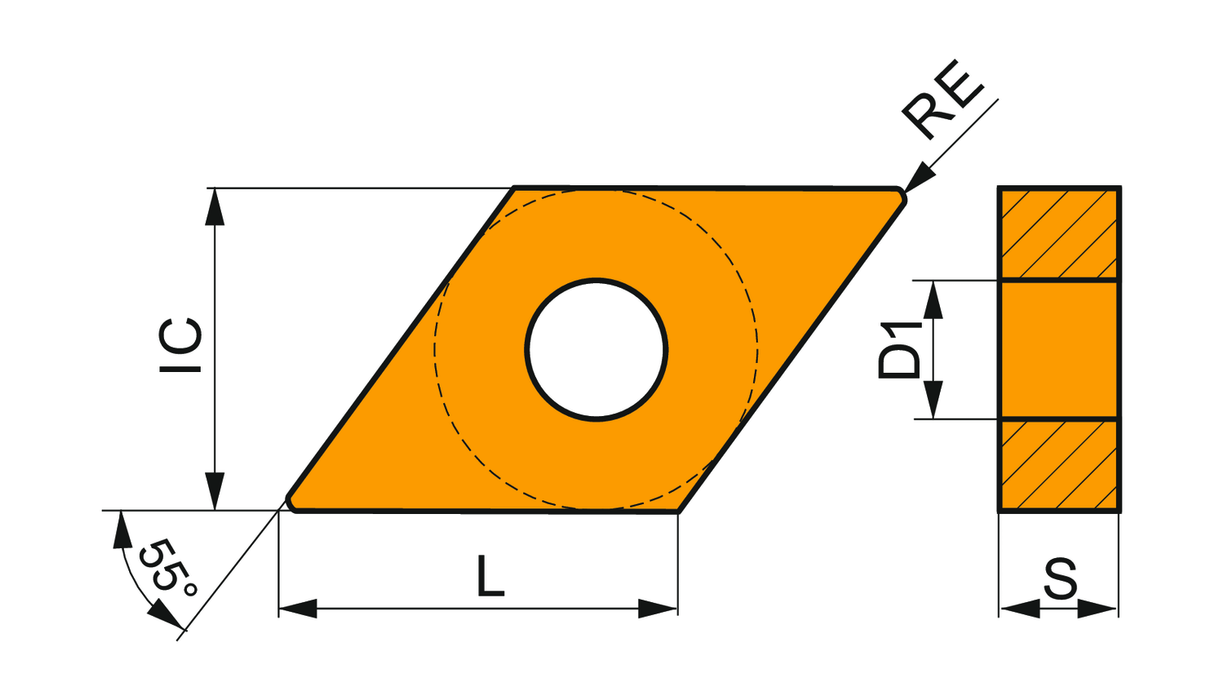

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20 - M40 and S15 - S25, for fine to heavy machining of stainless-steels and super-alloys
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.5
Coating: T7335
Chip Breaker: NM
Insert Design: DNMG
Corner Radius (IN): 0.047
