TNMG 666-RM:T9335

TNMG 666-RM:T9335

SKU DOR6754990
by Dormer Pramet
Primary Use: Possible Use:

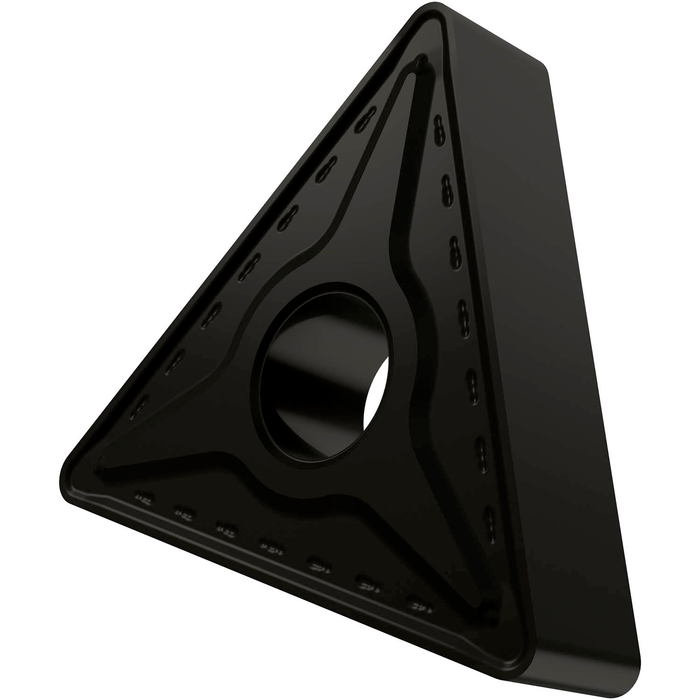

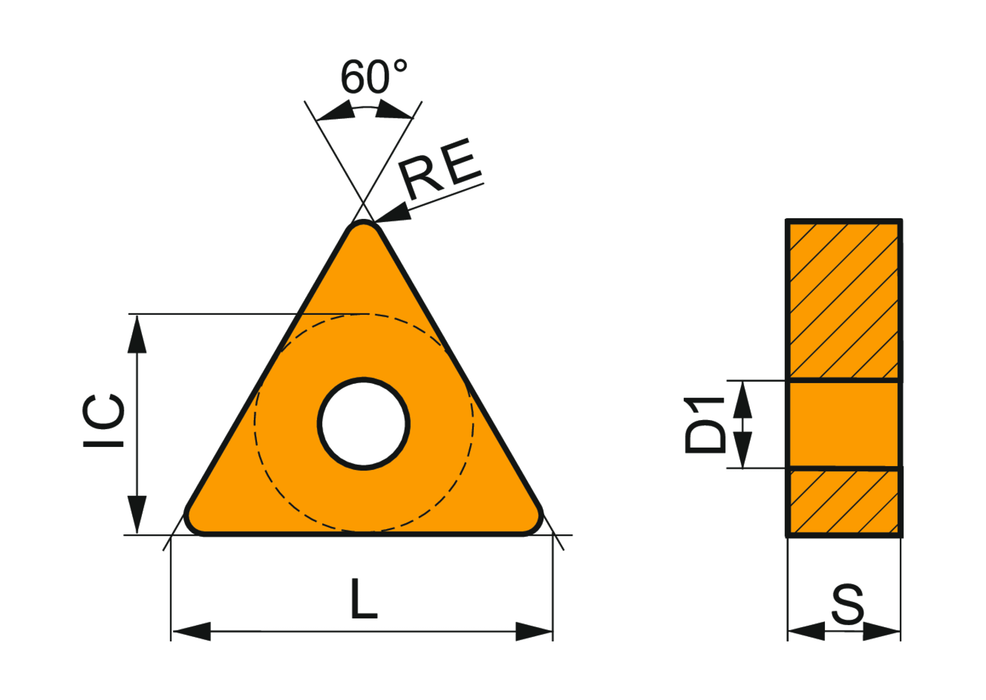

Double-sided negative turning insert, triangular with inscribed circle diameter of 3/4", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20 - P45 and M15 - M40, for medium to heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$34.79 - $34.79
$34.79
$34.79 - $34.79
$34.79
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.429

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.375

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Possible use

Inscribed Circle Diameter: 0.75

Chip Breaker: RM

Grade: T9335

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 6754990

EAN: 3603602903563

MFG Part Number: 6754990
