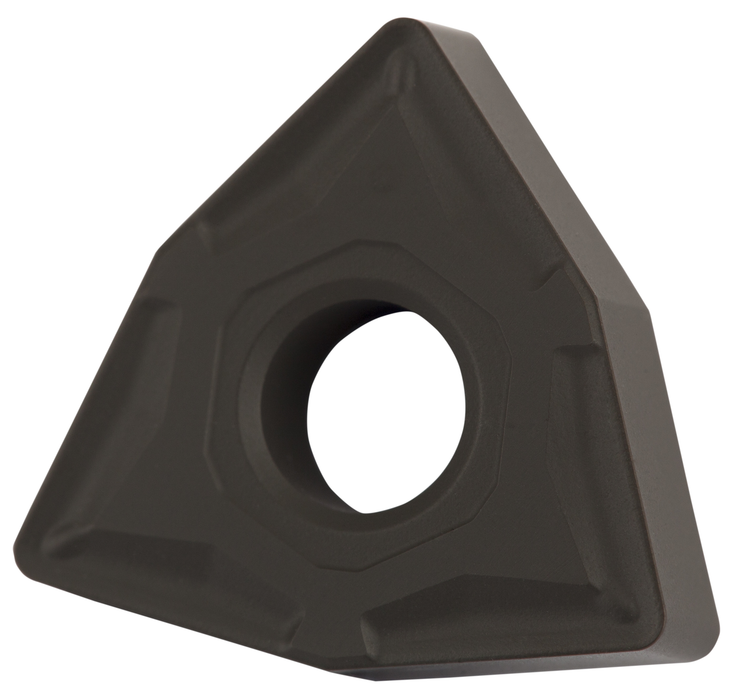

WNMG 431-M:T5315

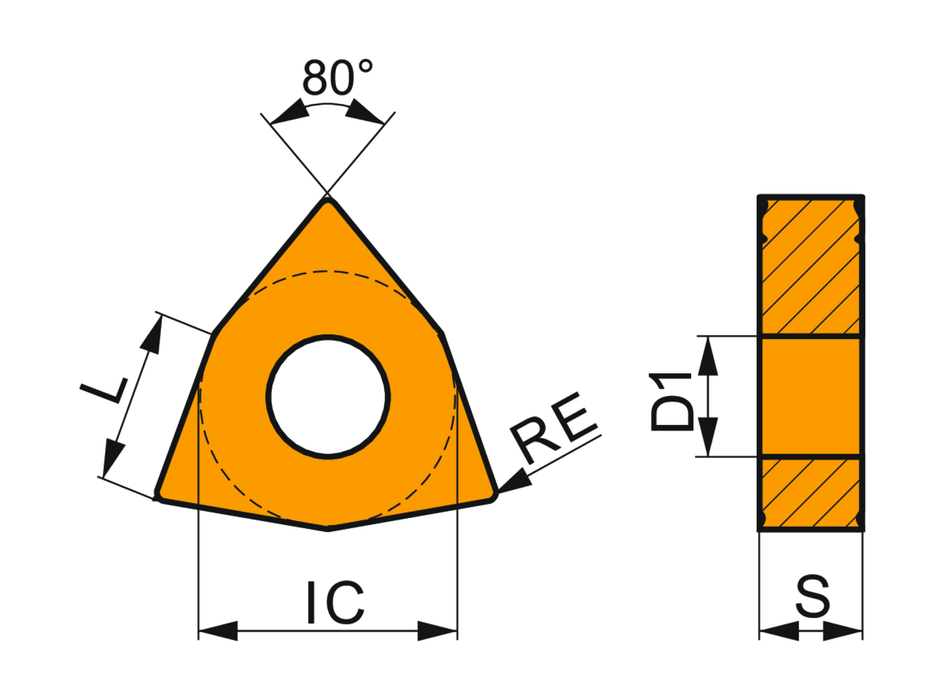

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 1/2", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to heavy machining of cast-irons
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.5
Coating: T5315
Chip Breaker: M
Insert Design: WNMG
Corner Radius (IN): 0.016
