E08K-STFCR 06-R

E08K-STFCR 06-R

SKU DOR6760497
by Dormer Pramet
Primary Use:

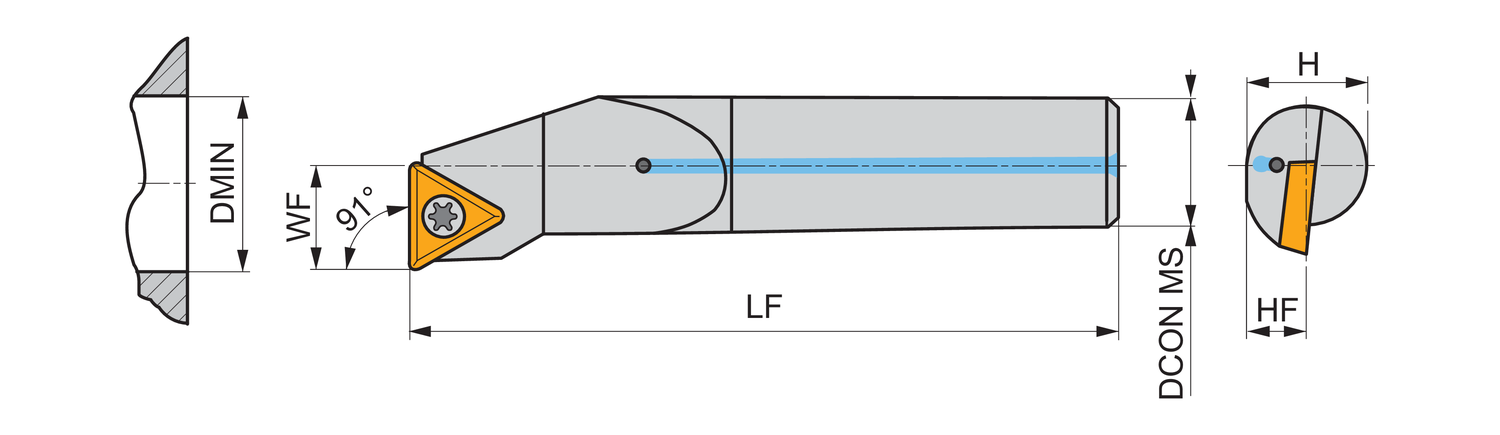

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 3.97mm, 1.98mm thick (ISO designation TC.. 06T1.. ), right hand 90° end cutting with off-set shank, carbide with coolant hole, 8mm diameter x 125mm long for taper boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$431.00 - $431.00
$431.00
$431.00 - $431.00
$431.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Through Coolant: 1

Connetion Diameter: 0.315

Height: 0.315

Minimum Bore: 0.433

Tool Direction: Left

Insert Designation: ["TC.. 06T1.."]

Functional Length: 4.921

EDP: 6760497

EAN: 3603602958433

MFG Part Number: 6760497
