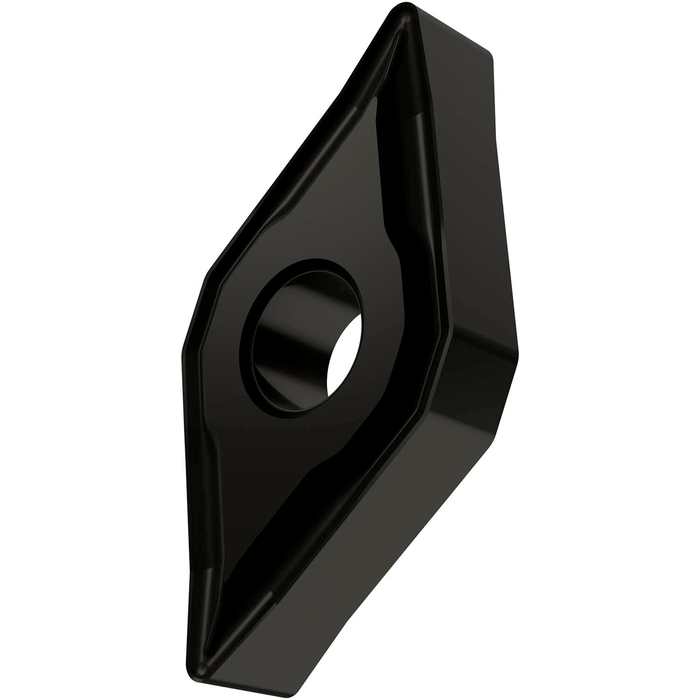

DNMG 431-NF:T9325

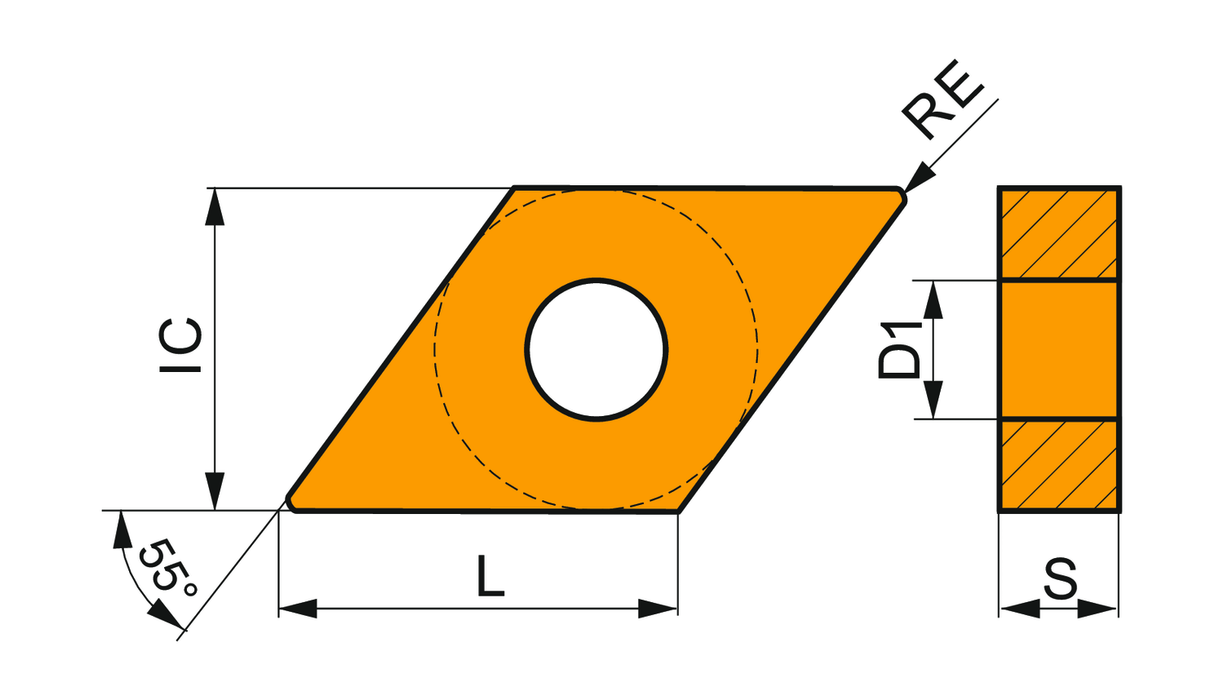

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.5
Coating: T9325
Chip Breaker: NF
Insert Design: DNMG
Corner Radius (IN): 0.016
