CNMG 866-RM:T7335

CNMG 866-RM:T7335

SKU DOR6922694
by Dormer Pramet
Primary Use: Possible Use:

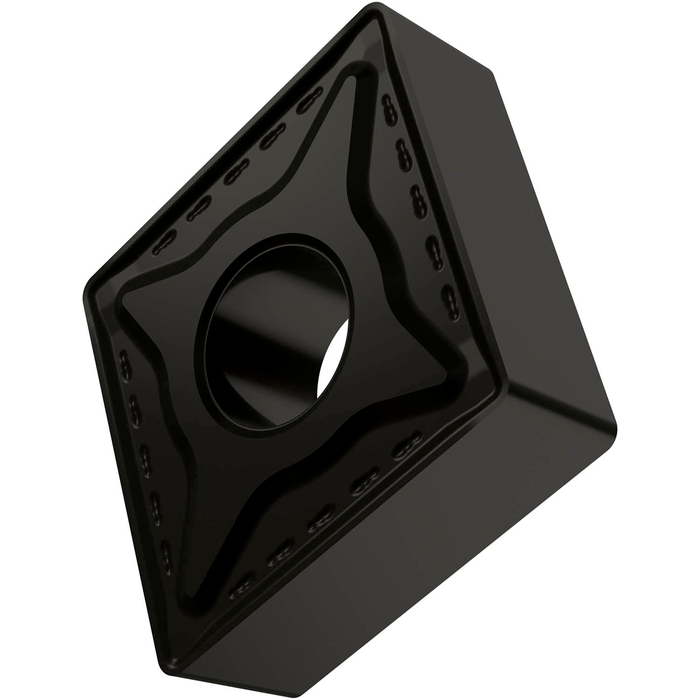

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for medium to heavy machining of stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$54.50 - $54.50
$54.50
$54.50 - $54.50
$54.50
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.591

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Shape Code: gid://shopify/Metaobject/130432860222

Insert Thickness: 0.375

Steel and Cast Steel: Possible use

Stainless Steel: Primary use

High Temp Alloys: Possible use

Inscribed Circle Diameter: 1.0

Chip Breaker: RM

Grade: T7335

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 6922694

EAN: 3603603075207

MFG Part Number: 6922694
