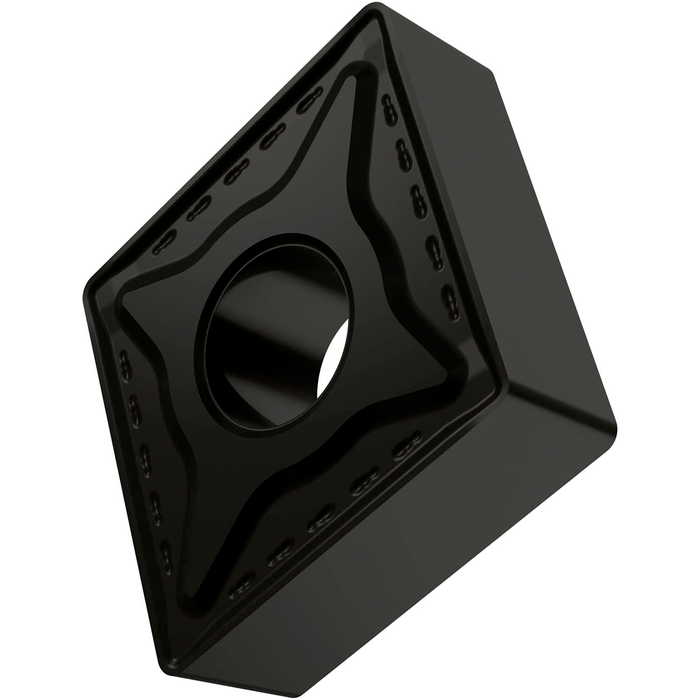

CNMG 643-RM:T7325

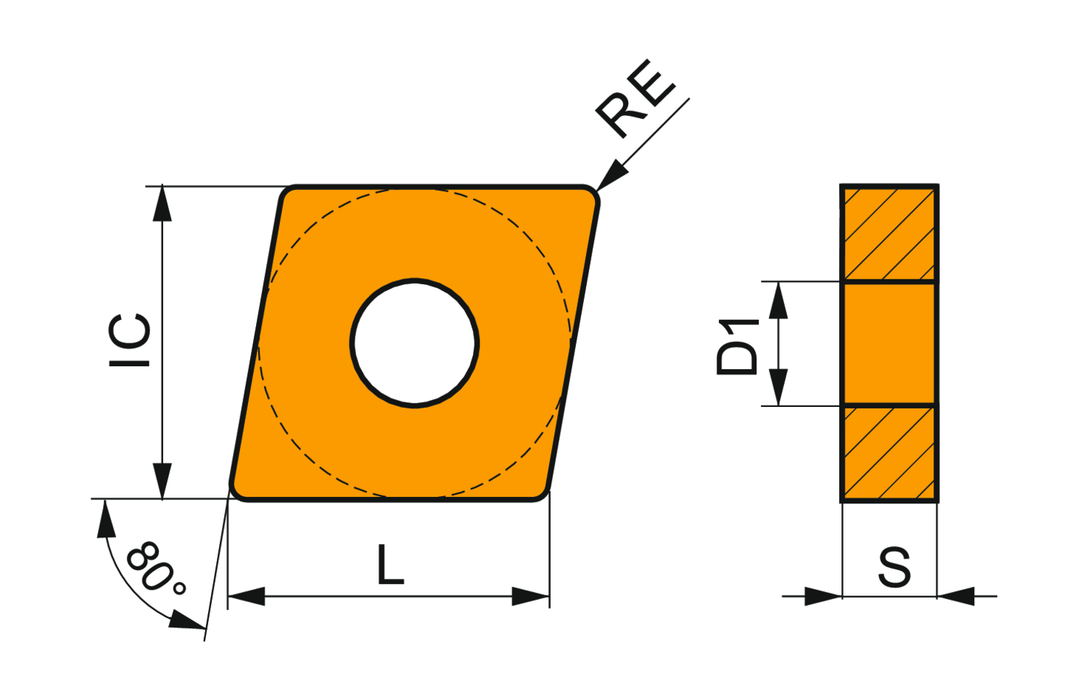

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for medium to heavy machining of stainless-steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.75
Coating: T7325
Chip Breaker: RM
Insert Design: CNMG
Corner Radius (IN): 0.047
