CNMG 644-NMR:T7325

CNMG 644-NMR:T7325

SKU DOR7156229
by Dormer Pramet
Primary Use: Possible Use:

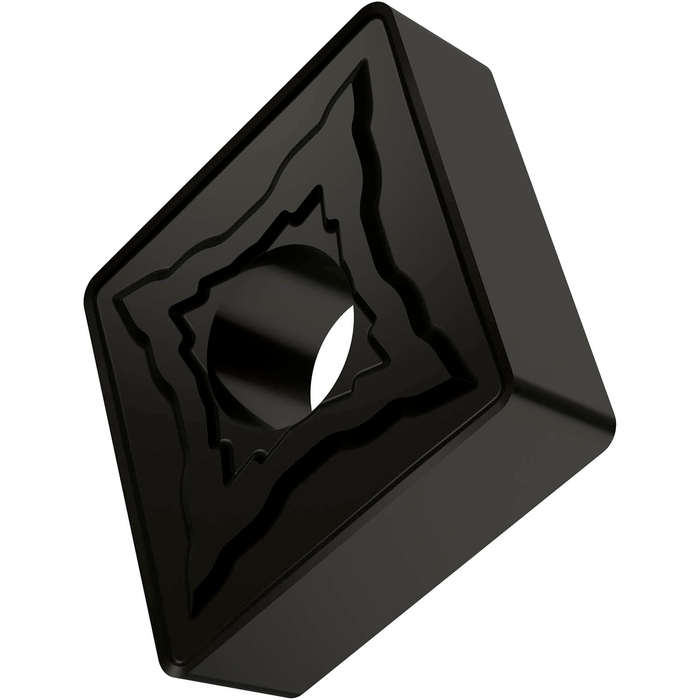

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NMR, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10 - M25 and S10 - S25, for fine to heavy machining of stainless-steels and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$26.64 - $26.64
$26.64
$26.64 - $26.64
$26.64
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.315

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Shape Code: gid://shopify/Metaobject/130432860222

Insert Thickness: 0.25

Steel and Cast Steel: Possible use

Stainless Steel: Primary use

High Temp Alloys: Primary use

Inscribed Circle Diameter: 0.75

Chip Breaker: NMR

Grade: T7325

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 7156229

EAN: 3603603163508

MFG Part Number: 7156229
