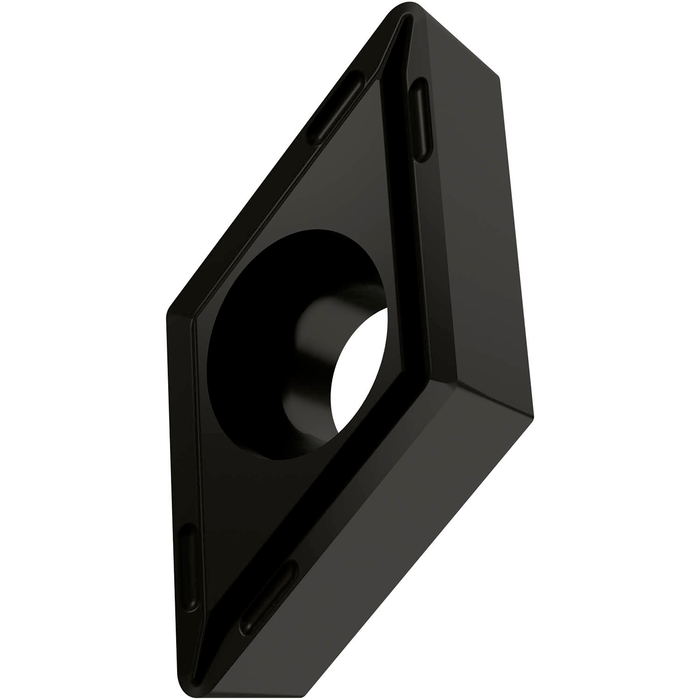

DCMT 21.50.5-FF2:T9325

DCMT 21.50.5-FF2:T9325

SKU DOR7156730
by Dormer Pramet
Primary Use: Possible Use:

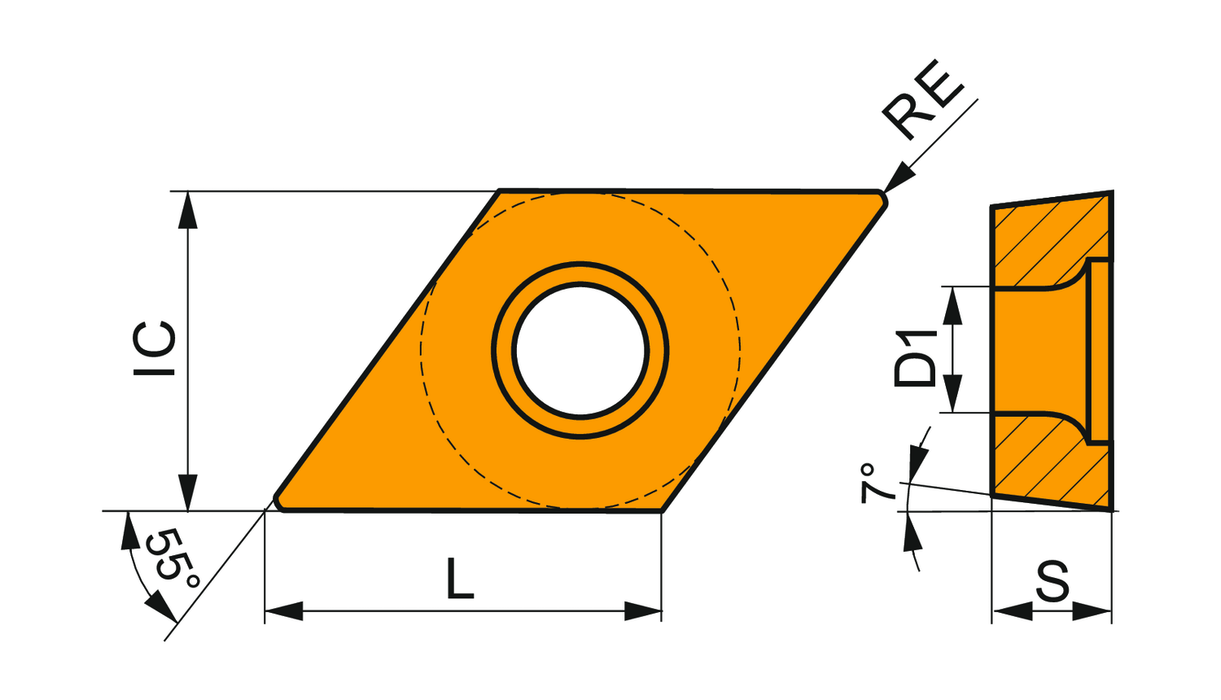

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FF2, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$10.75 - $10.75
$10.75
$10.75 - $10.75
$10.75
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.059

Insert Design: DCMT

Insert Shape Code: D - rhombic 55° included angle

Insert Shape Code: gid://shopify/Metaobject/130432892990

Insert Thickness: 0.094

Steel and Cast Steel: Primary use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.25

Chip Breaker: FF2

Grade: T9325

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7156730

EAN: 3603603166714

MFG Part Number: 7156730
