A1233/32S

A1233/32S

SKU DOR7189761
by Dormer Pramet
Primary Use: Possible Use:

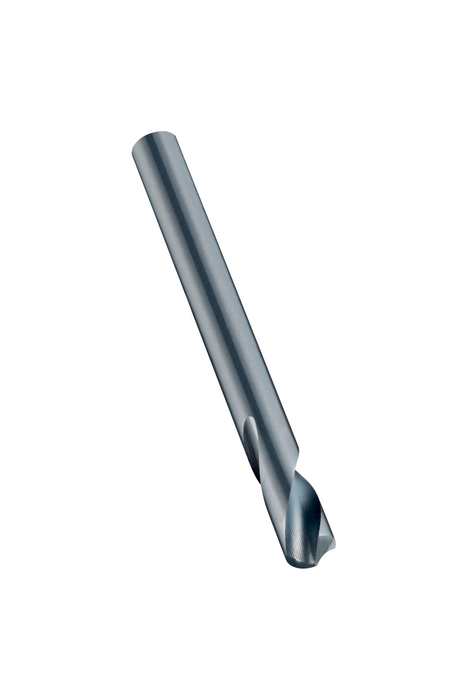

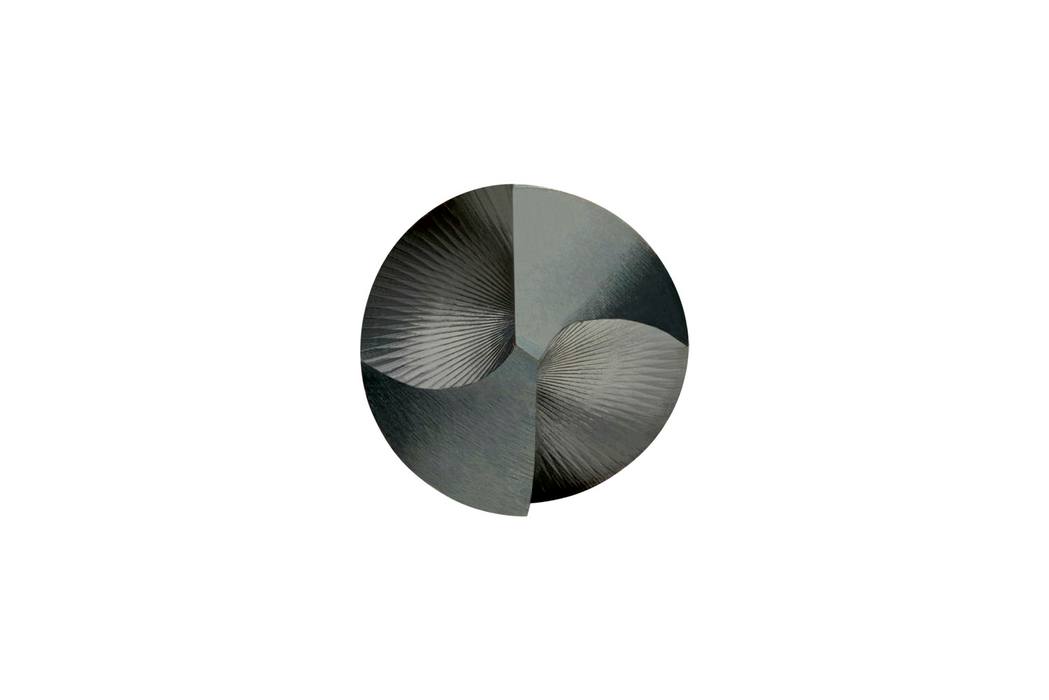

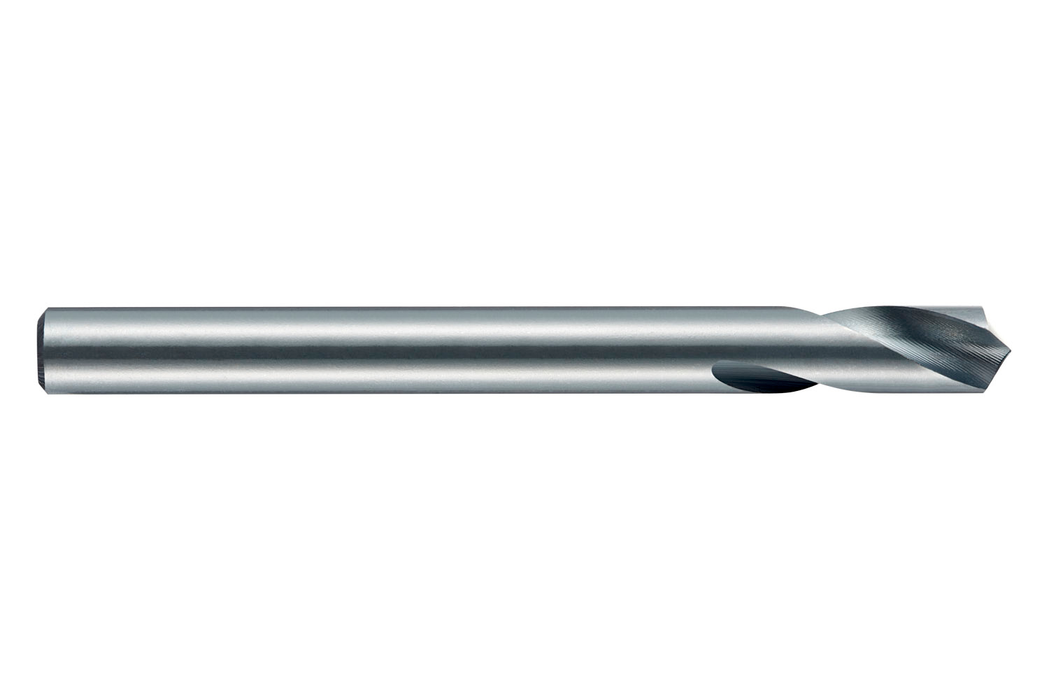

Sheet metal drill with straight shank, diameter 0.0937" (3/32S) with an overall length of 43mm and flute length of 14mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$2.77 - $2.77
$2.77
$2.77 - $2.77
$2.77
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

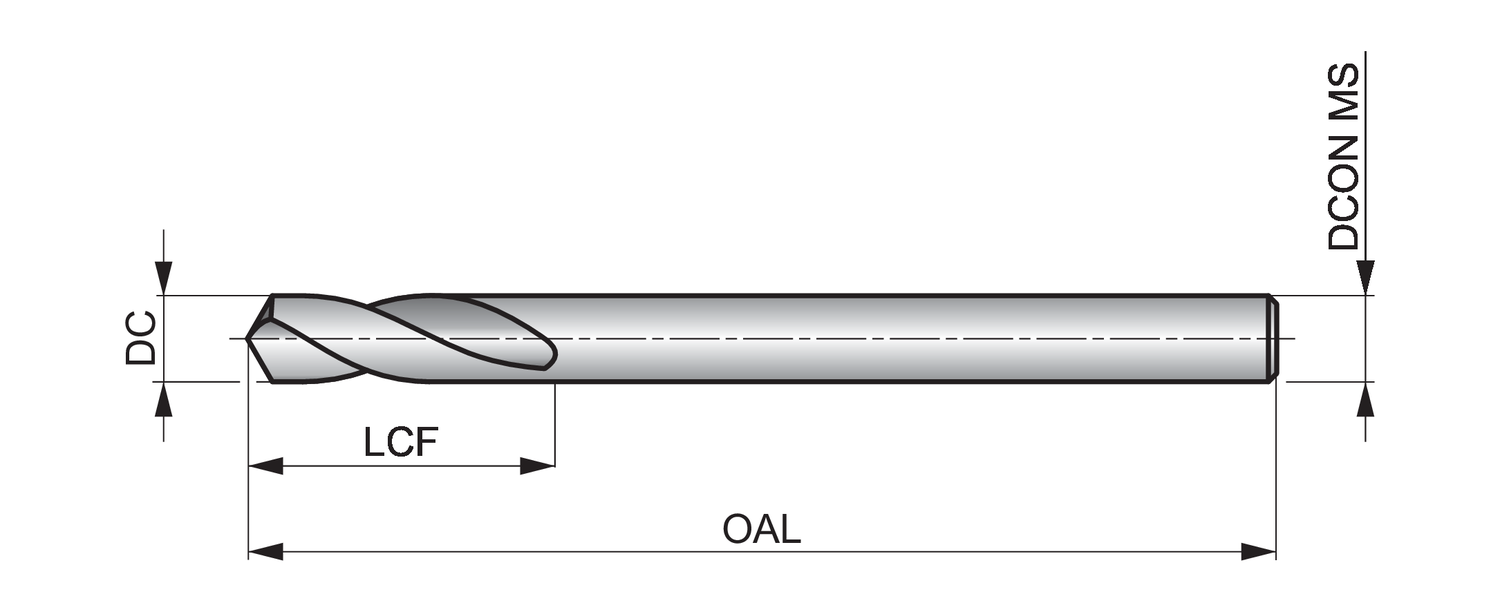

Cutting Diameter - in (DC): 0.0937

Cutting Diameter - mm (DC): 2.38

Drill Point Angle - deg: 120

Flute Length: 0.5512

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.6929

Connetion Diameter: 0.0937

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/32

Grade: Steam Tempered

EDP: 47189761

EAN: 7320760707784

MFG Part Number: 7189761
