A1233.0S

A1233.0S

SKU DOR7189763
by Dormer Pramet
Primary Use: Possible Use:

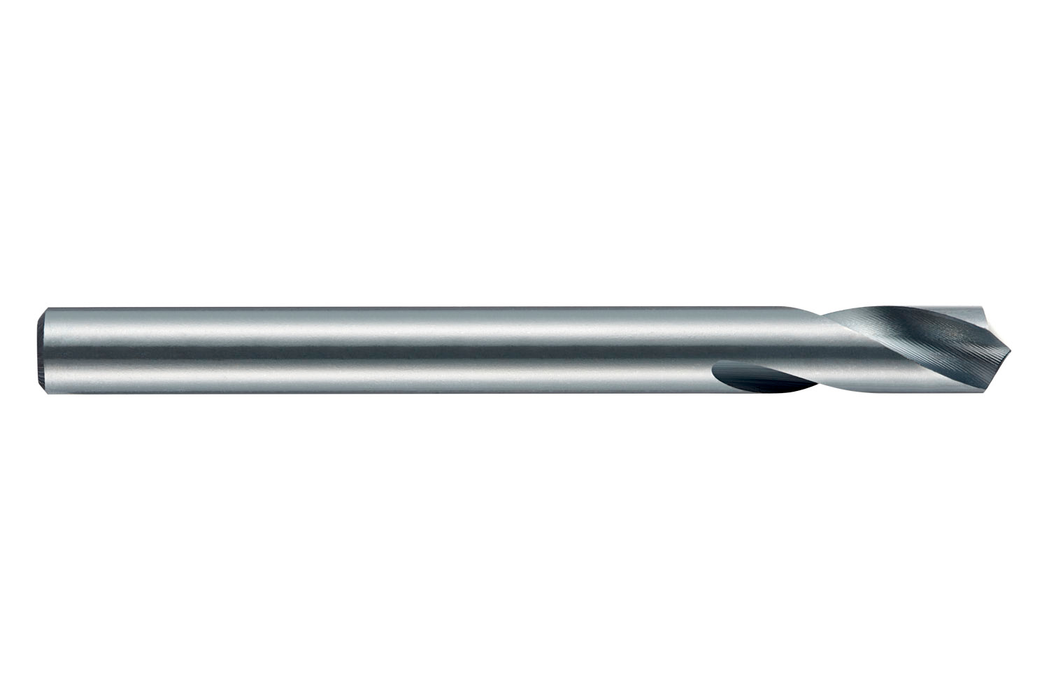

Sheet metal drill with straight shank, diameter 3mm with an overall length of 46mm and flute length of 16mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$2.56 - $2.56
$2.56
$2.56 - $2.56
$2.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

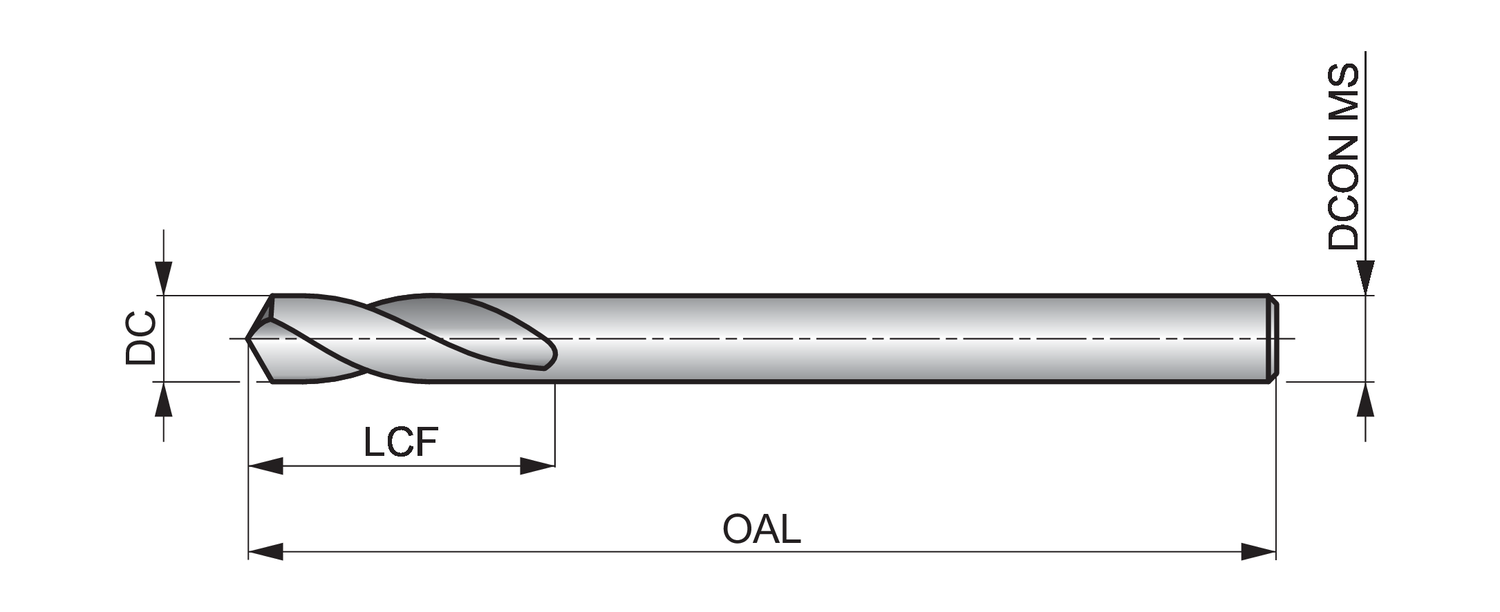

Cutting Diameter - in (DC): 0.1181

Cutting Diameter - mm (DC): 3.0

Drill Point Angle - deg: 120

Flute Length: 0.6299

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.811

Connetion Diameter: 0.1181

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 47189763

EAN: 7320760707807

MFG Part Number: 7189763
