A1233/16S

A1233/16S

SKU DOR7189785
by Dormer Pramet
Primary Use: Possible Use:

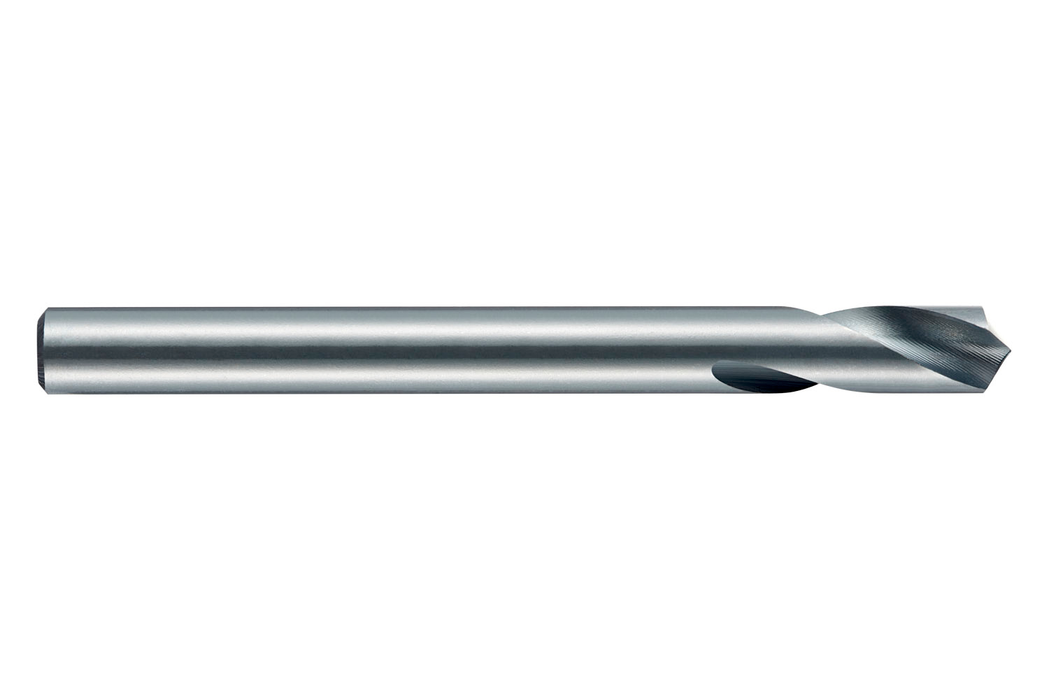

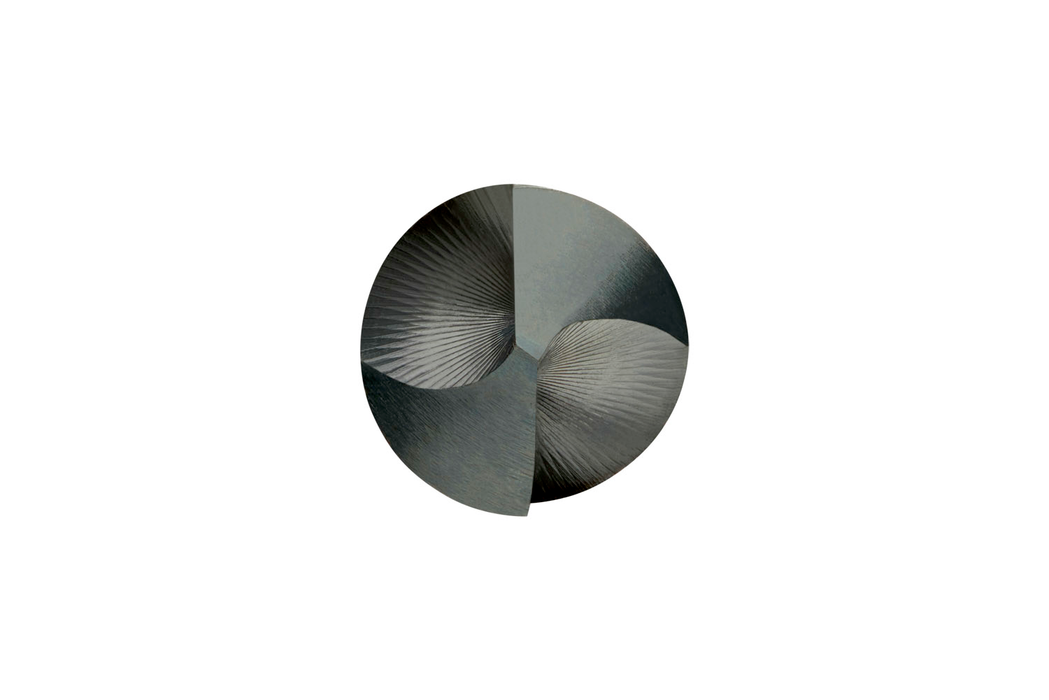

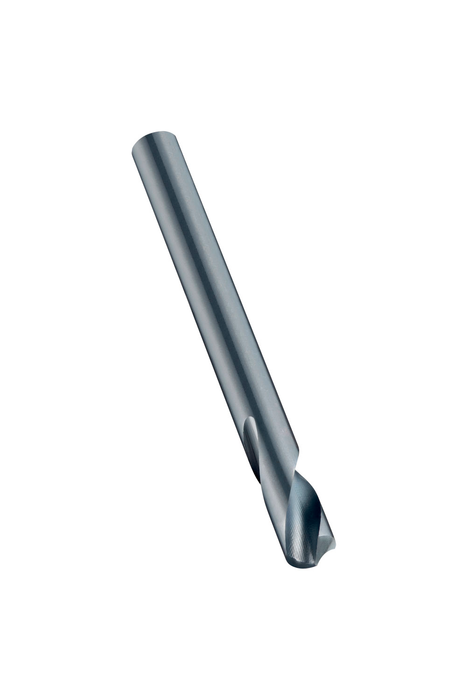

Sheet metal drill with straight shank, diameter 0.1875" (3/16S) with an overall length of 62mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$4.39 - $4.39
$4.39
$4.39 - $4.39
$4.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

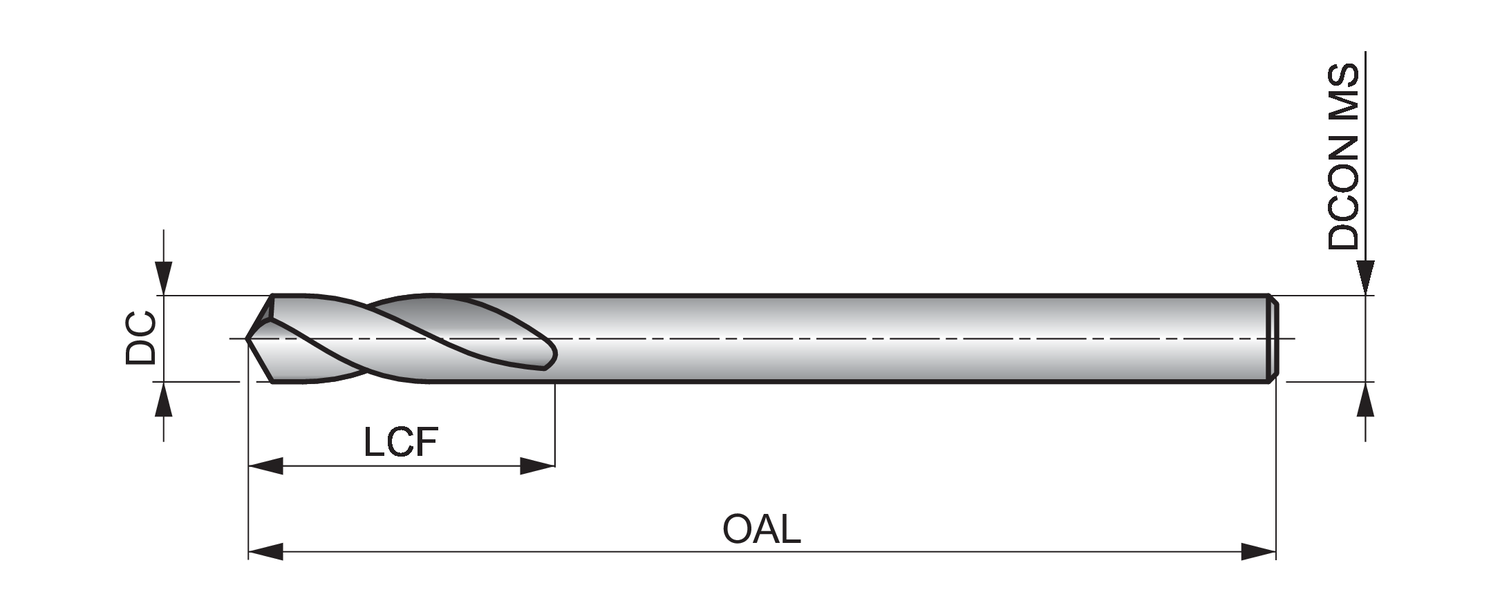

Material: HSS

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Drill Point Angle - deg: 120

Flute Length: 0.7087

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.4409

Connetion Diameter: 0.1874

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/16

Grade: Steam Tempered

EDP: 47189785

EAN: 7320760707913

MFG Part Number: 7189785
