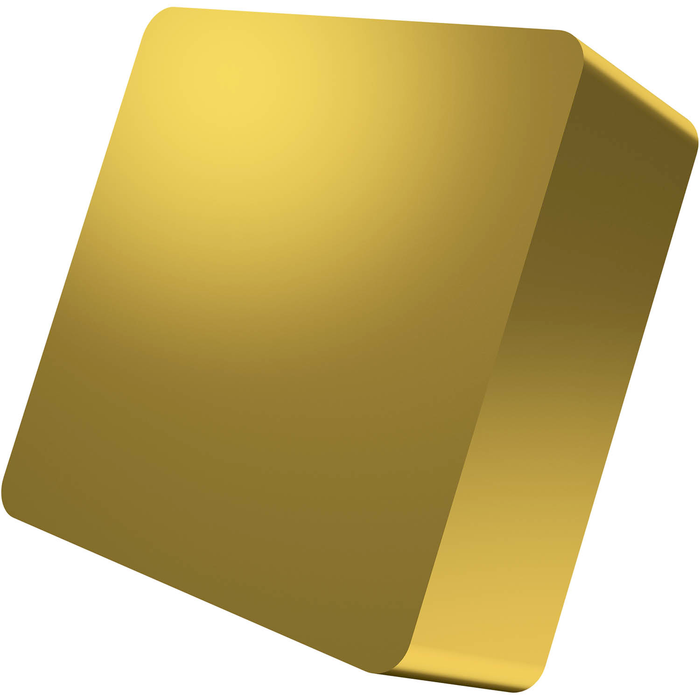

SNU 433:M8330

SNU 433:M8330

SKU DOR7451027
by Dormer Pramet
Primary Use: Possible Use:

Double-sided milling insert SNUN 1204 with a plane rake surface, square for a maximum depth of cut of .3543", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.57 - $12.57
$12.57
$12.57 - $12.57
$12.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

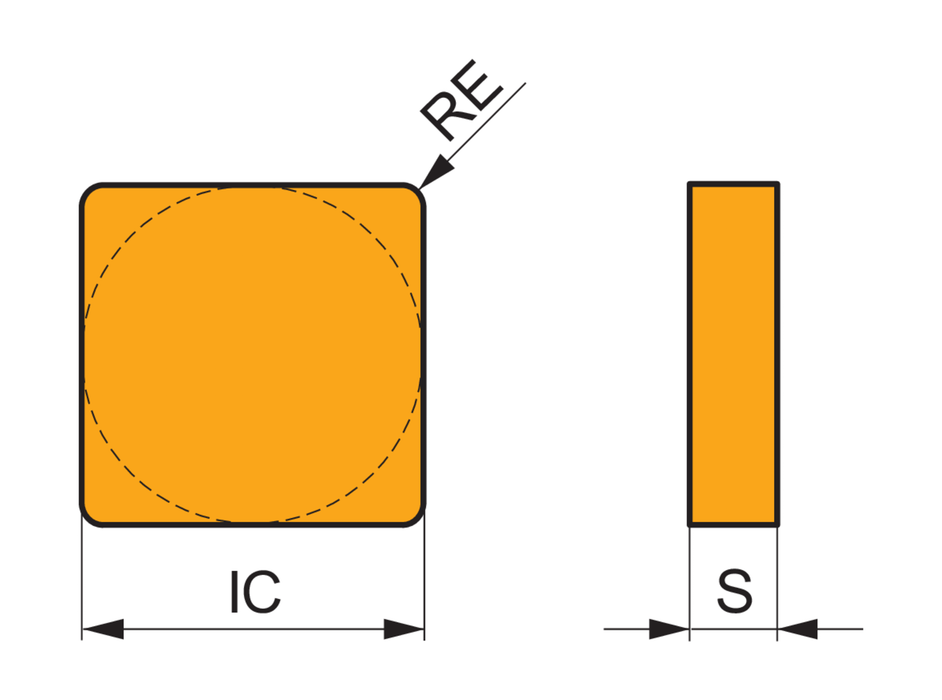

Max. Depth of Cut: 0.354

Insert Design: SNUN

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: No chipbreaker

Grade: M8330

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7451027

EAN: 3603603389366

MFG Part Number: 7451027
