S1139.0

S1139.0

SKU DOR7648617
by Dormer Pramet
Primary Use:

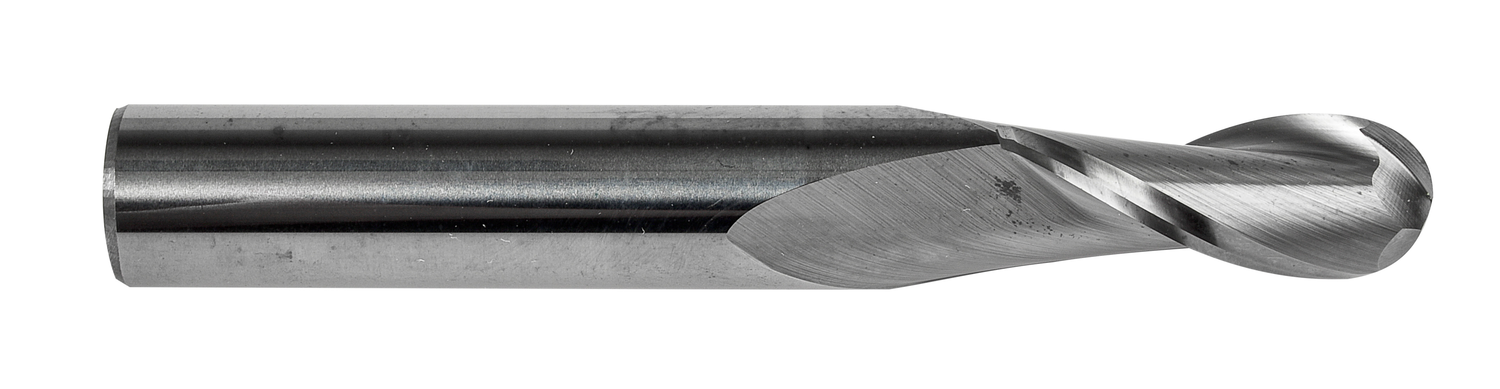

Regular length ball-nose end mill with 2 flutes, diameter 9mm with 22mm length of cut, 70mm overall length and 4.5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$52.86 - $52.86
$52.86
$52.86 - $52.86
$52.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

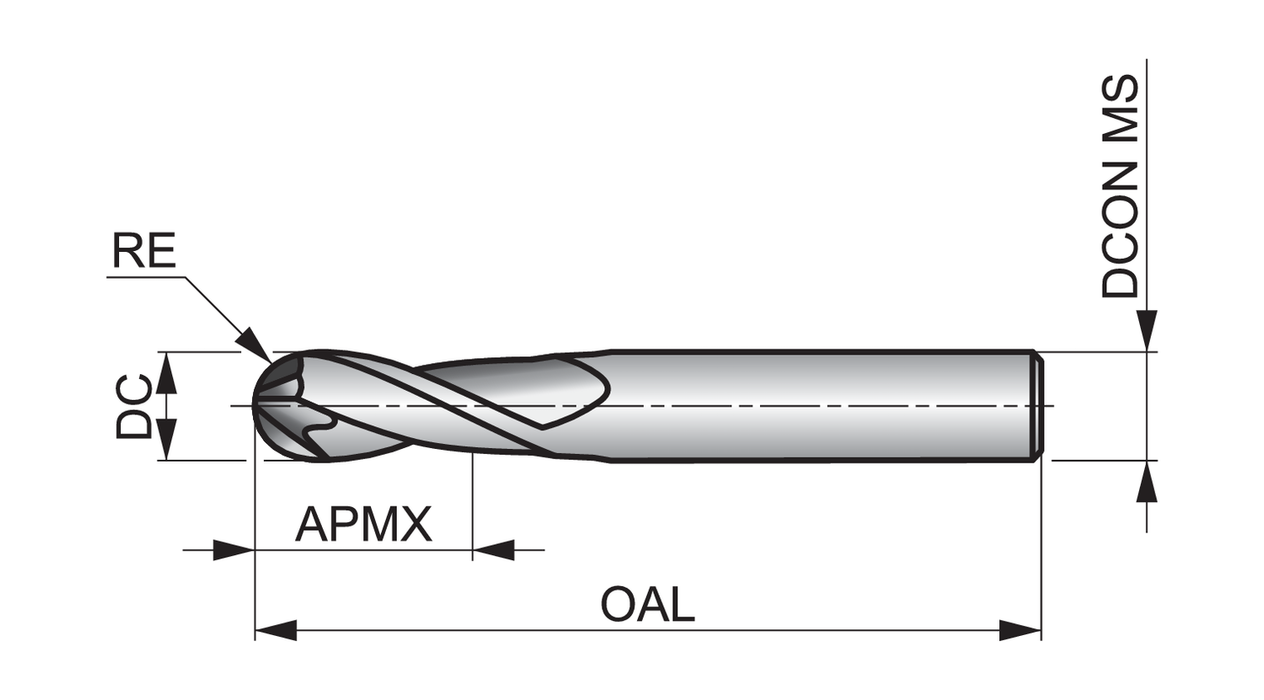

Material: HM

Cutting Diameter - in (DC): 0.3543

Cutting Diameter - mm (DC): 9.0

Overall Length (OAL): 2.7559

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Shank: Cylindrical shank

Grade: Bright

Corner Radius - in: 0.177

Corner Radius - mm: 4.5

Cutting Edge Count: 2

EDP: 7648617

EAN: 7320760846643

MFG Part Number: 7648617
