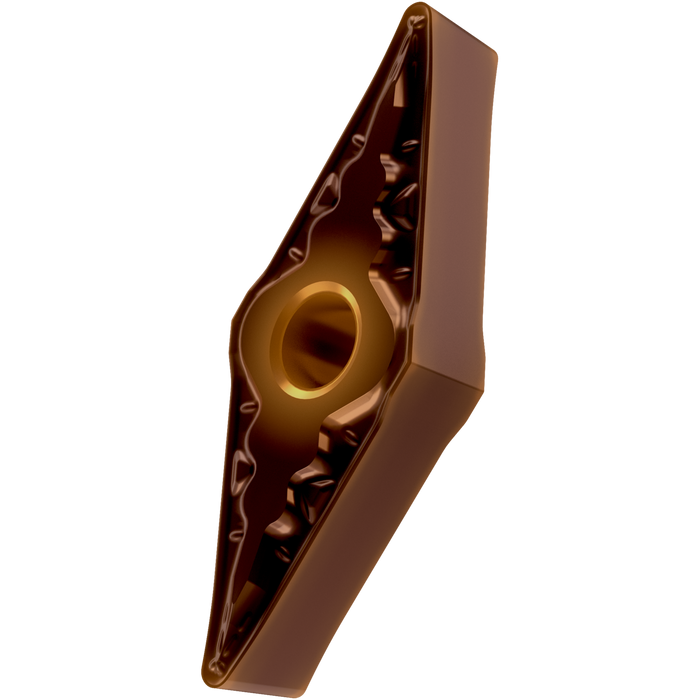

VNMG 332-FM:T8430

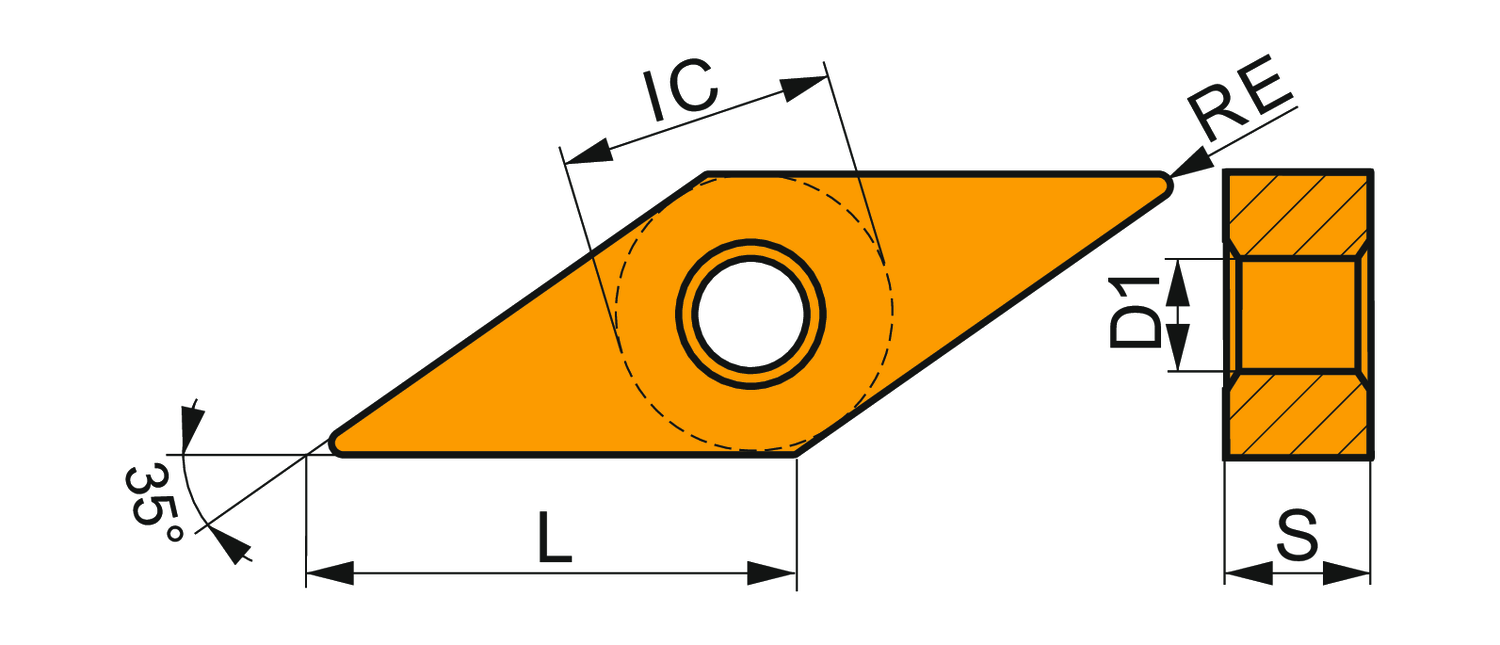

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.375
Coating: T8430
Chip Breaker: FM
Insert Design: VNMG
Corner Radius (IN): 0.031
