G7029/16

G7029/16

SKU DOR8203186
by Dormer Pramet
Primary Use: Possible Use:

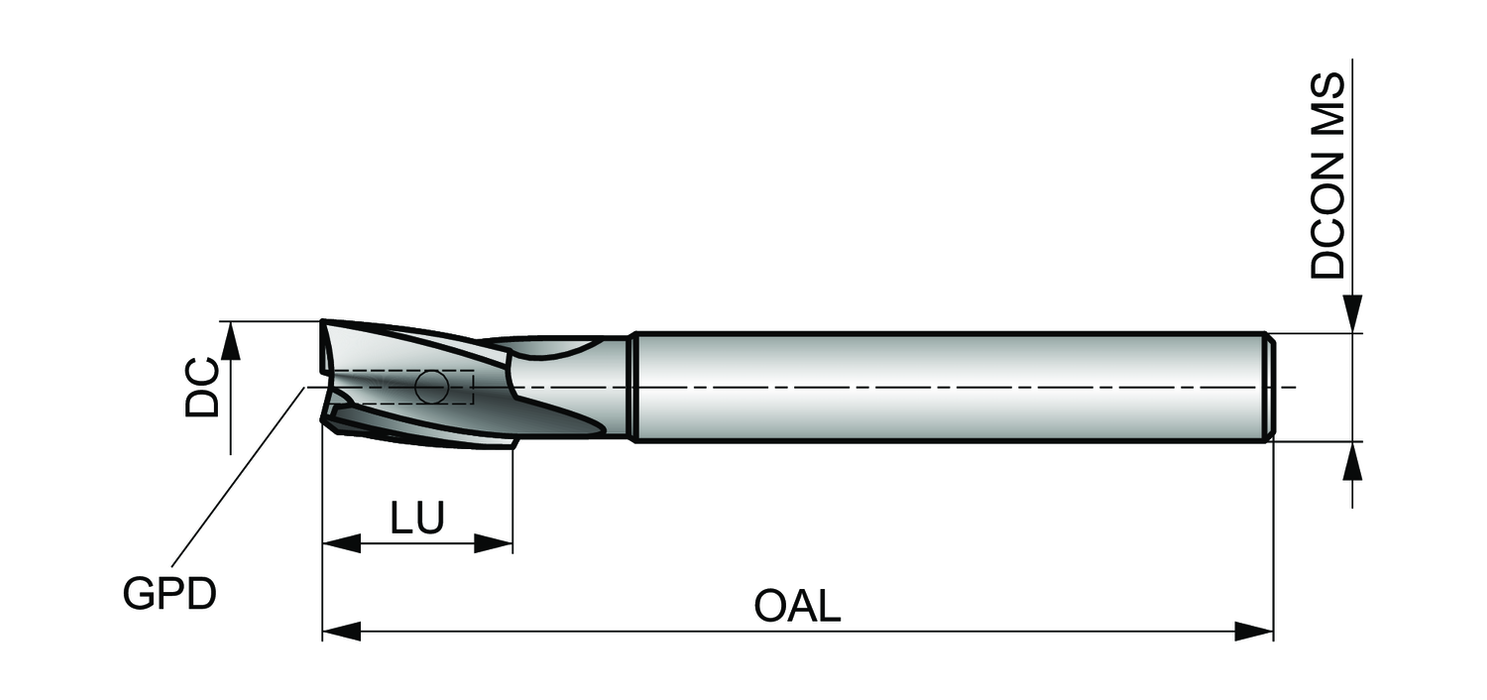

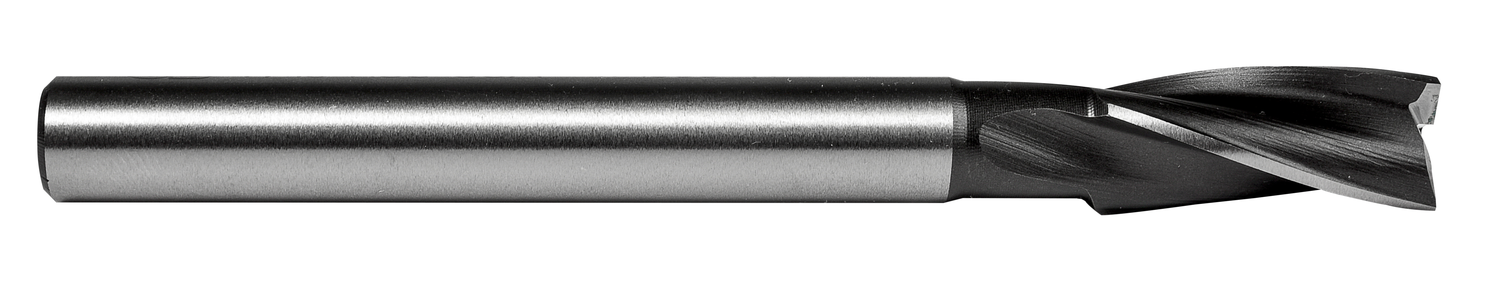

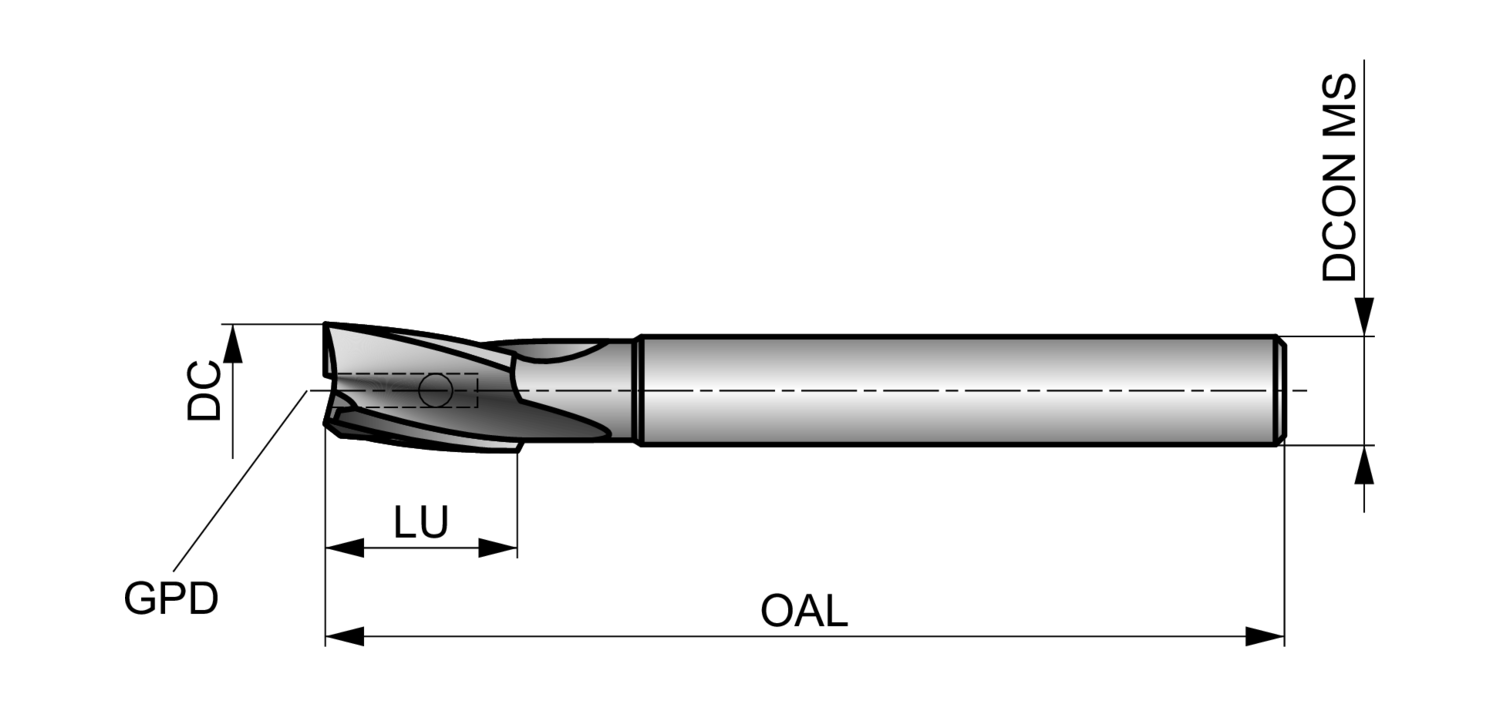

Interchangeable pilot type counterbore body with 3-flutes, diameter 9/16" with an overall length of 4.5/16" and a flute length of 1.1/4" and 1/2" straight shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 3/16" and a maximum pilot guide diameter of 1/2", HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$118.40 - $118.40
$118.40
$118.40 - $118.40
$118.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.5625

Cutting Diameter - mm (DC): 14.29

Overall Length (OAL): 4.3125

Connetion Diameter: 0.5

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/16

Grade: Bright

EDP: 8203186

EAN: 3603607031445

MFG Part Number: 8203186
