WNMG 331-M:T9415
SKU DOR8345606
by Pramet

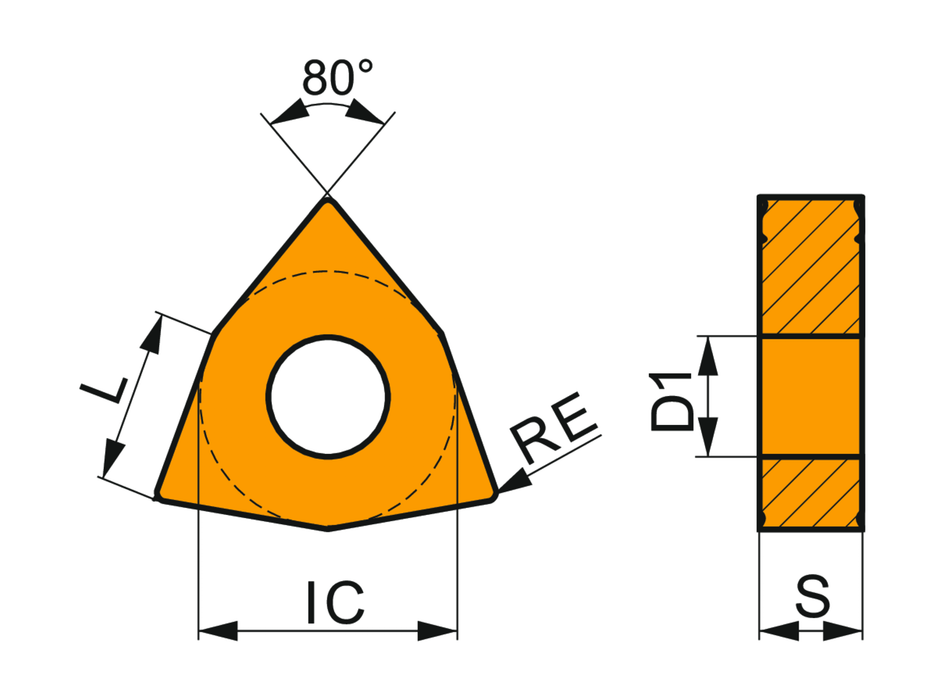

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to heavy machining of steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$10.88
-
Original price
$10.88
Original price
$10.88
$10.88
-
$10.88
Current price
$10.88
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.375
Corner Radius - Inch: 0.016
Corner Radius - MM: 0.4
Grade: T9415
Chip Breaker: M
Insert Design: WNMG
P - Steel and cast steel: Primary use
K - Cast Iron: Possible use
H - Hardened materials: Possible use
EAN: 3603604109239
MFG Part Number: 8345606
